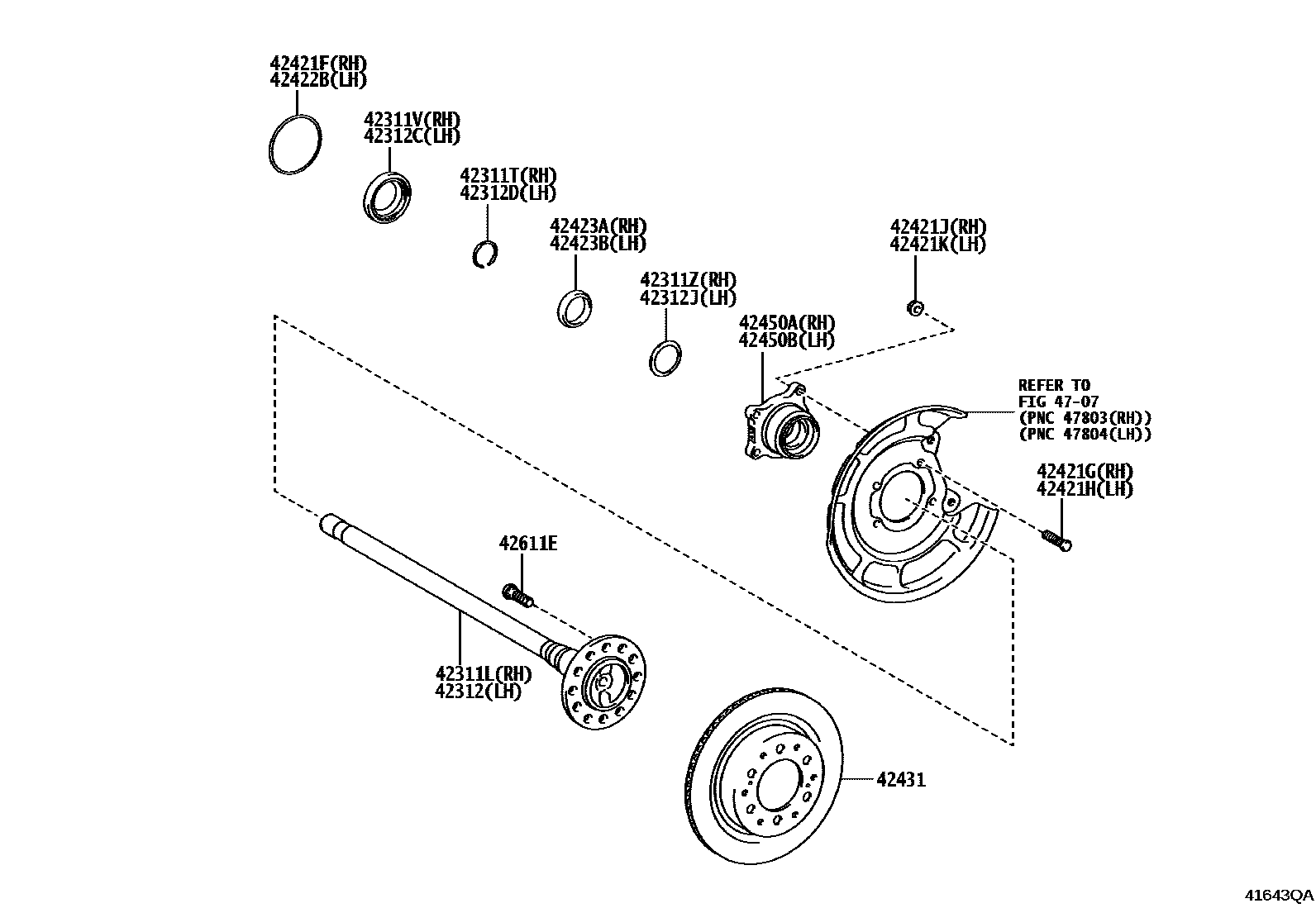

REAR AXLE SHAFT & HUB

42311LSHAFT, REAR AXLE, RH

main42311-AK030iTZNA4#202312

main42311-AK040iTZNH47202404

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-41019iTZNA4#,TZNH47202312

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-58003iTZNA4#,TZNH47202312

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-44001iTZNA4#,TZNH47202312

42312SHAFT, REAR AXLE, LH

main42311-AK030iTZNA4#202312

main42311-AK040iTZNH47202404

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-58003iTZNA4#,TZNH47202312

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-41019iTZNA4#,TZNH47202312

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-44001iTZNA4#,TZNH47202312

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-A0015iTZNA4#,TZNH47202312

42421GBOLT (FOR REAR AXLE BEARING CASE RH NO.2)

main90114-A0004×4iTZNA4#,TZNH47202312

42421HBOLT (FOR REAR AXLE BEARING CASE LH NO.2)

main90114-A0004×4iTZNA4#,TZNH47202312

42421JNUT (FOR REAR AXLE BEARING CASE RH)

main90178-A0057×4iTZNA4#,TZNH47202312

42421KNUT (FOR REAR AXLE BEARING CASE LH)

main90178-A0057×4iTZNA4#,TZNH47202312

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-A0015iTZNA4#,TZNH47202312

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-60050iTZNA4#,TZNH47202312

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-60050iTZNA4#,TZNH47202312

42431DISC, REAR

main42431-04090×2iTZNH47202404

main42431-04100×2iTZNA4#202312

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-AK010iTZNA4#,TZNH47202312

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-AK010iTZNA4#,TZNH47202312

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02083×12iTZNA4#,TZNH47202312

4707REAR DISC BRAKE CALIPER & DUST COVER
