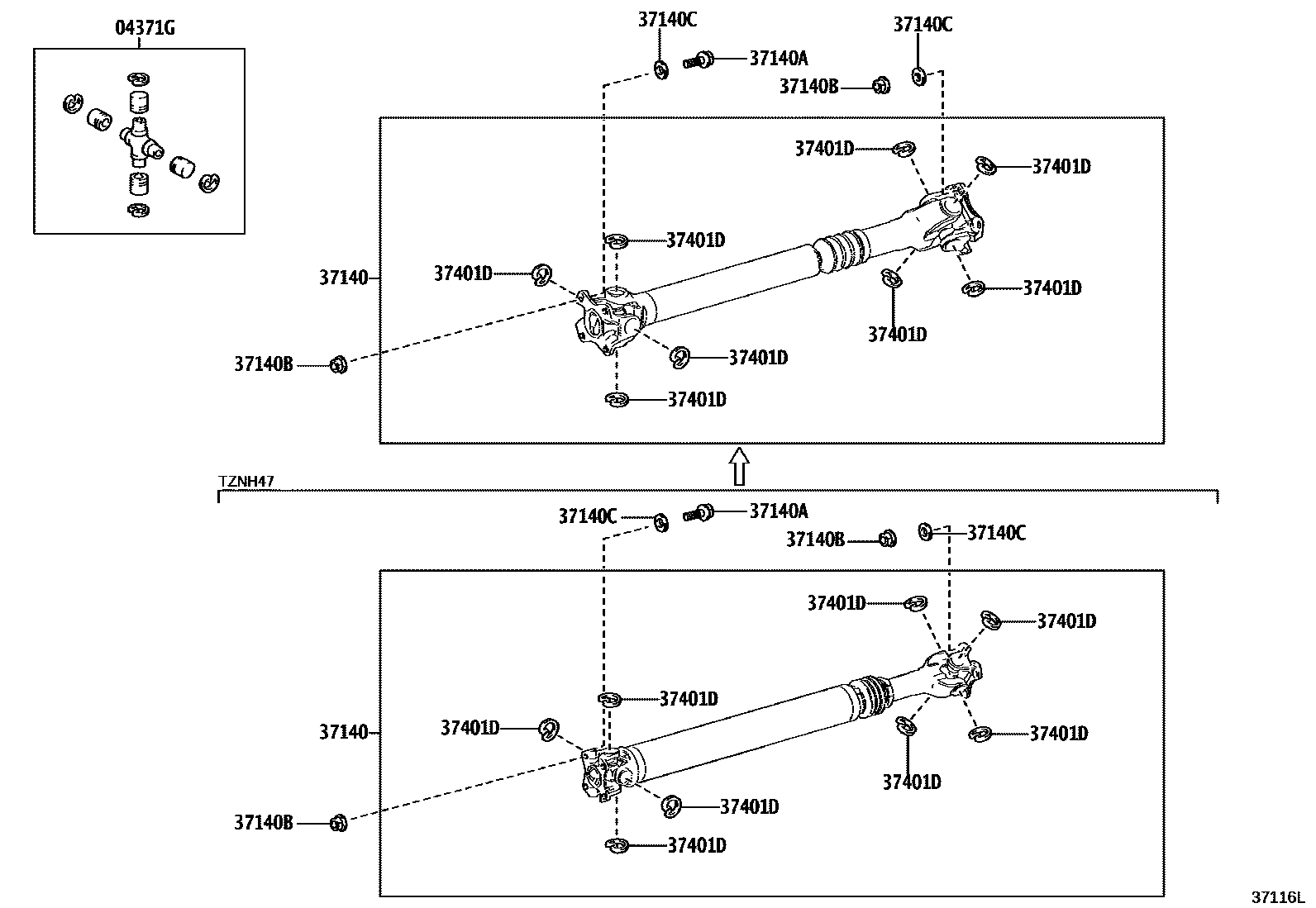

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1REAR, 2 JOINT 0003 1REAR, 3 JOINT 0004 1

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-04044×2iTZNA45,46202312

main04371-04120×2iTZNH47202404

37140SHAFT ASSY, PROPELLER, FRONT

main37140-AK010iTZNA45,46202312

main37140-AK030supersedes 37140-AK041iTZNH47202404-202407

TRAILHUNTER PACKAGE

main37140-AK031supersedes 37140-AK041iTZNH47202408

TRAILHUNTER PACKAGE

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-A0075×4iTZNA45,46,TZNH47202404

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-A0045×8iTZNA45,46,TZNH47202404

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-11013×8iTZNA45,46,TZNH47202404

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90080-52038×8iTZNA45,46,TZNH47202312

T=1.64,BLUE

main90080-52039×8iTZNA45,46,TZNH47202312

T=1.59,YELLOW

main90080-52040×8iTZNA45,46,TZNH47202312

T=1.54,SILVER

main90080-52041×8iTZNA45,46,TZNH47202312

T=1.49,COPPER

main90080-52042×8iTZNA45,46,TZNH47202312

T=1.51,BLACK

6 parts on this diagram · 4 diagrams in section
