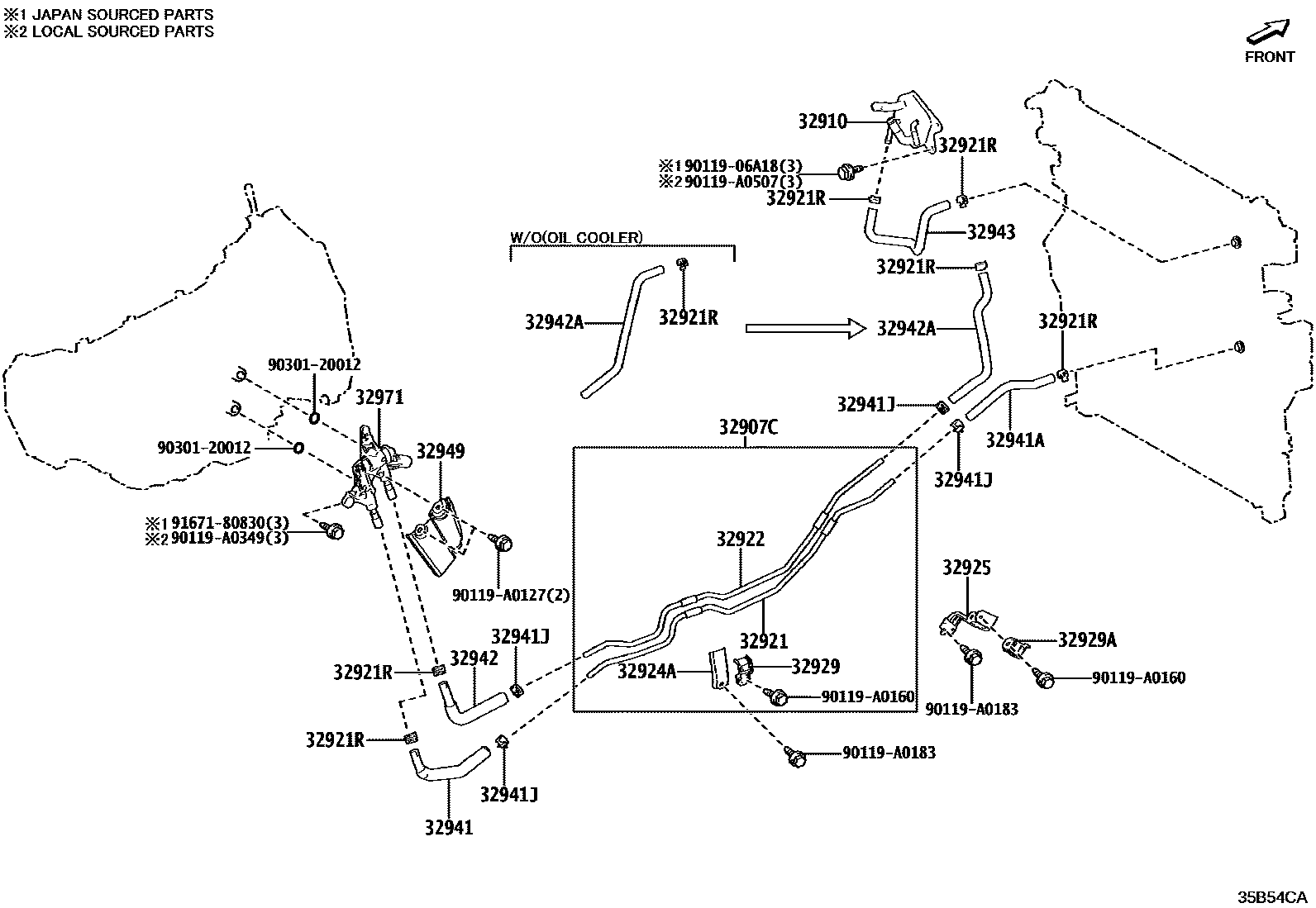

OIL COOLER & TUBE (ATM)

0001 1AL80E,AL80F 0002 1L580F

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-AK010iTZNA4#..8FC202312

main32907-AK020iTZNH47202404

32910COOLER ASSY, OIL

main32910-AK010iTZNH47202404

32921TUBE, OIL COOLER INLET, NO.1

main32921-AK010iTZNA4#..8FC202312

main32921-AK020iTZNH47202404

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-A0014×6iTZNH47202404

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-AK010iTZNA4#..8FC202312

main32922-AK020iTZNH47202404

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32924-AK010iTZNA4#,TZNH47..ATM,CVT202312

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-AK010iTZNA4#,TZNH47..ATM,CVT202312

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-04050iTZNA4#,TZNH47..ATM,CVT202312

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32929-04050iTZNA4#,TZNH47..ATM,CVT202312

32941HOSE, OIL COOLER INLET, NO.1

main32941-AK010iTZNA4#,TZNH47..ATM,CVT202312

32941AHOSE, OIL COOLER INLET, NO.2

main32941-AK020iTZNA4#,TZNH47..ATM,CVT202312

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-A0014×4iTZNA4#,TZNH47..ATM,CVT202312

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-AK010iTZNA4#,TZNH47..ATM,CVT202312

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-AK020iTZNH47202404

main32942-AK040iTZNA4#..8FC202312

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-AK010iTZNH47202404

32949INSULATOR, OIL COOLER HOSE HEAT

main32949-AK010iTZNA4#,TZNH47..ATM,CVT202312

32971THERMOSTAT, TRANSMISSION OIL

main32971-AK010iTZNA4#,TZNH47..ATM,CVT202312

9011906A18

main90119-06A18

90119A0127

main90119-A0127

90119A0160

main90119-A0160

90119A0183

main90119-A0183

90119A0349

main90119-A0349

90119A0507

main90119-A0507

9030120012

main90301-20012

9167180830

main91671-80830

25 parts on this diagram · 2 diagrams in section
