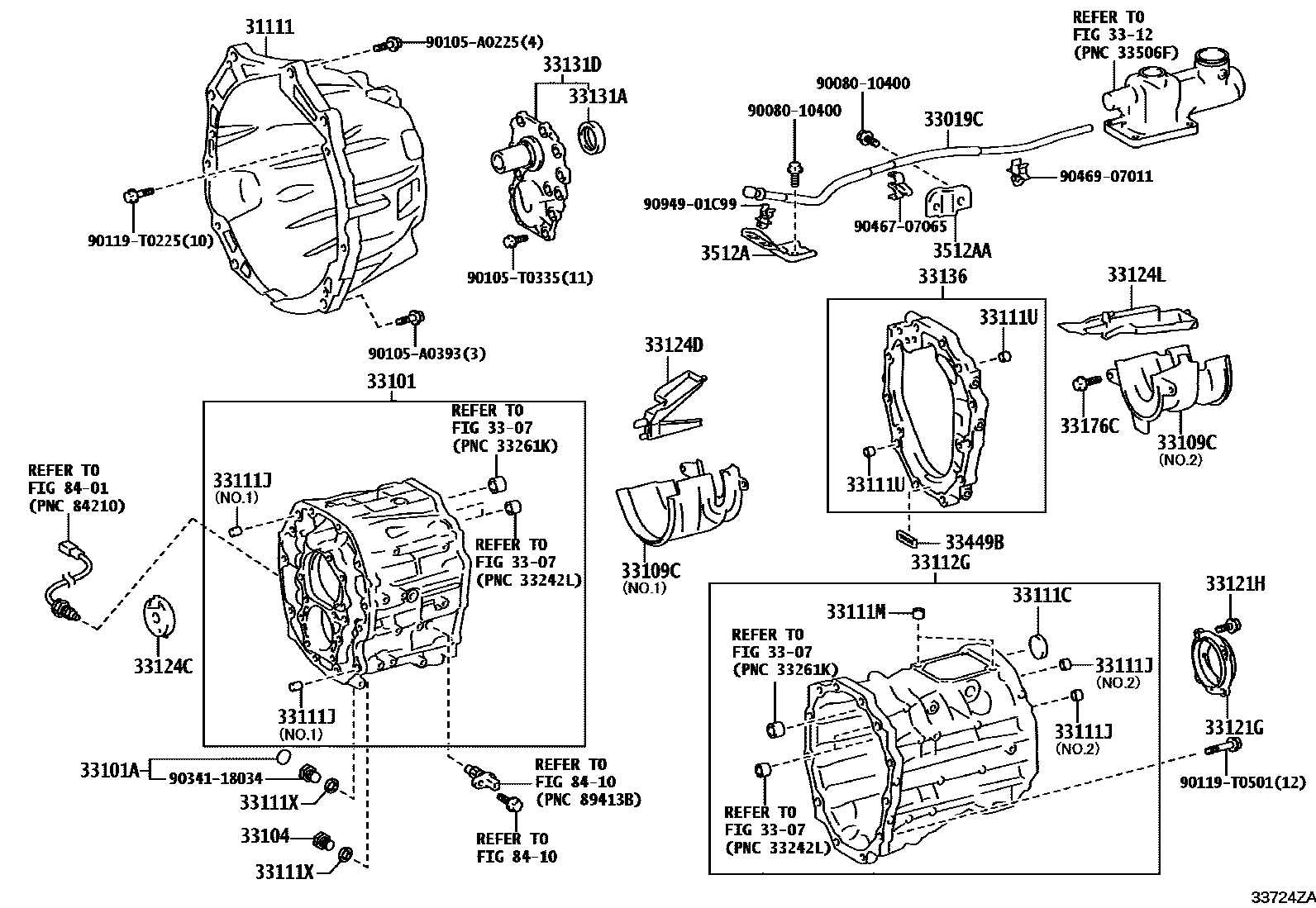

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
33019CBREATHER SUB-ASSY, TRANSMISSION
3307
33101CASE SUB-ASSY, MANUAL TRANSMISSION
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33104PLUG SUB-ASSY, DRAIN(MTM)
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33111CPLUG(FOR TRANSMISSION CASE)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11,NO.2:REFER ILLUST.
L=16,OD=12,NO.1:REFER ILLUST.
33111MPIN, RING(FOR TRANSMISSION CASE)
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=14,OD=15
33111XGASKET, TRANSMISSION CASE PLUG
33112GCASE, TRANSMISSION, REAR
3312
33121GCOVER, MANUAL TRANSMISSION CASE
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124LPIPE, OIL RECEIVER, N0.3(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33131DRETAINER, BEARING, FRONT
33136PLATE, TRANSMISSION INTERMEDIATE
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
33449BMAGNET, TRANSMISSION
3512ABRACKET, TRANSMISSION BREATHER, NO.1
3512AABRACKET, TRANSMISSION BREATHER, NO.2
8401
8410
9008010400
main90080-10400
90105A0225
main90105-A0225
90105A0393
main90105-A0393
90105T0335
main90105-T0335
90119T0225
main90119-T0225
90119T0501
main90119-T0501
9034118034
main90341-18034
9046707065
main90467-07065
9046907011
main90469-07011
9094901C99
main90949-01C99
38 parts on this diagram · 1 diagram in section
