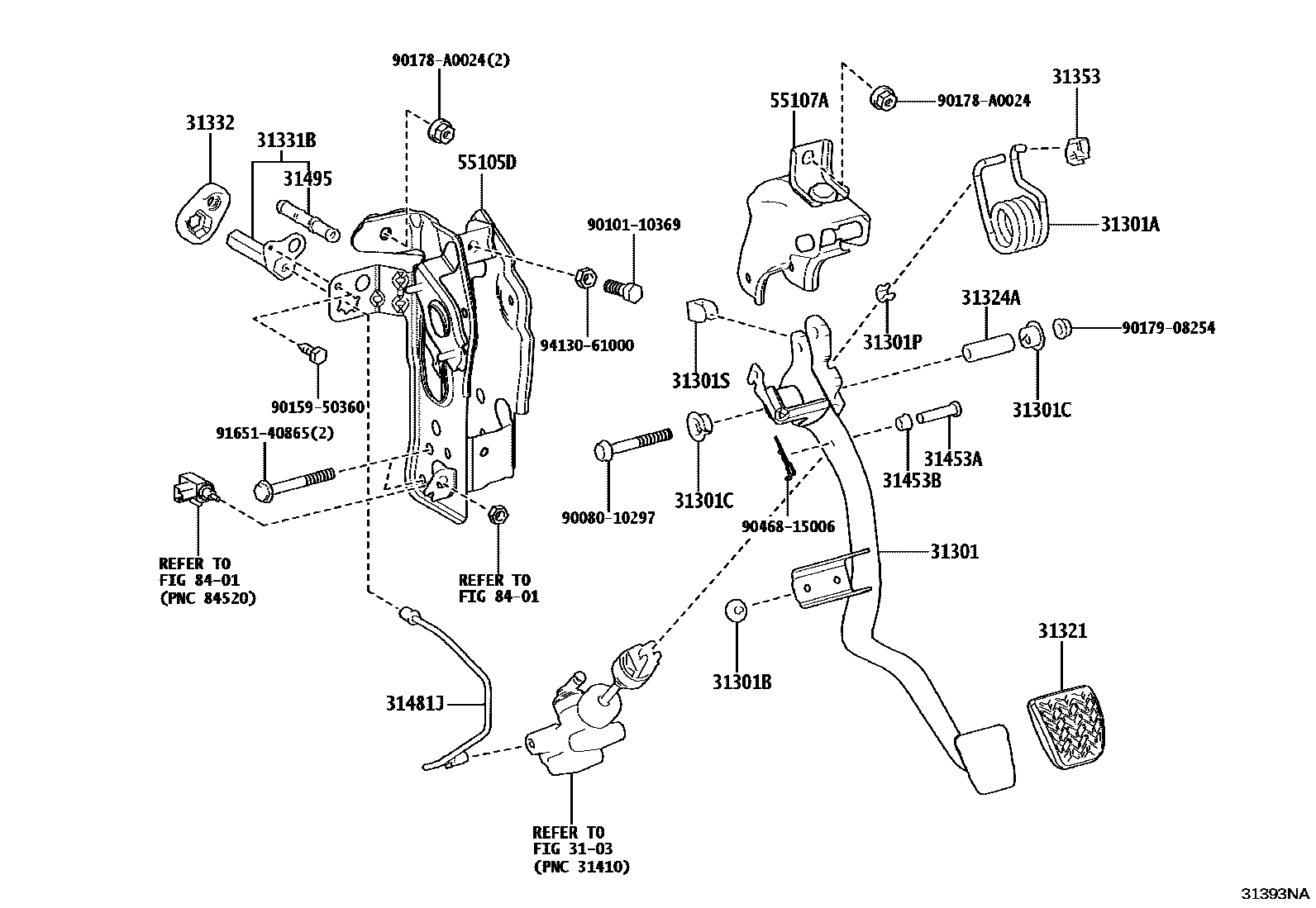

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1CLUTCH PEDAL 0002 1CLUTCH PIPING

3103CLUTCH MASTER CYLINDER

→ Go to FIG 31-03

31301PEDAL SUB-ASSY, CLUTCH

main31301-AK010iTZNA45..6F202312

31301ASPRING(FOR CLUTCH PEDAL)

main90508-A0018iTZNA45..6F202312

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90080-54033iTZNA45..6F202312

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015iTZNA45..6F202312

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iTZNA45..6F202312

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06063iTZNA45..6F202312

31321PAD, CLUTCH PEDAL

main31321-AK030iTZNA45..6F202312

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iTZNA45..6F202312

31331BWAY, CLUTCH PEDAL SUPPORT

main31331-AK010iTZNA45..6F202312

31332GROMMET, CLUTCH PEDAL SUPPORT

main31332-60010iTZNA45..6F202312

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iTZNA45..6F202312

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iTZNA45..6F202312

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iTZNA45..6F202312

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-AK020iTZNA45..6F202312

31481JTUBE, CLUTCH MASTER CYLINDER TO 2 WAY

main31481-AK010iTZNA45..6F202312

31495WAY, CLUTCH TUBE

main31495-60100iTZNA45..6F202312

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-AK011iTZNA45..6F202312

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-AK040iTZNA45..6F202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010297

main90080-10297

9010110369

main90101-10369

9015950360

main90159-50360

90178A0024

main90178-A0024

9017908254

main90179-08254

9046815006

main90468-15006

9165140865

main91651-40865

9413061000

main94130-61000

28 parts on this diagram · 2 diagrams in section
