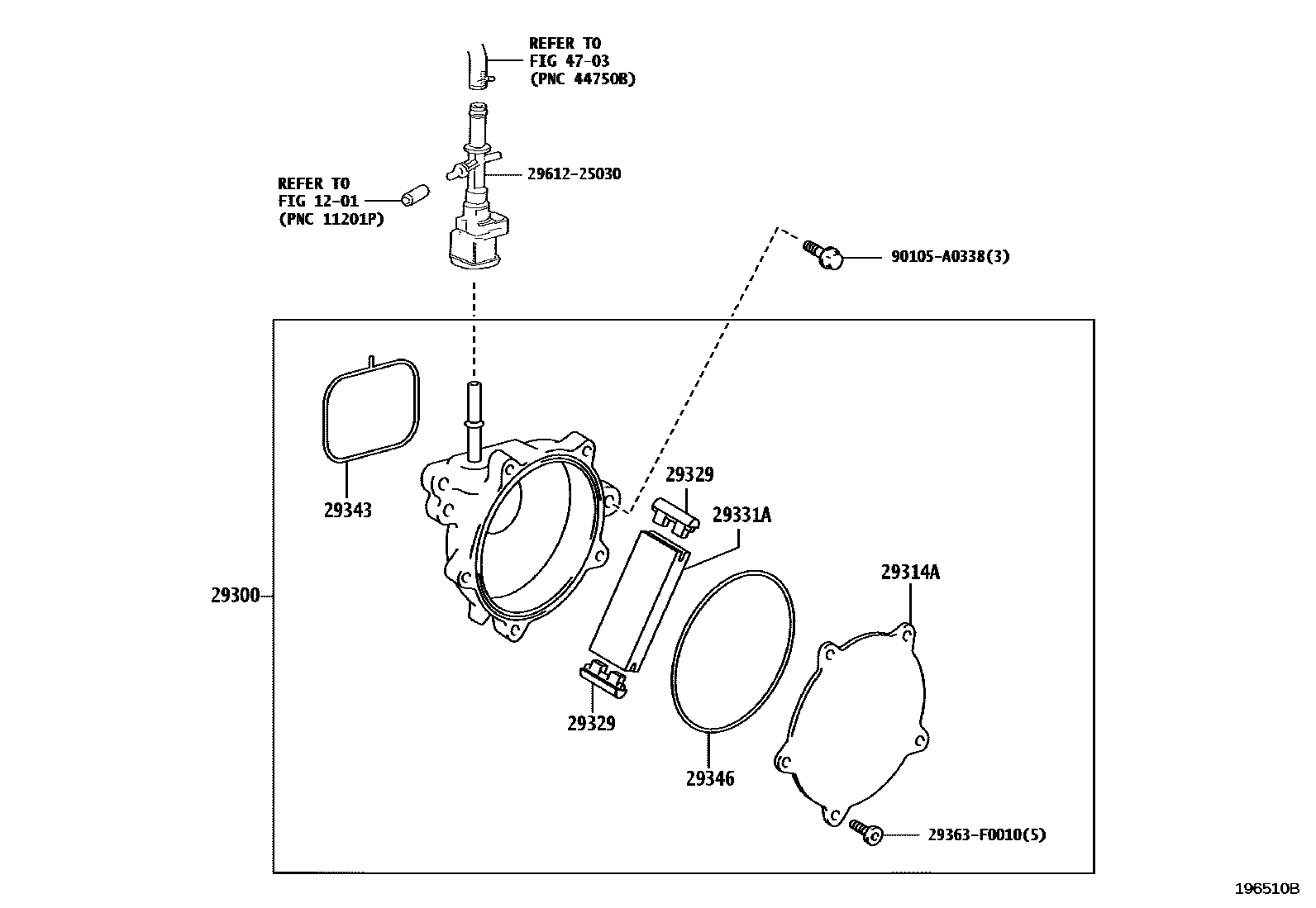

VACUUM PUMP

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

29300PUMP ASSY, VACUUM

main29300-F0012iT24..TZNA4#,TZNH47202312

29314ACOVER, END

main29314-F0010iT24..TZNA4#,TZNH47202312

29329CAP, VACUUM PUMP VANE

main29329-F0011iT24..TZNA4#,TZNH47202312

29331AVANE, VACUUM PUMP

main29331-F0010iT24..TZNA4#,TZNH47202312

29343RING, O VACUUM PUMP, NO.1

main29343-F0010iT24..TZNA4#,TZNH47202312

29346RING, O VACUUM PUMP COVER

main29346-F0010iT24..TZNA4#,TZNH47202312

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

2961225030CONNECTOR, VACUUM PUMP

main29612-25030

90105A0338

main90105-A0338

11 parts on this diagram · 2 diagrams in section
