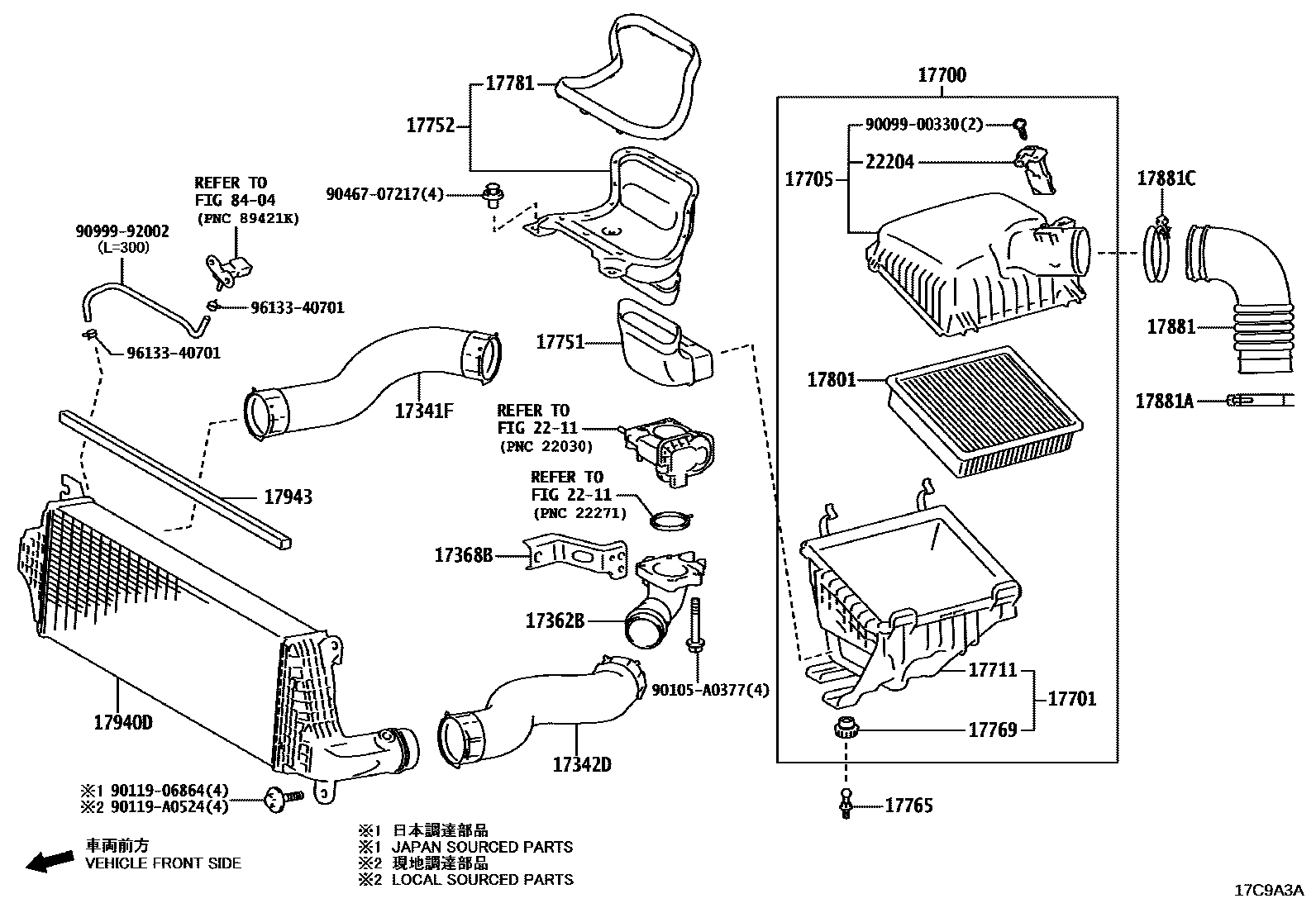

AIR CLEANER
17341FHOSE, AIR, NO.1
17342DHOSE, AIR, NO.2
17362BTUBE, AIR, NO.2
17368BSUPPORT, AIR TUBE
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17711CASE, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17765STAY, AIR CLEANER, NO.1
17769SUPPORT, AIR CLEANER
17781SEAL, AIR CLEANER INLET
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17940DINTERCOOLER ASSY
17943PROTECTOR, INTERCOOLER
2211FUEL INJECTION SYSTEM
22204METER SUB-ASSY, INTAKE AIR FLOW
8404ELECTRONIC FUEL INJECTION SYSTEM
9009900330
main90099-00330
90105A0377
main90105-A0377
9011906864
main90119-06864
90119A0524
main90119-A0524
9046707217
main90467-07217
9099992002
main90999-92002
9613340701
main96133-40701
29 parts on this diagram · 2 diagrams in section
