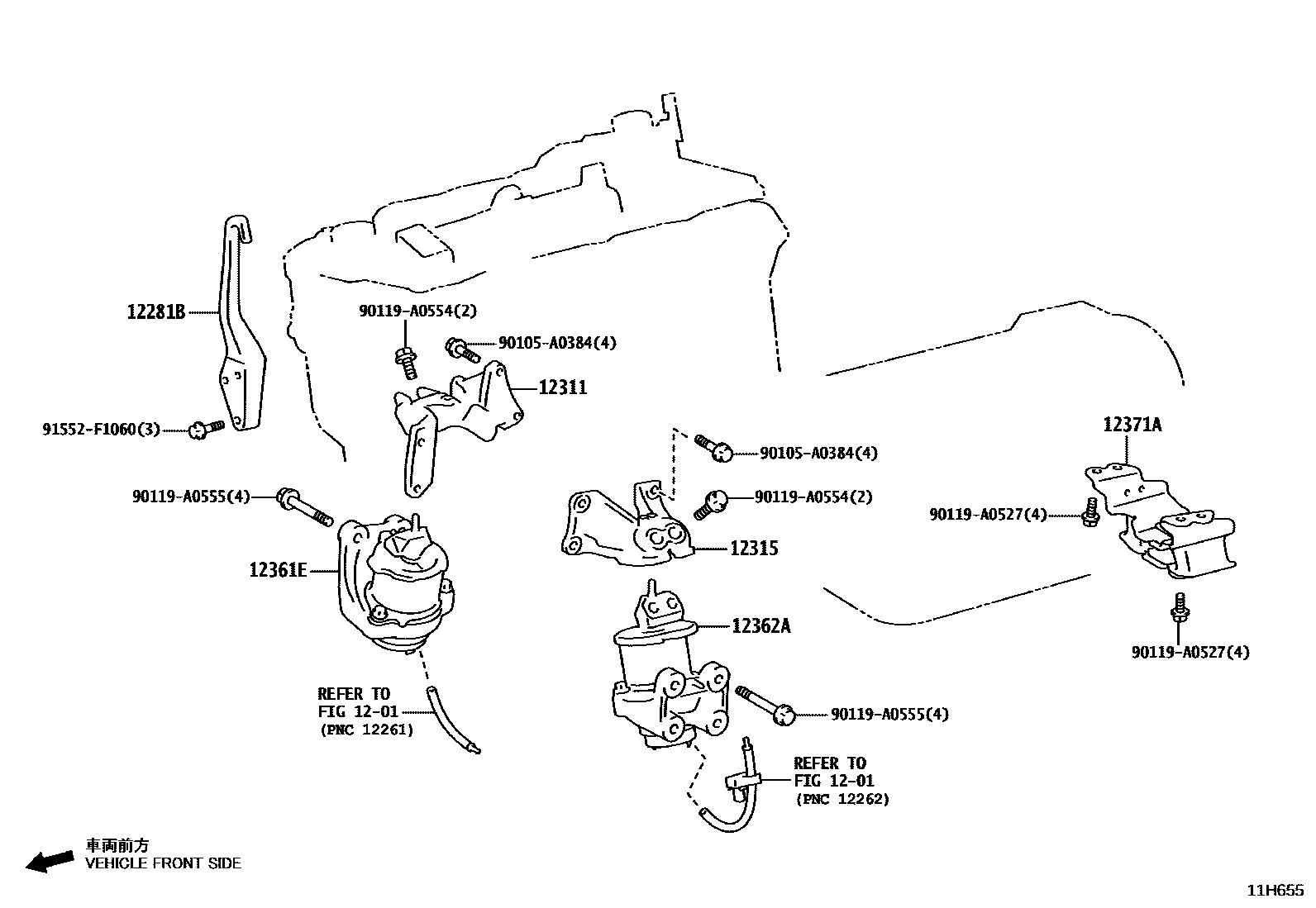

MOUNTING

1201VENTILATION HOSE

→ Go to FIG 12-01

12281BHANGER, ENGINE, NO.1

main12281-25110iT24..TZNA4#,TZNH47202312

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-F0170iT24..TZNA4#,TZNH47202312

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-F0050iT24..TZNA4#,TZNH47202312

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-F0240iT24..TZNH47202404

main12361-F0250iT24..TZNA40,45202312

main12361-F0260iT24..TZNA41,46202312

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-F0020iT24..TZNH47202404

main12362-F0030iT24..TZNA40,45202312

main12362-F0040iT24..TZNA41,46202312

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-F0280iT24..TZNA45,46202312

main12371-F0290iT24..TZNA40,41202312

main12371-F0300iT24..TZNH47202404

90105A0384

main90105-A0384

90119A0527

main90119-A0527

90119A0554

main90119-A0554

90119A0555

main90119-A0555

91552F1060

main91552-F1060

12 parts on this diagram · 1 diagram in section
