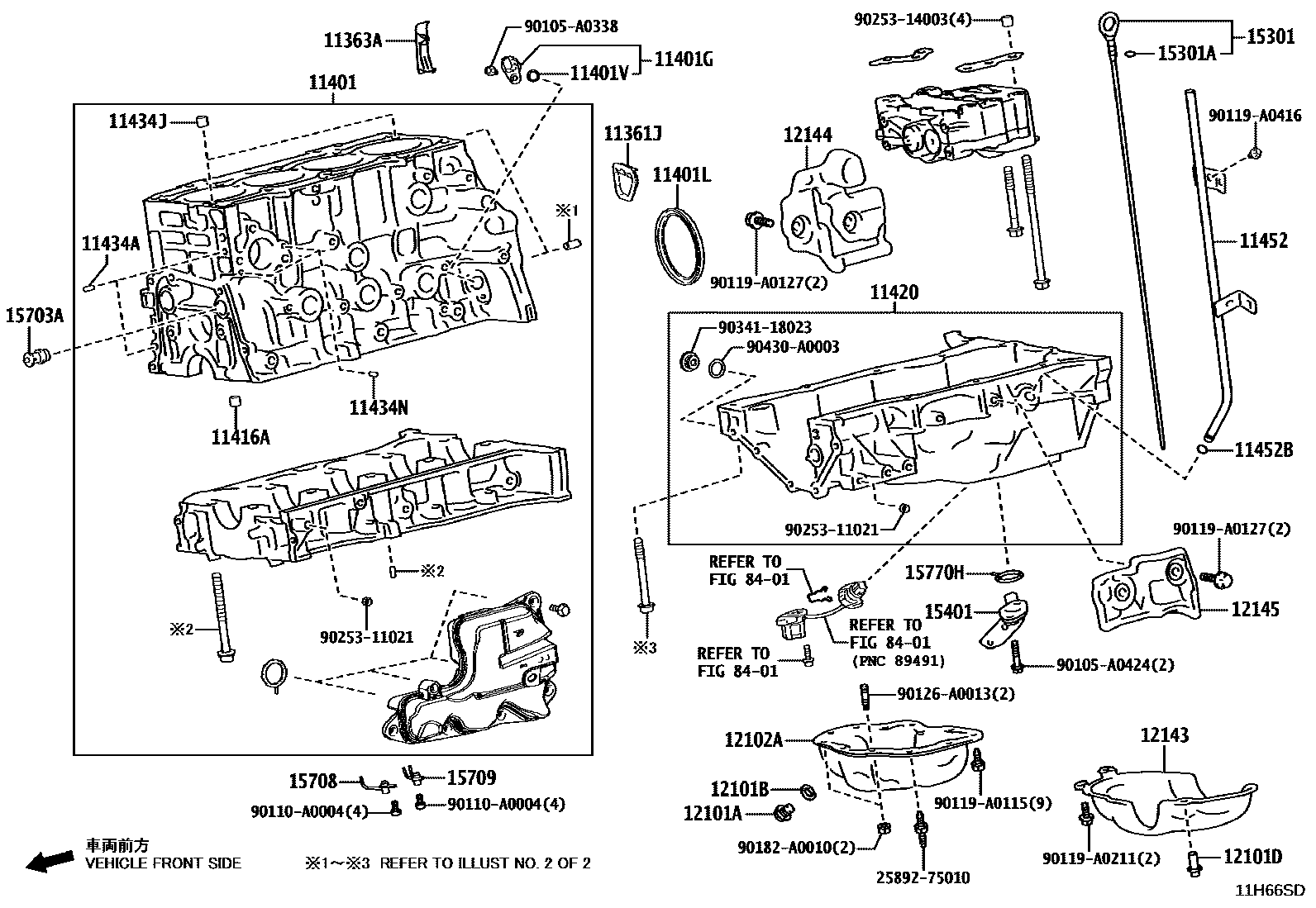

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
NO.2
NO.1
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101DPLUG NO.1(FOR OIL PAN)
12102APAN SUB-ASSY, OIL, NO.2
12143COVER, OIL PAN
12144SILENCER, OIL PAN COVER
12145SILENCER, OIL PAN COVER, NO.2
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15401PIPE SUB-ASSY, OIL PUMP INLET
15703AVALVE SUB-ASSY, OIL NOZZLE
15708NOZZLE SUB-ASSY, OIL, NO.1
15709NOZZLE SUB-ASSY, OIL, NO.2
15770HGASKET(FOR OIL PIPE)
8401SWITCH & RELAY & COMPUTER
2589275010
main25892-75010
90105A0338
main90105-A0338
90105A0424
main90105-A0424
90110A0004
main90110-A0004
90119A0115
main90119-A0115
90119A0127
main90119-A0127
90119A0211
main90119-A0211
90119A0416
main90119-A0416
90126A0013
main90126-A0013
90182A0010
main90182-A0010
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
90430A0003
main90430-A0003
43 parts on this diagram · 2 diagrams in section
