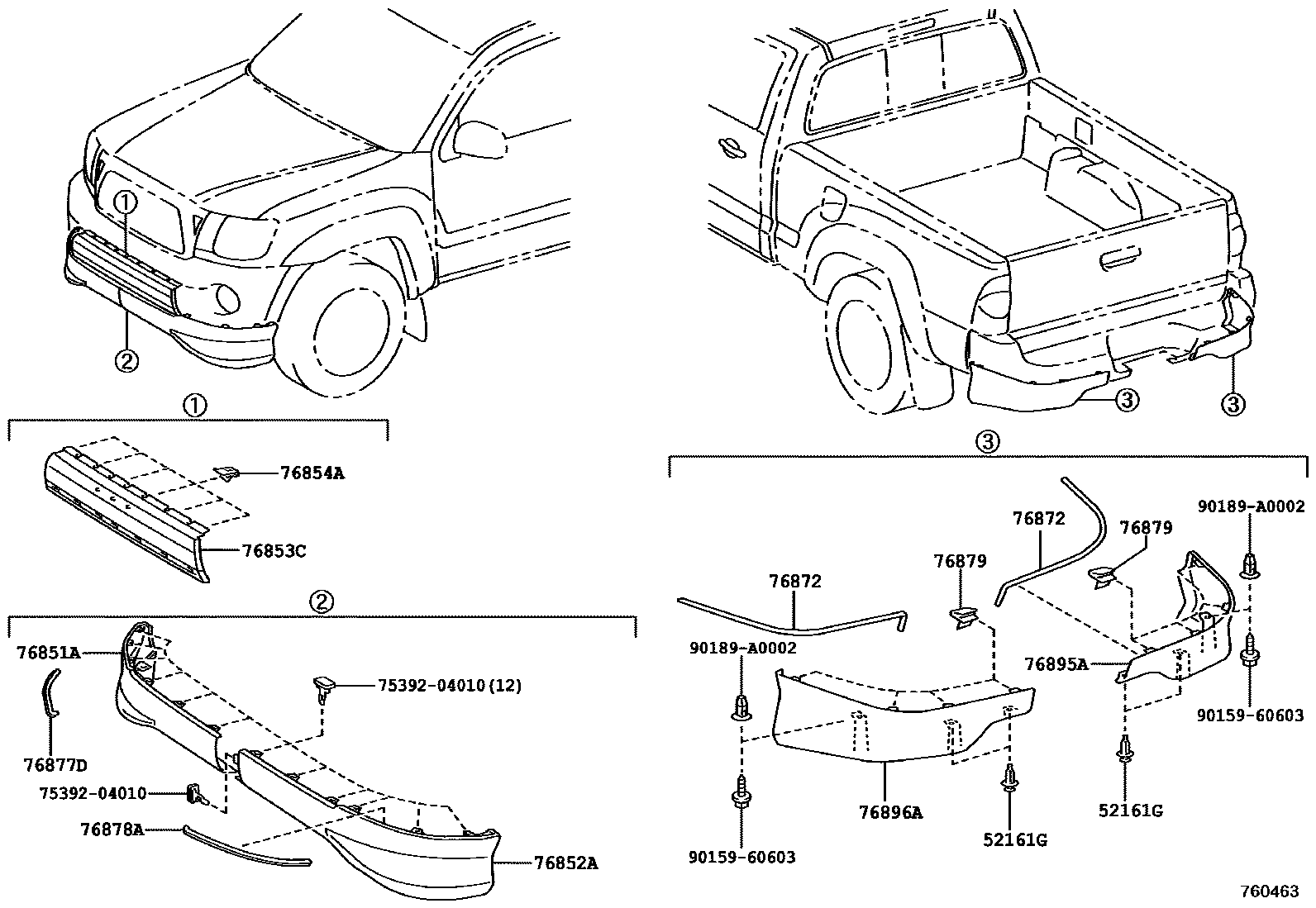

SPOILER & SIDE MUDGUARD

0001 1 0002 1MUDGUARD 0003 1BUMPER SPOILER 0004 1

52161GPIECE, REAR BUMPER

main52161-02020×4iGRN225200409-200805

76851ACOVER, FRONT SPOILER, RH

main76851-04902iGRN225200409-200805

main76851-04903iGRN225201109-201508

76852ACOVER, FRONT SPOILER, LH

main76852-04902iGRN225200409-200805

main76852-04903iGRN225201109-201508

76853CRETAINER, FRONT SPOILER, NO.1

main76853-04010iGRN225200409-200805

76854ARETAINER, FRONT SPOILER, NO.2

main76854-44010×6iGRN225200409-200805

76872PROTECTOR, REAR SPOILER, NO.1

main76872-04010×2iGRN225201109-201508

76877DPROTECTOR, FRONT SPOILER SIDE, RH

main76877-04010iGRN225200805-201109

76878APROTECTOR, FRONT SPOILER SIDE, LH

main76878-04010iGRN225200409-200805

76879CLIP, REAR SPOILER, NO.1

main76879-04010×8iGRN225201109-201508

76895ASPOILER, REAR BUMPER, RH

main76895-04901iGRN225200409-200805

76896ASPOILER, REAR BUMPER, LH

main76896-04901iGRN225201109-201508

7539204010RETAINER, OUTSIDE MOULDING

main75392-04010

9015960603

main90159-60603

90189A0002

main90189-A0002

14 parts on this diagram · 4 diagrams in section
