MOULDING

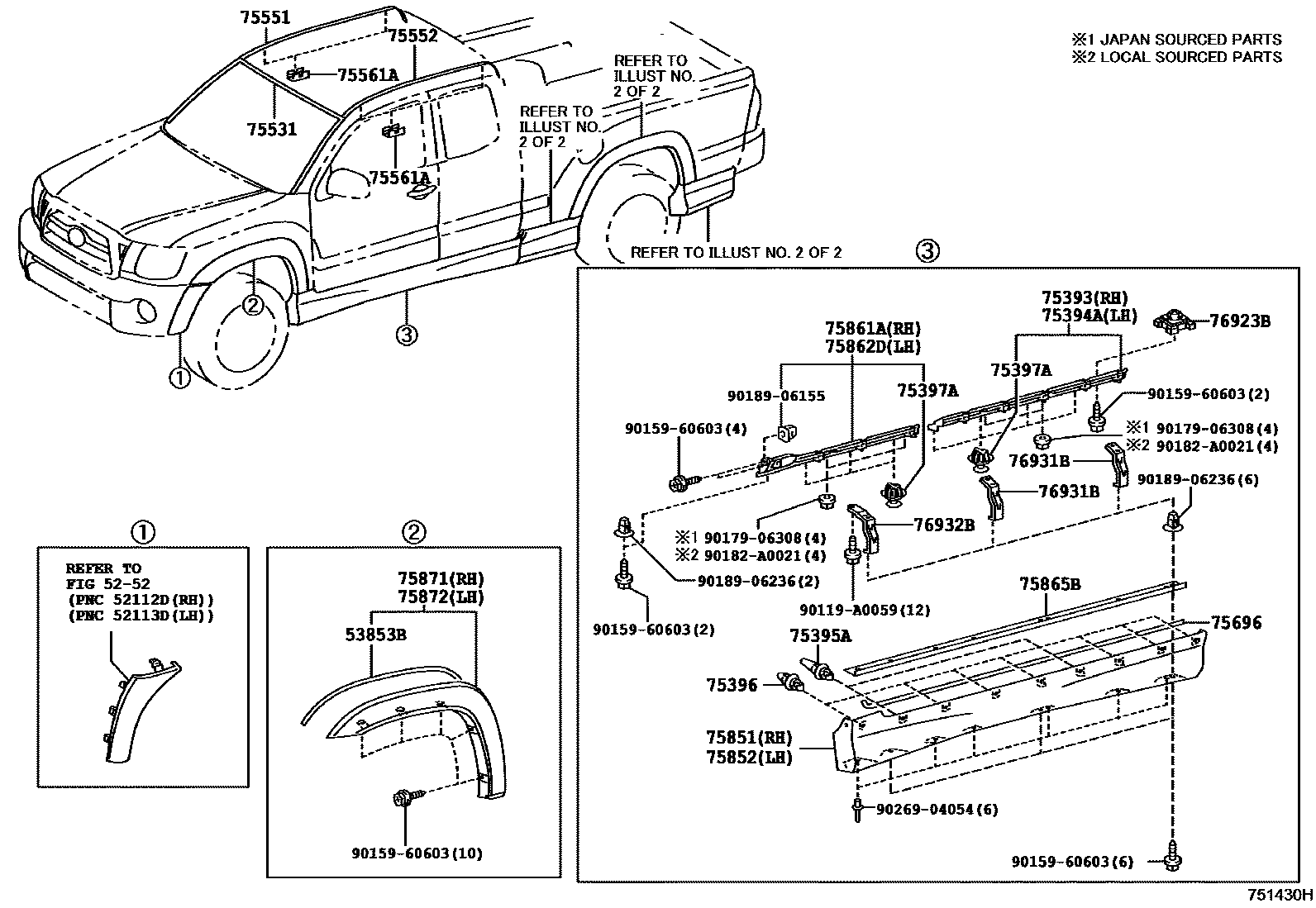

Parts diagram
5252FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-52
53853BPAD, FRONT WHEEL OPENING EXTENSION, NO.1
main53853-04040×2i201109-201408
main53853-04050×2i201109-201508
main53853-04070×2i201508-201711
main53853-35100×2i200409-200410
main53853-35110×2i200409-200410
75393RETAINER, OUTSIDE MOULDING, NO.2
main75393-04010i200409-200805
75394ARETAINER, OUTSIDE MOULDING, NO.3
main75394-04010i200409-200805
75395ACLIP, OUTSIDE MOULDING, NO.1
main75395-04010×4i200805-201109
main75395-35070×12i200805-201006
75396CLIP, OUTSIDE MOULDING, NO.2
main75396-04010×14i200409-200805
main75396-35020×22i201508-201711
75397ACLIP, OUTSIDE MOULDING, NO.3
main75397-04010×16i200409-200805
75531MOULDING, WINDSHIELD, OUTER UPPER
main75531-04060i200409-200508
main75531-04070i200508-200701
main75531-04080i200701-200711
main75531-04081i200805-201006
main75531-04030i200611-200711
CANADA SPEC
main75531-04031i201109-201508
CANADA SPEC
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-04040i200805-201006
NO PAINT REQ.
main75551-04041i201101-201109
NO PAINT REQ.
main75551-04050i200805-201006
NO PAINT REQ.
main75551-04051i201109-201508
NO PAINT REQ.
main75551-04060i200805-201012
NO PAINT REQ.
main75551-04061i201101-201109
NO PAINT REQ.
main75551-04062i201307-201403
NO PAINT REQ.
main75551-04063i201404-201508
NO PAINT REQ.
main75551-04070i201909-201912
NO PAINT REQ.
main75551-04071i202001-202008
NO PAINT REQ.
main75551-04072i202008
NO PAINT REQ.
main75551-04080i201909-201912
NO PAINT REQ.
main75551-04081i202001-202008
NO PAINT REQ.
main75551-04082i202008
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-04040i200805-201012
NO PAINT REQ.
main75552-04041i201101-201109
NO PAINT REQ.
main75552-04050i200805-201012
NO PAINT REQ.
main75552-04051i201101-201109
NO PAINT REQ.
main75552-04060i200805-201012
NO PAINT REQ.
main75552-04061i201101-201109
NO PAINT REQ.
main75552-04062i201307-201403
NO PAINT REQ.
main75552-04063i201404-201508
NO PAINT REQ.
main75552-04070i201508-201711
NO PAINT REQ.
main75552-04071i202001-202008
NO PAINT REQ.
main75552-04072i202008
NO PAINT REQ.
main75552-04080i201711-201909
NO PAINT REQ.
main75552-04081i202001-202008
NO PAINT REQ.
main75552-04082i202008
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-02020×4i201508-201711
main75561-08040×4i202004
75696PAD, BODY OUTSIDE MOULDING, NO.1
main75696-04030i201109-201508
RH
main75696-04040i200411-200805
LH
main75696-04050×2i201711-201909
TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM; TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY; WHEEL ARCH MOULDING-WITHOUT
main75696-35060i200409-200411
RH
main75696-35070i200409-200411
LH
75851MOULDING, ROCKER PANEL, RH
main75805-04901i201109-201508
75852MOULDING, ROCKER PANEL, LH
main75806-04901i200805-201109
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
main75861-04010i201109-201508
75862DRETAINER, ROCKER PANEL MOULDING, LH
main75862-04010i201109-201508
75865BRETAINER, ROCKER PANEL MOULDING, NO.2
main75865-04010×2i201109-201508
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75085-04050-C0i200409-200805
BLACK MC.,209
main75085-04050-C1i201006-201109
BLACK,202
main75085-04050-D0i200409-200805
RED,3L5
main75085-04050-D1i200805-201109
RED M.M.,3R3
main75085-04050-J0i200409-200805
BLUE ME.,8P1
main75085-04050-J1i201109-201309
DK.BLUE MC.,8S6
main75085-04050-J2i201309-201508
DK.BLUE MC.,8T5
main75871-04030i200805-201109
main75871-04060i201909
WHEEL ARCH MOULDING-WITH(COLORED)
main75871-04900i201508-201711
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75086-04050-C0i200805-201006
BLACK MC.,209
main75086-04050-C1i201109-201508
BLACK,202
main75086-04050-D0i200409-200805
RED,3L5
main75086-04050-D1i200805-201109
RED M.M.,3R3
main75086-04050-J0i200805-201109
BLUE ME.,8P1
main75086-04050-J1i201109-201309
DK.BLUE MC.,8S6
main75086-04050-J2i201309-201508
DK.BLUE MC.,8T5
main75872-04030i200805-201006
main75872-04060i201811-201909
TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM; TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY
main75872-04900i201711-201811
TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM; TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY; WHEEL ARCH MOULDING-WITHOUT
main75871-04060i202109-202312
WHEEL ARCH MOULDING-WITHOUT
76923BRETAINER, SIDE MUDGUARD
main76923-04010×2i200805-201109
76931BBRACKET, SIDE MUDGUARD, NO.1 RH
main76931-04010×4i200409-200805
76932BBRACKET, SIDE MUDGUARD, NO.1 LH
main76931-04020×2i201109-201508
90119A0059
main90119-A0059
9015960603
main90159-60603
9017906308
main90179-06308
90182A0021
main90182-A0021
9018906155
main90189-06155
9018906236
main90189-06236
9026904054
main90269-04054

29 parts on this diagram · 8 diagrams in section
