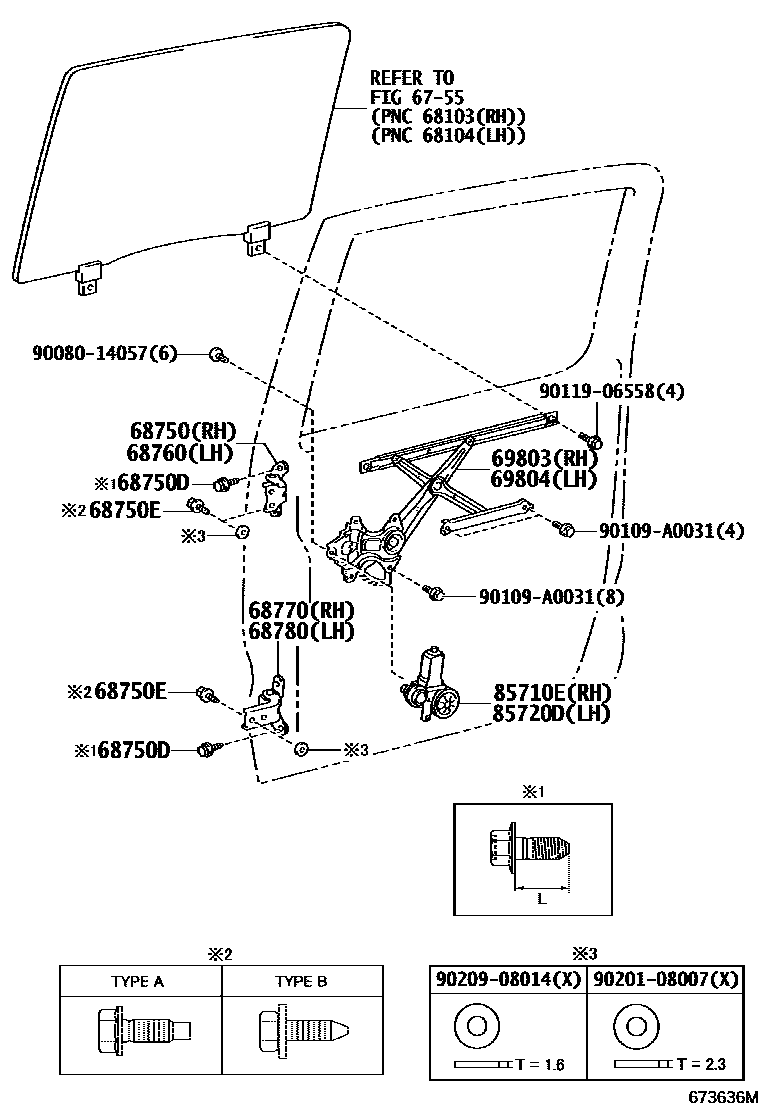

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-04010iGRN245,250,265,270,TRN225,265..DCB200805-201109

main68750-0C010iGRN305,325,TRN245,265..LCB201909

68750DBOLT NO.1(FOR REAR DOOR HINGE)

main90080-10212×8iGRN225,245,250,265,270,TRN225,245,265200409-200805

main90080-10384×8iGRN245,250,265,270,TRN225,265..DCB201109-201508

main90105-A0260iGRN305,325,TRN245,265..LCB201909-202103

main90105-A0282iGRN305,325,TRN245,265..LCB202104

68750EBOLT NO.2(FOR REAR DOOR HINGE)

main90105-A0235×8iGRN305,310,325,330,TRN245,265201711-201909

TYPE A:REFER ILLUST.

main90119-A0130×8iGRN305,310,325,330,TRN245,265201909

TYPE B:REFER ILLUST.

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-04010iGRN245,250,265,270..DCB200409-200805

main68760-0C010iGRN305,325,TRN245,265..LCB201909

68770HINGE ASSY, REAR DOOR, LOWER RH

main68760-0C010iGRN305,325,TRN245,265..LCB201508-201711

main68770-04010iGRN305,310,325,330,TRN265..DCB201711-201909

68780HINGE ASSY, REAR DOOR, LOWER LH

main68750-0C010iGRN225,245,265,TRN225,245,265..LCB200409-200805

main68780-04010iGRN245,250,265,270,TRN225,265..DCB201109-201508

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-04040iGRN245,250,265,270,TRN225,265..DCB201109-201508

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-04040iGRN245,250,265,270,TRN225,265..DCB200805-201109

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-04030iGRN305,310,325,330,TRN265..DCB201508-201711

main85710-AE010iGRN245,250,265,270..DCB200409-200805

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-04030iGRN305,310,325,330,TRN265..DCB201508-201711

main85720-AE010iGRN245,250,265,270..DCB200409-200805

9008014057

main90080-14057

90109A0031

main90109-A0031

9011906558

main90119-06558

9020108007

main90201-08007

9020908014

main90209-08014

16 parts on this diagram · 2 diagrams in section
