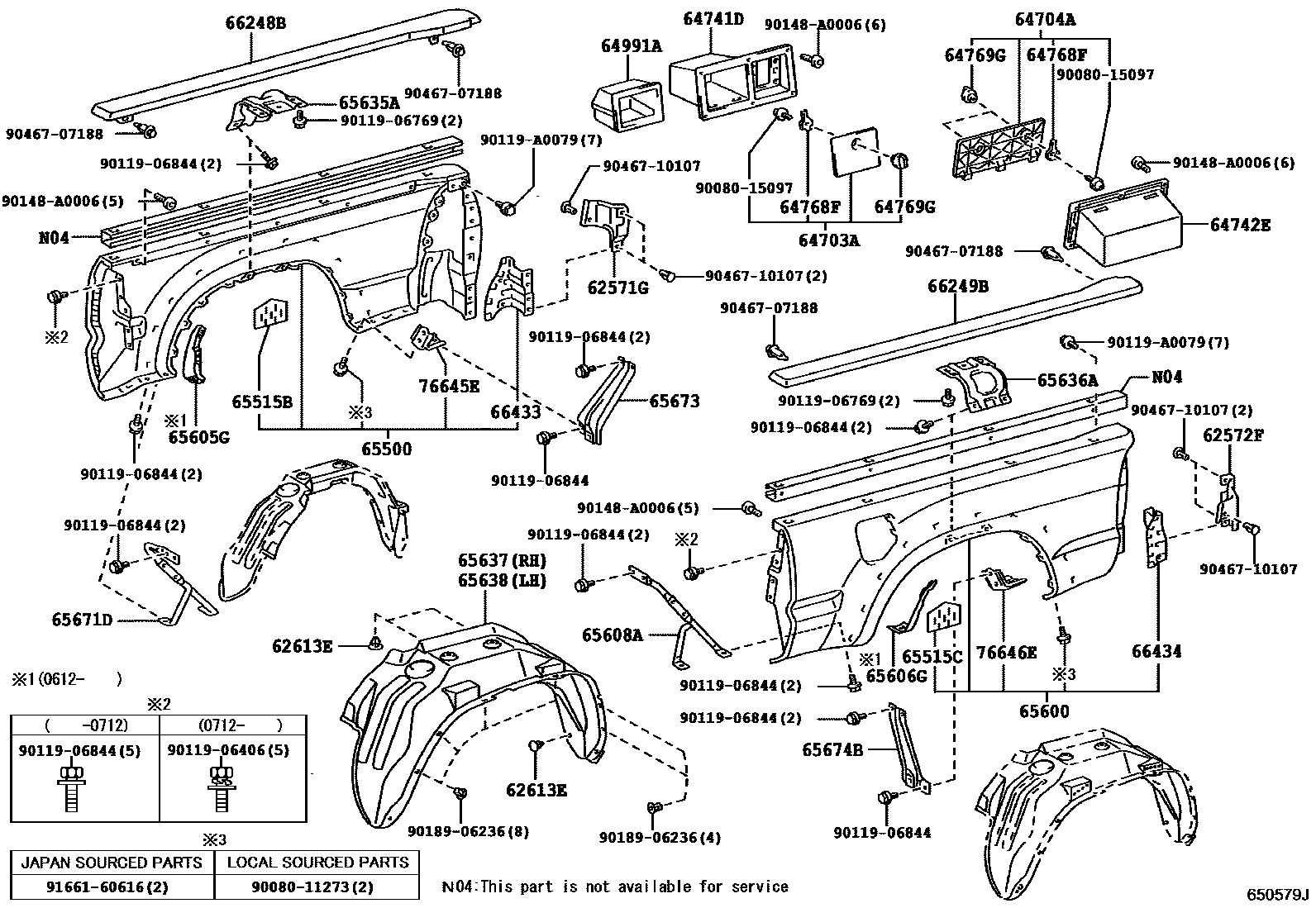

REAR BODY SIDE PANEL
62571GGARNISH, REAR PILLAR, LOWER RH
62572FGARNISH, RR PILLAR, LWR LH
62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)
BLACK
BLACK
64703ACOVER SUB-ASSY, DECK SIDE TRIM, RH
ACCESSORY CONNECTOR(NO.1)-WITH(DECK SOCKET),TYPE B:REFER ILLUST.; STREET PACKAGE 4X4,2X4,TYPE B:REFER ILLUST.; WITH(*FTP & *EUC:PNC51405A & 51406A),TYPE B:REFER ILLUST.
ACCESSORY CONNECTOR-WITH(DECK SOCKET); SPORT PACKAGE; WITH(*FTP & *EUC:PNC51405A & 51406A)
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
64704ACOVER SUB-ASSY, DECK SIDE TRIM, LH
64741DBOX, DECK SIDE TRIM, RH
ACCESSORY CONNECTOR(NO.1)-WITH(DECK SOCKET),TYPE B:REFER ILLUST.; SPORT PACKAGE,TYPE B:REFER ILLUST.; WITH(*FTP & *EUC:PNC51405A & 51406A),TYPE B:REFER ILLUST.
ACCESSORY CONNECTOR(REAR)-WITH
TYPE A:REFER ILLUST.
64742EBOX, DECK SIDE TRIM, LH
64768FSTOPPER, JACK COVER
main64768-04020×4iGRN225; GRN245,250,265,270; GRN245,250,265,270,TRN22#,24#,26#; GRN245,265; TRN225200409-200504
ACCESSORY CONNECTOR(NO.1)-WITH(DECK SOCKET); STREET PACKAGE 4X4,2X4; WITH(*FTP & *EUC:PNC51405A & 51406A)
main64768-04030×3iGRN225; GRN245,250,265,270; GRN245,250,265,270,TRN22#,24#,26#; GRN245,265; TRN225200505-200805
ACCESSORY CONNECTOR(NO.1)-WITH(DECK SOCKET); STREET PACKAGE 4X4,2X4; WITH(*FTP & *EUC:PNC51405A & 51406A)
64769GKNOB, JACK COVER
main64769-04021×3iGRN225; GRN245,250,265,270; GRN245,250,265,270,TRN22#,24#,26#; GRN245,265; TRN225200409-200504
ACCESSORY CONNECTOR(NO.1)-WITH(DECK SOCKET); STREET PACKAGE 4X4,2X4; WITH(*FTP & *EUC:PNC51405A & 51406A)
64991ABOX, DECK FLOOR, FR
65500PANEL ASSY, REAR BODY SIDE, RH
TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM; TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY
OVER FENDER-WITHOUT; TIRE & DISC WHEEL-P245/75R16 7J+30 STEEL
TRD-PRO PACKAGE
65515BSTIFFENER, REAR BODY SIDE PANEL, NO.1
65515CSTIFFENER, REAR BODY SIDE PANEL, NO.2
65600PANEL ASSY, REAR BODY SIDE, LH
TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM; TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY
OVER FENDER-WITHOUT; TIRE & DISC WHEEL-P245/75R16 7J+30 STEEL
TRD-PRO PACKAGE
65605GPANEL SUB-ASSY, WHEEL HOUSE, RH
65606GPANEL SUB-ASSY, WHEEL HOUSE, LH
65608ASKIRT SUB-ASSY, SIDE PANEL, REAR LH
65635APANEL, WHEEL HOUSE, REAR RH
65636APANEL, WHEEL HOUSE, REAR LH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
65671DBRACE, SIDE PANEL SKIRT, FRONT RH
65673BRACE, SIDE PANEL SKIRT, REAR
65674BBRACE, SIDE PANEL SKIRT, RR LH
66248BPROTECTOR, REAR BODY SIDE PANEL, RH
DECK COVER-WITH
REAR DECK-SHORT & WITH(TONNEAU COVER)
66249BPROTECTOR, REAR BODY SIDE PANEL, LH
DECK COVER-WITH
REAR DECK-SHORT & WITH(TONNEAU COVER)
66433BRACE, SIDE REAR STEP, RH
66434BRACE, SIDE REAR STEP, LH
76645EBRACKET, RR BODY MUDGUARD, RH
76646EBRACKET, RR BODY MUDGUARD, LH
9008011273
main90080-11273
9008015097
main90080-15097
9011906406
main90119-06406
9011906769
main90119-06769
9011906844
main90119-06844
90119A0079
main90119-A0079
90148A0006
main90148-A0006
9018906236
main90189-06236
9046707188
main90467-07188
9046710107
main90467-10107
9166160616
main91661-60616
41 parts on this diagram · 6 diagrams in section
