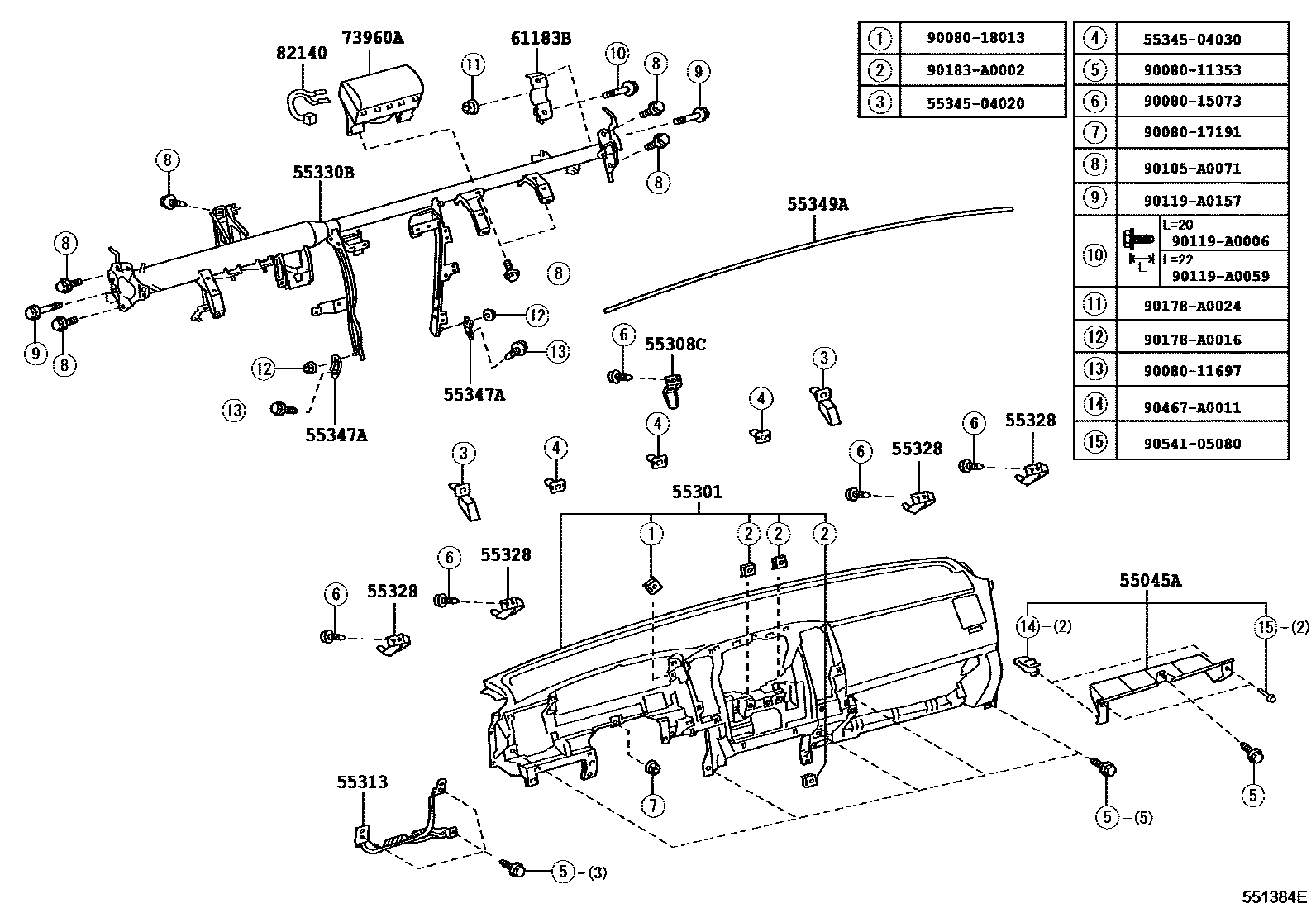

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1DRIVER SIDE 0010 1CENTER 0011 1PASSENGER SIDE 0012 1DRIVER SIDE 0013 1CENTER 0014 1PASSENGER SIDE

55045APANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

main55045-04040iGRN225,245,250,265,270,TRN22#,24#,26#200409-200710

main55045-04041iGRN225,245,250,265,270,TRN225,245,265201109-201508

main55045-04050-C0iGRN305,310,325,330..DCB..SR5; GRN305,310,325,330..LIMD; TRN265;GRN305,325,TRN245..LCB201508-201711

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM4#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-04060-B1iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

GRAY,TRIM1#

main55301-04060-B2iGRN245,250,265,270,TRN225,245,265200409-200805

FAWN,TRIM4#

main55301-04060-B3iGRN265,TRN265..4FC,5FC;GRN245,250,270,TRN225,245200805-201109

SAND BEIGE,TRIM4#

main55301-04061-B1iGRN225,245,250,265,270,TRN225,245,265201109-201508

GRAY,TRIM1#

main55301-04061-B3iGRN245,250,265,270,TRN225,245,265201109-201508

SAND BEIGE,TRIM4#

main55301-04080-C0iGRN305,310,325,330,TRN245,265..SR5; GRN305,310,325,330..LIMD201909

BLACK,TRIM1#,2#; BLACK,TRIM2#,4#

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-04030iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201109

55313PANEL, INSTRUMENT, LOWER LH

main55313-35030iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201109

55328PIN, INSTRUMENT PANEL, NO.1

main55328-04040×4iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-04090iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201109

main55330-04110iGRN305,310,325,330,TRN245,265201808-201909

main55330-04120iGRN225,245,250,265,270,TRN225,245,265201408-201508

main55330-04131iGRN305,310,325,330,TRN245,265201508-201605

main55330-04132iGRN305,310,325,330,TRN245,265201606-201711

main55330-04101iGRN245..6F;GRN245..LCB..5FC;GRN225,250,TRN225200708-200805

CANADA SPEC

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-04040×2iGRN305,310,325,330,TRN245,265201711-201909

55349ACUSHION, INSTRUMENT PANEL

main55349-04010iGRN305,310,325,330,TRN245,265201711-201808

main55349-04040iGRN305,310,325,330,TRN245,265201909

61183BBRACKET, INSTRUMENT PANEL SIDE, NO.2 RH

main61183-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-04030iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

main73960-04060iGRN305,310,325,330,TRN245,265201508-201711

82140WIRE ASSY, INSTRUMENT PANEL

main82140-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

main82140-04020iGRN305,310,325,330,TRN245,265201508-201711

5534504020GARNISH, GLOVE COMPARTMENT, UPPER

main55345-04020

5534504030GARNISH, GLOVE COMPARTMENT, UPPER

main55345-04030

9008011353

main90080-11353

9008011697

main90080-11697

9008015073

main90080-15073

9008017191

main90080-17191

9008018013

main90080-18013

90105A0071

main90105-A0071

90119A0006

main90119-A0006

90119A0059

main90119-A0059

90119A0157

main90119-A0157

90178A0016

main90178-A0016

90178A0024

main90178-A0024

90183A0002

main90183-A0002

90467A0011

main90467-A0011

9054105080

main90541-05080

27 parts on this diagram · 14 diagrams in section
