FRONT SPRING & SHOCK ABSORBER

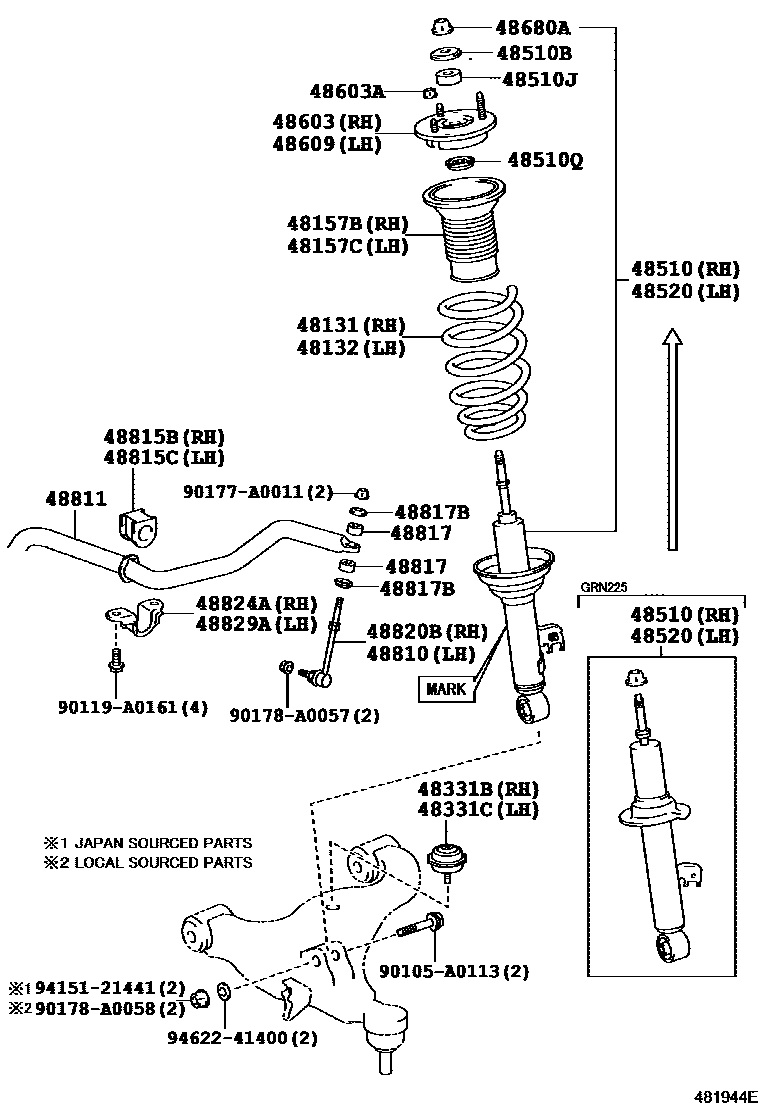

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-04470i200708-200805
main48131-04471i200805-201109
main48131-04490i200708-200805
main48131-04491i200805-201109
main48131-04510i200708-200805
main48131-04511i200805-201109
main48131-04530i200708-200805
main48131-04531i200805-201109
main48131-04550i200708-200805
main48131-04551i200805-201109
main48131-04560i200708-200805
main48131-04561i200805-201006
main48131-04580i200708-200805
main48131-04581i200805-201109
main48131-04650i201109-201408
main48131-04670i201109-201508
main48131-04690i201109-201508
main48131-04710i201109-201508
main48131-04730i201109-201508
main48131-04760i201109-201508
main48131-04780i201109-201508
main48131-04880i201711-201909
main48131-04881i202104
main48131-04890i201711-201909
main48131-04891i202104
main48131-04A10i201508-201711
main48131-04A11i202104
main48131-04A60i201711-201909
main48131-04A61i202104
main48131-04A80i201508-201711
main48131-04A81i202104
main48131-AD180i200409-200707
main48131-AD181i200805-201109
main48131-04610i200410-200707
MEXICO SPEC
main48131-04611i200805-201109
MEXICO SPEC(W(VSC, SIDE & *CUSA))
main48131-04630i200908-201109
MEXICO SPEC(W(VSC, SIDE & *CUSA))
main48131-04800i201109-201508
MEXICO SPEC&SPORT PACKAGE
main48131-04820i201408-201508
TRD-PRO PACKAGE
main48131-04840supersedes 48131-04720i201109-201508
WITH(*FTP & *EUC:PNC51405A & 51406A)
main48131-04860i201109-201508
MEXICO SPEC&SPORT PACKAGE
main48131-04A70i201508-201711
MEXICO SPEC&SPORT PACKAGE
main48131-04A71i202104
MEXICO, COSTARICA SPEC&SPORT PACKAGE
main48131-04A90i201711-201909
OFF ROAD PACKAGE; TRD PRO PACKAGE
main48131-04B00supersedes 48131-04C01i201909
OFF ROAD PACKAGE
main48131-04B10i201711-201909
OFF ROAD PACKAGE
main48131-04B20i201711-201909
OFF ROAD PACKAGE
main48131-04B30i201909-202104
MEXICO, COSTARICA SPEC&SPORT PACKAGE
main48131-04B31i202104
MEXICO, COSTARICA SPEC&SPORT PACKAGE
main48131-04B80i202109
TRAIL EDITION PACKAGE
main48131-AD220supersedes 48131-04740i200708-200805
WITH(*FTP & *EUC:PNC51405A & 51406A); WITH(*FTP & *EUC:PNC51405A ONLY)
main48131-AD221supersedes 48131-04740i200805-201109
WITH(*FTP & *EUC:PNC51405A & 51406A)
main48131-AD240supersedes 48131-04520i200708-200805
WITH(*FTP & *EUC:PNC51405A & 51406A); WITH(*FTP & *EUC:PNC51405A ONLY)
main48131-AD241supersedes 48131-04521i200805-201006
WITH(*FTP & *EUC:PNC51405A & 51406A)
48132SPRING, FRONT COIL, LH
main48131-04480i200708-200805
main48131-04481i200805-201109
main48131-04500i200708-200805
main48131-04501i200805-201109
main48131-04520i200708-200805
main48131-04521i200805-201006
main48131-04540i200409-200707
main48131-04541i200805-201109
main48131-04570i200409-200707
main48131-04571i200805-201006
main48131-04590i200708-200805
main48131-04591i200805-201109
main48131-04600i200708-200805
main48131-04601i200805-201109
main48131-04660i201109-201408
main48131-04680i201109-201508
main48131-04700i201109-201508
main48131-04720i201109-201408
main48131-04740i201109-201508
main48131-04770i201109-201508
main48131-04790i201109-201508
main48131-04880i201909-202104
main48131-04881i202104
main48131-04890i201508-201711
main48131-04891i202104
main48131-04A00i201508-201711
main48131-04A01i202104
main48131-04A10i201909-202104
main48131-04A11i202104
main48131-04A60i201909-202104
TRD-PRO PACKAGE
main48131-04A61i202104
main48131-04A80i201711-201909
main48131-04A81i202104
main48131-04C00i201909-202104
TRD-PRO PACKAGE
main48131-04C01i202104
main48131-AD190i200708-200805
main48131-AD191i200805-201109
main48131-04620i200708-200805
MEXICO SPEC
main48131-04621i200908-201109
MEXICO SPEC(W/O (VSC, SIDE & *CUSA))
main48131-04640i200908-201109
MEXICO SPEC(W(VSC, SIDE & *CUSA))
main48131-04810i201109-201508
MEXICO SPEC&SPORT PACKAGE
main48131-04830supersedes 48131-04750i201109-201508
WITH(*FTP & *EUC:PNC51405A & 51406A)
main48131-04850supersedes 48131-04760i201109-201508
WITH(*FTP & *EUC:PNC51405A & 51406A)
main48131-04870i201109-201508
MEXICO SPEC&SPORT PACKAGE
main48131-04A70i201711-201909
MEXICO SPEC&SPORT PACKAGE
main48131-04A71i202104
MEXICO, COSTARICA SPEC&SPORT PACKAGE
main48131-04A90i201508-201711
WITH(*FTP & *EUC:PNC51405A & 51406A)
main48131-04B00i201711-201909
OFF ROAD PACKAGE; TRD PRO PACKAGE
main48131-04B20i201711-201909
OFF ROAD PACKAGE
main48131-04B30i201711-201909
MEXICO SPEC&SPORT PACKAGE
main48131-04B31i202104
MEXICO, COSTARICA SPEC&SPORT PACKAGE
main48131-04B50i201909
OFF ROAD PACKAGE
main48131-04B80i202109
TRAIL EDITION PACKAGE
main48131-AD230supersedes 48131-04750i200708-200805
WITH(*FTP & *EUC:PNC51405A & 51406A); WITH(*FTP & *EUC:PNC51405A ONLY)
main48131-AD231supersedes 48131-04750i200805-201109
WITH(*FTP & *EUC:PNC51405A & 51406A)
main48131-AD250supersedes 48131-04580i200708-200805
WITH(*FTP & *EUC:PNC51405A & 51406A); WITH(*FTP & *EUC:PNC51405A ONLY)
main48131-AD251supersedes 48131-04581i200805-201006
WITH(*FTP & *EUC:PNC51405A & 51406A)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-04010i200805-201109
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-04010i200409-200805
48331BBUMPER, FRONT SPRING, RH
main48304-04090i200805-201109
main48304-04100i201109-201408
main48304-AD010i200409-200805
48331CBUMPER, FRONT SPRING, LH
main48304-04090i200409-200805
main48304-04100i201909
main48304-AD010i200409-200805
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-09F40i201109-201508
MARK 48510-04060
main48510-09L80i200409-200805
MARK 48510-04080
main48510-09L81i201109-201408
MARK 48510-04210
main48510-09L90i200409-200805
MARK 48510-04090
main48510-09U50i200805-201006
MARK 48510-04160
main48510-8Z254i201711-201811
MARK 48510-04200
main48510-8Z359i201811-201906
MARK 48510-04201
main48510-8Z447i201906-201909
MARK 48510-04202
main48510-A9640i200409-200805
MARK 48510-AD080
main48510-09U60i201109-201505
MARK 48510-AD061,PUERTO RICO SPEC&SPORT PACKAGE; MARK 48510-AD061,PUERTO RICO SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD061,PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD061,SPORT PACKAGE; MARK 48510-AD061,SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD061,USA POSSESSION SPEC&SPORT PACKAGE; MARK 48510-AD061,USA POSSESSION SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD061,USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD061,WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main48510-09U61i201505-201508
MARK 48510-AD062,PUERTO RICO SPEC&SPORT PACKAGE; MARK 48510-AD062,PUERTO RICO SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD062,PUERTO RICO SPEC&TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; MARK 48510-AD062,PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; MARK 48510-AD062,PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD062,SPORT PACKAGE; MARK 48510-AD062,SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD062,TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; MARK 48510-AD062,USA POSSESSION SPEC&SPORT PACKAGE; MARK 48510-AD062,USA POSSESSION SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD062,USA POSSESSION SPEC&TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; MARK 48510-AD062,USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; MARK 48510-AD062,USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD062,WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; MARK 48510-AD062,WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main48510-8Z253i201711-201909
MARK 48510-04190,OFF ROAD PACKAGE; MARK 48510-04190,TRD PRO PACKAGE
main48510-8Z255i201711-201811
MARK 48510-04220,SPORT PACKAGE
main48510-8Z259i201711-201811
MARK 48510-04230,MEXICO SPEC&SPORT PACKAGE
main48510-8Z296i201510-201606
MARK 48510-04191,WITH(*FTP & *EUC:PNC51405A & 51406A)
main48510-8Z360i201811-201906
MARK 48510-04221,SPORT PACKAGE
main48510-8Z361i201811-201906
MARK 48510-04231,MEXICO SPEC&SPORT PACKAGE
main48510-8Z448i201906-201909
MARK 48510-04222,SPORT PACKAGE
main48510-8Z449i201906-201909
MARK 48510-04232,MEXICO SPEC&SPORT PACKAGE
main48510-8Z545i202109
MARK 48510-04260, TRAIL EDITION PACKAGE
main48510-A9630i200409-200805
MARK 48510-AD060,STREET PACKAGE 4X4,2X4; MARK 48510-AD060,WITH(*FTP & *EUC:PNC51405A & 51406A)
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
main90948-A2003×2i201508-201711
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
main90540-12012×2i200801-200805
(J); CANADA SPEC&STREET PACKAGE 4X4,2X4,(J); CANADA SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A),(J); CANADA SPEC,(J); STREET PACKAGE 4X4,2X4,(J); WITH(*FTP & *EUC:PNC51405A & 51406A),(J); WITH(*FTP & *EUC:PNC51405A ONLY),(J)
main90540-A0002×2i200409-200801
main90540-A0005×2i200801-200805
(L); CANADA SPEC&STREET PACKAGE 4X4,2X4,(L); CANADA SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A),(L); CANADA SPEC,(L); STREET PACKAGE 4X4,2X4,(L); WITH(*FTP & *EUC:PNC51405A & 51406A),(L); WITH(*FTP & *EUC:PNC51405A ONLY),(L)
main90948-01056×2i201711-201909
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
main90948-A2001×2i200409-200805
48520ABSORBER ASSY, SHOCK, FRONT LH
main48510-09L80i200805-201006
MARK 48510-04080
main48510-09L81i201109-201408
MARK 48510-04210
main48510-09L90i200409-200805
MARK 48510-04090
main48510-09U50i200805-201006
MARK 48510-04160
main48510-8Z254i201508-201711
MARK 48510-04200
main48510-8Z359i201811-201906
MARK 48510-04201
main48510-8Z447i201909
MARK 48510-04202
main48520-09F00i200409-200805
MARK 48520-04010
main48520-A9310i201109-201508
MARK 48520-AD010
main48510-09U60i201109-201505
MARK 48510-AD061,PUERTO RICO SPEC&SPORT PACKAGE; MARK 48510-AD061,PUERTO RICO SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD061,PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD061,SPORT PACKAGE; MARK 48510-AD061,SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD061,USA POSSESSION SPEC&SPORT PACKAGE; MARK 48510-AD061,USA POSSESSION SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD061,USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD061,WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main48510-09U61i201505-201508
MARK 48510-AD062,PUERTO RICO SPEC&SPORT PACKAGE; MARK 48510-AD062,PUERTO RICO SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD062,PUERTO RICO SPEC&TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; MARK 48510-AD062,PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; MARK 48510-AD062,PUERTO RICO SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD062,SPORT PACKAGE; MARK 48510-AD062,SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD062,TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; MARK 48510-AD062,USA POSSESSION SPEC&SPORT PACKAGE; MARK 48510-AD062,USA POSSESSION SPEC&SPORT PACKAGE&SUSPENSION-FIRM RIDE; MARK 48510-AD062,USA POSSESSION SPEC&TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; MARK 48510-AD062,USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; MARK 48510-AD062,USA POSSESSION SPEC&WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD; MARK 48510-AD062,WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; MARK 48510-AD062,WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
main48510-8Z253i201711-201909
MARK 48510-04190,OFF ROAD PACKAGE; MARK 48510-04190,TRD PRO PACKAGE
main48510-8Z255i201711-201811
MARK 48510-04220,SPORT PACKAGE
main48510-8Z259i201711-201811
MARK 48510-04230,MEXICO SPEC&SPORT PACKAGE
main48510-8Z296i201510-201606
MARK 48510-04191,WITH(*FTP & *EUC:PNC51405A & 51406A)
main48510-8Z360i201811-201906
MARK 48510-04221,SPORT PACKAGE
main48510-8Z361i201811-201906
MARK 48510-04231,MEXICO SPEC&SPORT PACKAGE
main48510-8Z448i201906-201909
MARK 48510-04222,SPORT PACKAGE
main48510-8Z449i201906-201909
MARK 48510-04232,MEXICO SPEC&SPORT PACKAGE
main48510-8Z545i202109
MARK 48510-04260, TRAIL EDITION PACKAGE
main48510-A9630i200409-200805
MARK 48510-AD060,STREET PACKAGE 4X4,2X4; MARK 48510-AD060,WITH(*FTP & *EUC:PNC51405A & 51406A)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-04010i200409-200805
main48609-04020i201711-201909
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90080-17215×6i200805-201006
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-04010i200409-200805
main48609-04020i201508-201711
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main90177-A0012×2i200409-200805
48810LINK ASSY, FRONT STABILIZER, LH
main48810-04010i200409-200805
main48820-AD010i200805-201109
48811BAR, STABILIZER, FRONT
main48811-04100i201109-201508
main48811-04130i200409-200805
main48811-AD050i201408-201508
TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
48815BBUSH, FRONT STABILIZER LOWER BRACKET, RH
main48815-04070i200409-200805
main48815-04080i200805-201109
main48815-AD050i200805-201109
main48815-AD030i201408-201508
TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
48815CBUSH, FRONT STABILIZER LOWER BRACKET, LH
main48815-04070i200409-200805
main48815-04080i201711-201909
main48815-AD050i200805-201109
main48815-AD030i201408-201508
TRD-PRO PACKAGE&SUSPENSION-OFF ROAD; WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-FIRM RIDE; WITH(*FTP & *EUC:PNC51405A & 51406A)&SUSPENSION-OFF ROAD
48817CUSHION, FRONT STABILIZER
main90540-A0001×4i201109-201408
main90540-A0006×4i201109-201508
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
main90948-A2004×4i201109-201508
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-04020i200805-201109
main48820-AD010i200805-201109
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-04020i200409-200805
main48824-04030i201109-201408
main48824-04050i201711-201909
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-04030i200805-201109
main48829-04010i201109-201508
main48829-04030i201711-201909
90105A0113
main90105-A0113
90119A0161
main90119-A0161
90177A0011
main90177-A0011
90178A0057
main90178-A0057
90178A0058
main90178-A0058
9415121441
main94151-21441
9462241400
main94622-41400

31 parts on this diagram · 2 diagrams in section
