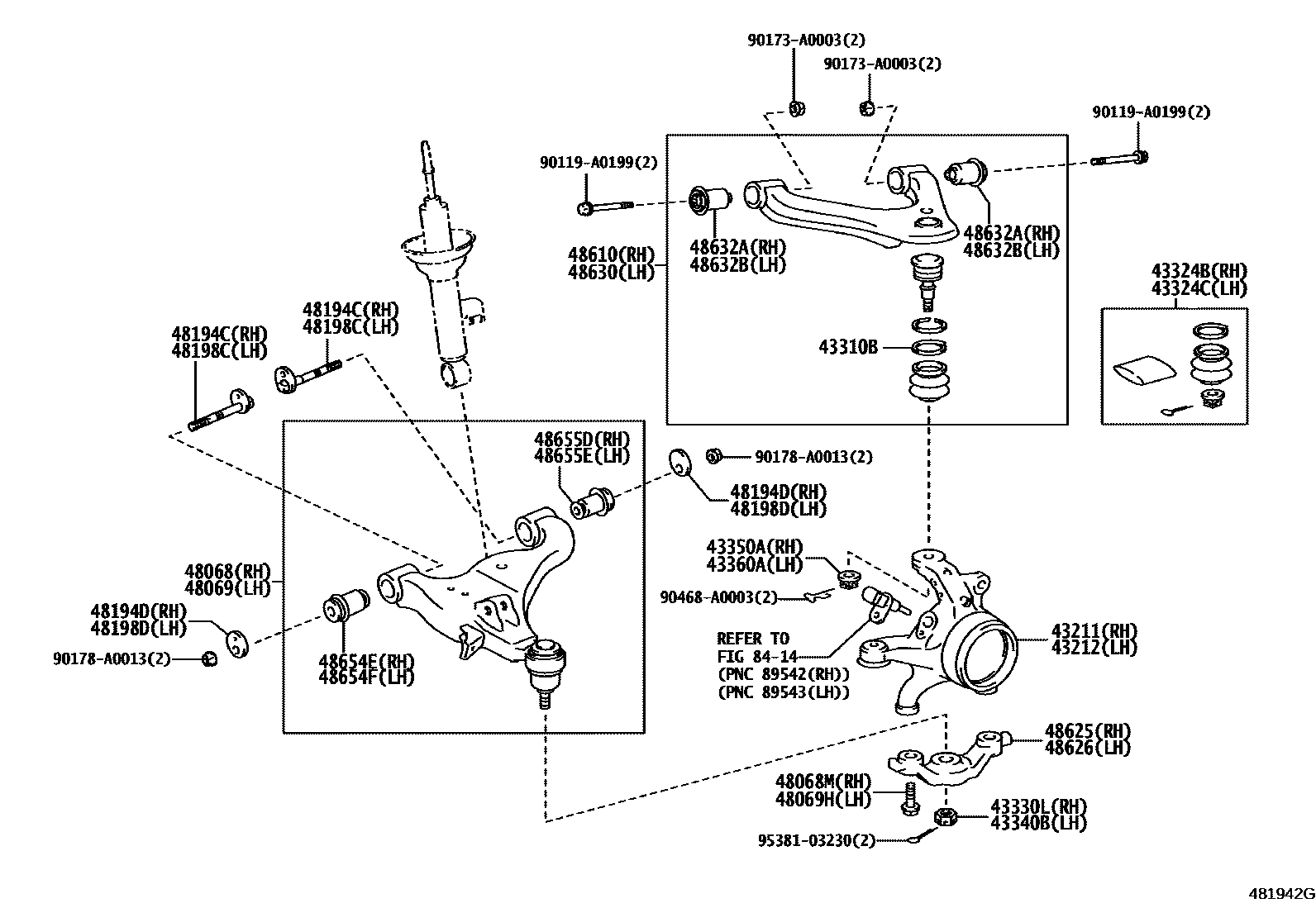

FRONT AXLE ARM & STEERING KNUCKLE
43310BRING, SET (FOR DUST COVER)
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
8414ABS & VSC
90119A0199
main90119-A0199
90173A0003
main90173-A0003
90178A0013
main90178-A0013
90468A0003
main90468-A0003
9538103230
main95381-03230
33 parts on this diagram · 2 diagrams in section
