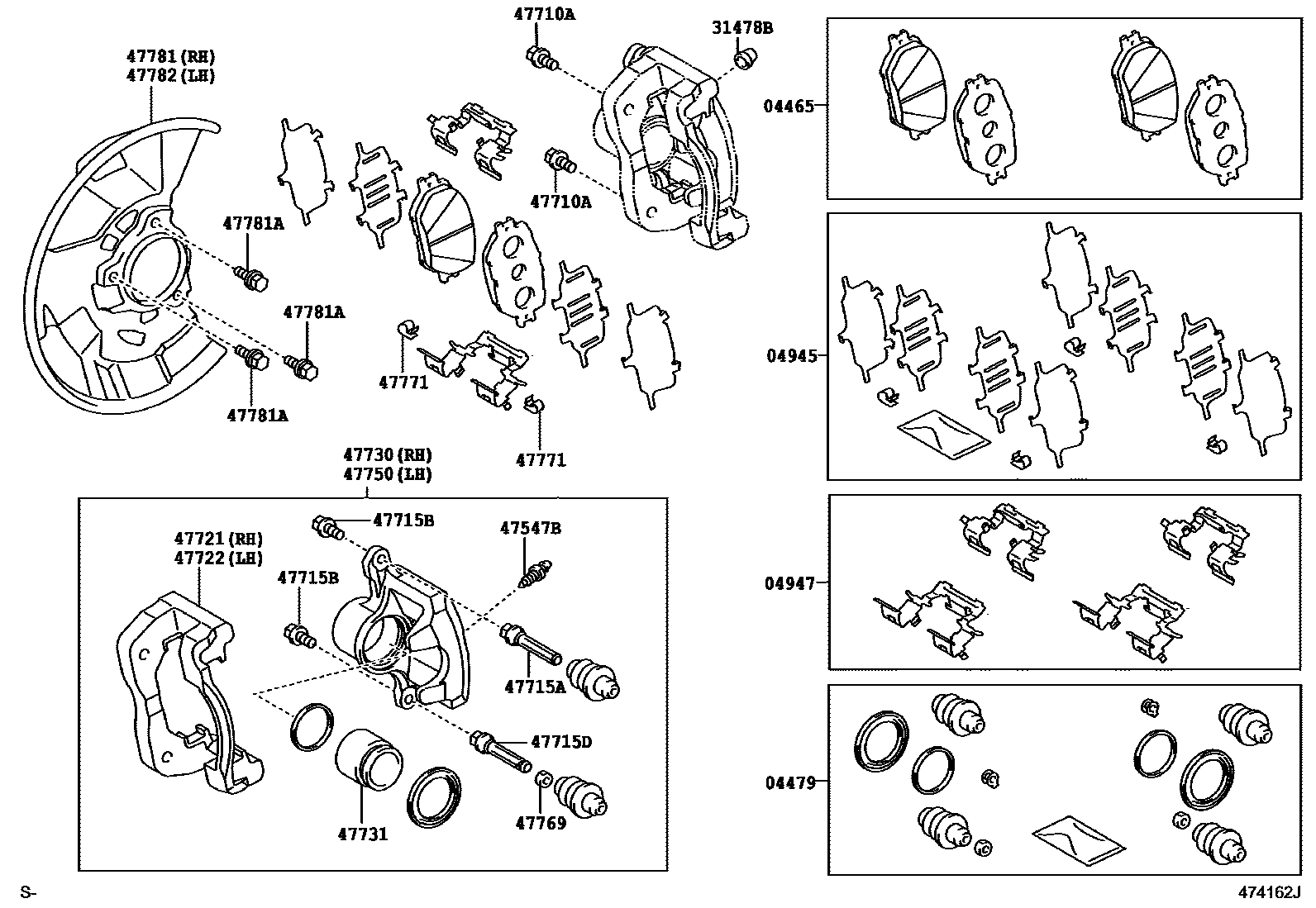

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-04070iGRN245,250,265,270,TRN24#,26#200409-201508

MARK ADVICS PS558H

main04465-04080iGRN225,TRN22#200409-201508

MARK ADVICS PS558H

main04465-04090iGRN305,310,325,330,TRN245,265201508-201909

MARK ADVICS VC070H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-04030iGRN225,TRN225200409-201508

main04478-04050iGRN245,250,265,270,TRN245,265200601-201909

main04479-60080iGRN245,250,265,270,TRN24#,26#200409-200601

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-04070iGRN225,TRN22#200409-201508

main04945-0C030iGRN245,250,265,270,TRN245,265200509-201909

main04945-35130iGRN245,250,265,270,TRN24#,26#200409-200509

04947FITTING KIT, DISC BRAKE, FRONT

main04947-04040iTRN220200409-201508

main04947-0C010iGRN305,310,325,330,TRN245,265200509-201909

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGRN225,245,250,265,270,TRN22#,24#,26#200409-201909

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-04010iGRN225,TRN22#200409-201508

main47547-04010iTRN220201211-201508

(L)

main47547-35290iGRN225,TRN225201211-201508

(J)

main47547-35290iGRN305,310,325,330,TRN245,265201508-201909

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10129iGRN245,250,265,270,TRN24#,26#200409-200709

*12-1.25PX35-27

main90080-10213iGRN305,310,325,330,TRN245,265200409-201909

*12-1.25PX33-25

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-04080iGRN225,TRN22#200409-201508

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90016-AA103iGRN225,TRN225201211-201508

main90105-08304iGRN225,TRN22#200409-201211

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-04080iGRN225,TRN22#200409-201508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-04080iGRN225,TRN22#200409-201508

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-04080iGRN225,TRN22#200409-201508

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-04080iGRN225,TRN22#200409-201508

main47730-04090iGRN245,250,265,270,TRN24#,26#200409-200502

main47730-04091iGRN245,250,265,270,TRN24#,26#200502-200601

main47730-04092iGRN305,310,325,330,TRN245,265200601-201909

47731PISTON, FRONT DISC BRAKE

main47731-04060iTRN220200409-201508

main47731-0C020iTRN240200409-201909

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-04080iGRN225,TRN22#200409-201508

main47750-04090iGRN245,250,265,270,TRN24#,26#200409-200502

main47750-04091iGRN245,250,265,270,TRN24#,26#200502-200601

main47750-04092iGRN265,TRN26#..5F,6F200601-201909

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iTRN220200409-201508

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33020iGRN225,TRN22#200409-201508

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-04030iGRN225,TRN22#200409-201508

main47781-04040iGRN245,250,265,270,TRN24#,26#200409-201508

main47781-04050iGRN305,310,325,330,TRN245,265201508-201909

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429iGRN225,TRN225200409-201508

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-04030iGRN225,TRN22#200409-201508

main47782-04040iGRN265,TRN26#..5F,6F200409-201508

main47782-04050iGRN305,310,325,330,TRN245,265201508-201909

20 parts on this diagram · 2 diagrams in section
