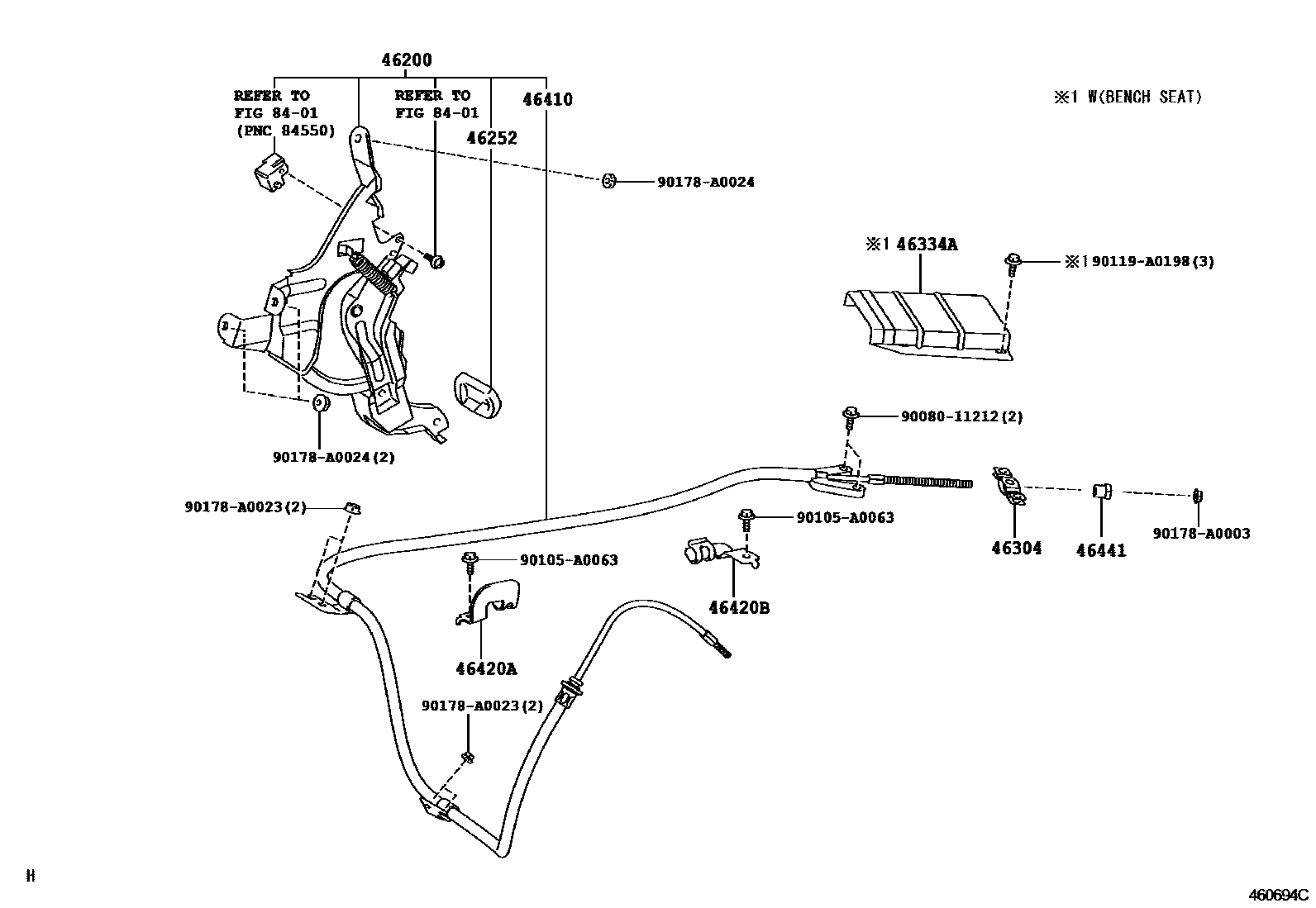

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-04010iGRN245,250,265,270,TRN22#..4FC,5FC200409-200805

46252PAD, PARKING PEDAL

main46252-68010iGRN245,250,265,270,TRN22#,24#,265..4FC,5FC200805-201109

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

main46304-35020iGRN265,TRN26#..5F,6F200912-201006

46334APROTECTOR, PARKING BRAKE CABLE JOINT

main46334-35010iTRN220;TRN240..5F201109-201408

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-04030iTRN220,240..4FC201109-201408

main46410-04040iGRN225,245,TRN225,245..5F,6F201109-201508

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-04070iTRN220200805-201109

main46420-04071iTRN220201301-201408

main46420-04080iTRN240201109-201212

main46420-04081iTRN240201301-201408

main46420-04090iGRN225,TRN225201109-201212

main46420-04091iGRN225,TRN225201301-201508

main46420-04100iGRN265,TRN265..5F,6F200805-201006

main46420-04101iGRN245,265,TRN245,265201301-201508

main46420-04110iGRN270200805-201109

main46420-04111iGRN270201301-201508

main46420-04120iGRN250200805-201109

main46420-04121iGRN250201301-201508

main46420-04130iGRN305,325,TRN245,265201711-201904

main46420-04131iGRN305,325,TRN245,265201909

main46420-04140iGRN310201508-201711

main46420-04141iGRN310201905-201909

main46420-04150iGRN330201711-201904

main46420-04151iGRN330201905-201909

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-04010iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201109

main46431-04020iGRN305,310,325,330,TRN245,265201508-201711

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-04020iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

main46421-04030iGRN305,310,325,330,TRN245,265201508-201711

main46421-04070iGRN305,310,325,330,TRN245,265201905-201909

46441NUT, WIRE ADJUSTING, NO.1

main46441-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

main46441-04020iGRN305,310,325,330,TRN245,265201508-201711

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011212

main90080-11212

90105A0063

main90105-A0063

90119A0198

main90119-A0198

90178A0003

main90178-A0003

90178A0023

main90178-A0023

90178A0024

main90178-A0024

16 parts on this diagram · 5 diagrams in section
