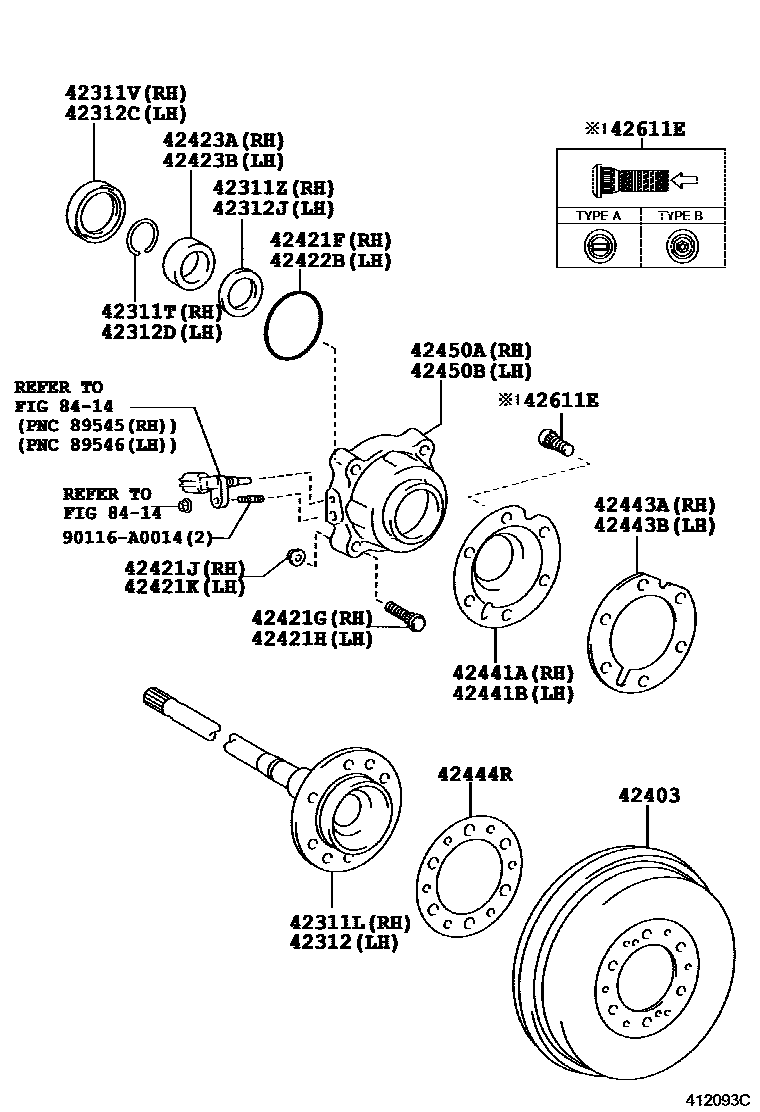

REAR AXLE SHAFT & HUB

42311LSHAFT, REAR AXLE, RH

main42311-04060iGRN305,310,325,330..6FC..SR5; GRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main42311-04070iGRN225,TRN22#200409-200710

main42311-04071iGRN225,TRN22#200711-200805

main42311-04080iGRN245,250,265,270,TRN24#,26#200409-200710

main42311-04081iGRN245,250,265,270,TRN245,265201109-201508

main42311-04082iGRN305,310,325,330,TRN245,265..6FC201711-201909

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-41019iGRN305,310,325,330,TRN245,265201909

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-58003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-44001iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42312SHAFT, REAR AXLE, LH

main42311-04060iGRN305,310,325,330..6FC..SR5; GRN305,TRN245..5F,6F201508-201711

WITH(*FTP & *EUC:PNC51405A & 51406A)

main42311-04070iGRN225,TRN22#200409-200710

main42311-04071iGRN225,TRN225201109-201508

main42311-04080iGRN245,250,265,270,TRN24#,26#200409-200710

main42311-04081iGRN245,250,265,270,TRN24#,26#200711-200805

main42311-04082iGRN305,310,325,330,TRN245,265..6FC201508-201711

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-58003iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-41019iGRN305,310,325,330,TRN245,265201909

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-44001iGRN305,310,325,330,TRN245,265201909

42403DRUM SUB-ASSY, REAR BRAKE

main42431-04050×2iGRN225,TRN22#200805-201109

main42431-04051×2iGRN225,TRN225201305-201508

main42431-04060×2iGRN245,250,265,270,TRN24#,265201109-201304

main42431-04061×2iTRN240201305-201408

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-83002iGRN305,310,325,330,TRN245,265201909

42421GBOLT (FOR REAR AXLE BEARING CASE RH NO.2)

main90114-A0009×4iGRN305,310,325,330,TRN245,265201909

42421HBOLT (FOR REAR AXLE BEARING CASE LH NO.2)

main90114-A0009×4iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201109

42421JNUT (FOR REAR AXLE BEARING CASE RH)

main90178-A0052×4iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42421KNUT (FOR REAR AXLE BEARING CASE LH)

main90178-A0052×4iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-83002iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-60050iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-60050iGRN225,245,250,265,270,TRN225,245,265201109-201508

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-35050iGRN225,TRN22#200409-200805

main42441-35060iGRN245,250,265,270,TRN245,265201109-201508

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-35050iGRN225,TRN225201109-201508

main42441-35060iGRN245,250,265,270,TRN245,265201109-201508

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-30010iGRN225,TRN22#200409-200805

main42443-60010iTRN240201109-201408

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-30010iGRN225,TRN22#200409-200805

main42443-60010iGRN305,310,325,330,TRN245,265201711-201909

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35050×2iGRN305,310,325,330,TRN245,265201909

main42444-35070×2iGRN225,TRN22#200409-200805

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-04010iGRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#200805-201109

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-04010iGRN225,245,250,265,270,TRN22#,24#,26#200409-200805

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02049×12iGRN225,TRN22#; GRN245,250,265,270,TRN24#,26#200805-200911

main90942-02081×10iTRN220; TRN240201109-201408

TYPE B:REFER ILLUST.

8414ABS & VSC

→ Go to FIG 84-14

90116A0014

main90116-A0014

27 parts on this diagram · 1 diagram in section
