35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010i200409-200805

35624PISTON, 2ND BRAKE

main35624-30010i200409-200805

main35624-60010i200409-200805

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001i200409-200805

INNER

main90301-99038i201109-201508

OUTER

main90301-99095i200805-201109

INNER

main90301-99115i200805-201109

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030i200409-200805

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010i200805-201109

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001i200805-201109

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4i200409-200805

T=2.5,NO.1

main35647-30030i201109-201508

T=1.8,NO.2

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020i201109-201408

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032i201109-201408

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30080×5i200805-201109

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30061i200409-200805

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009i200409-200805

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061i200805-201109

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044i200409-200805

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010i200409-200805

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040i200409-200805

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010×2i200409-200805

35755DRUM, SUN GEAR INPUT

main35755-50010i201109-201508

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002i201109-201408

ID=46.0,T=1.2,REAR

main90520-49001i201109-201508

ID=49.0,WD=2.3,FRONT

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30240i200409-200805

35790CLUTCH ASSY, 1 WAY

main35790-0C010i201109-201508

main35790-30050i200805-201109

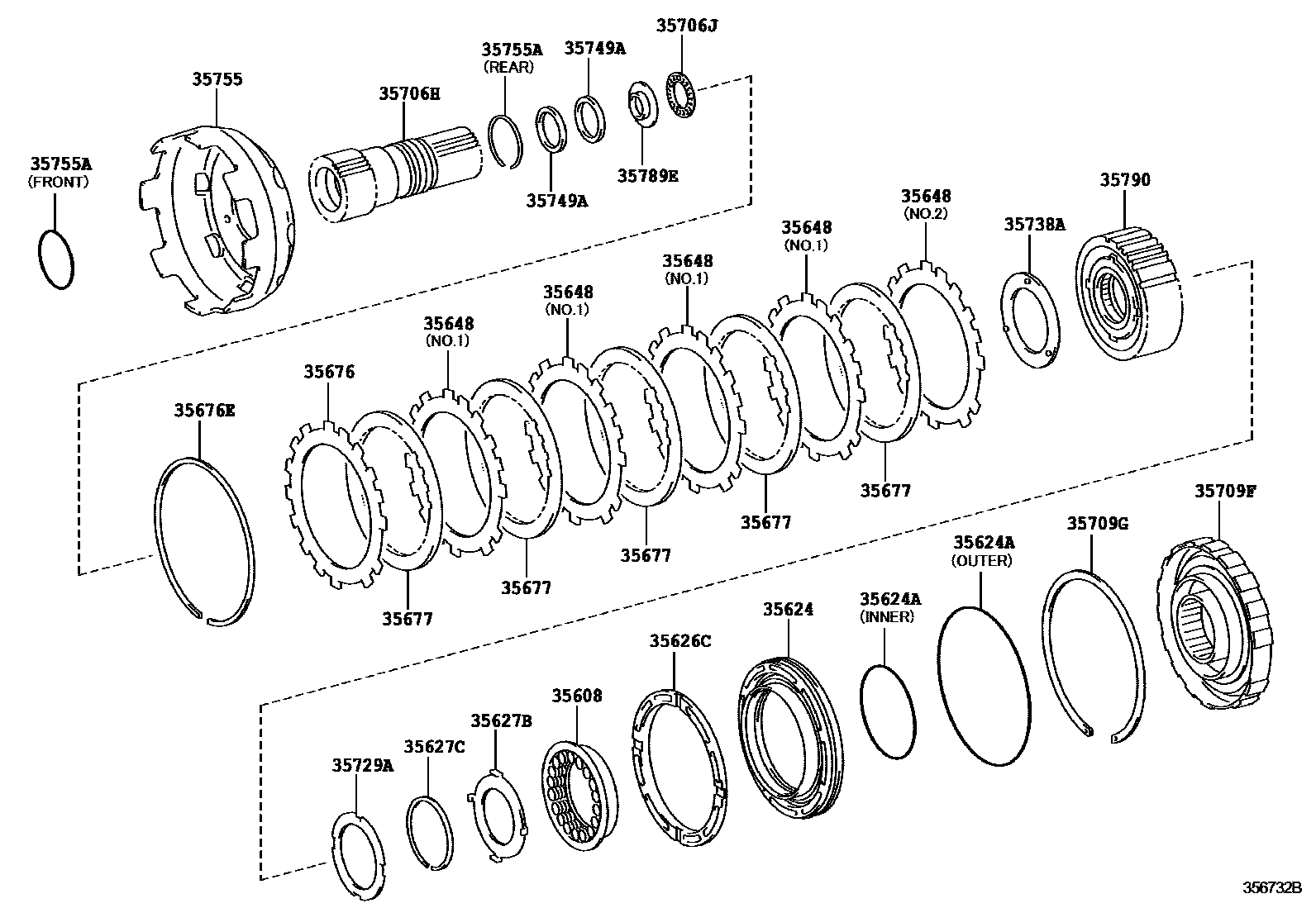

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
