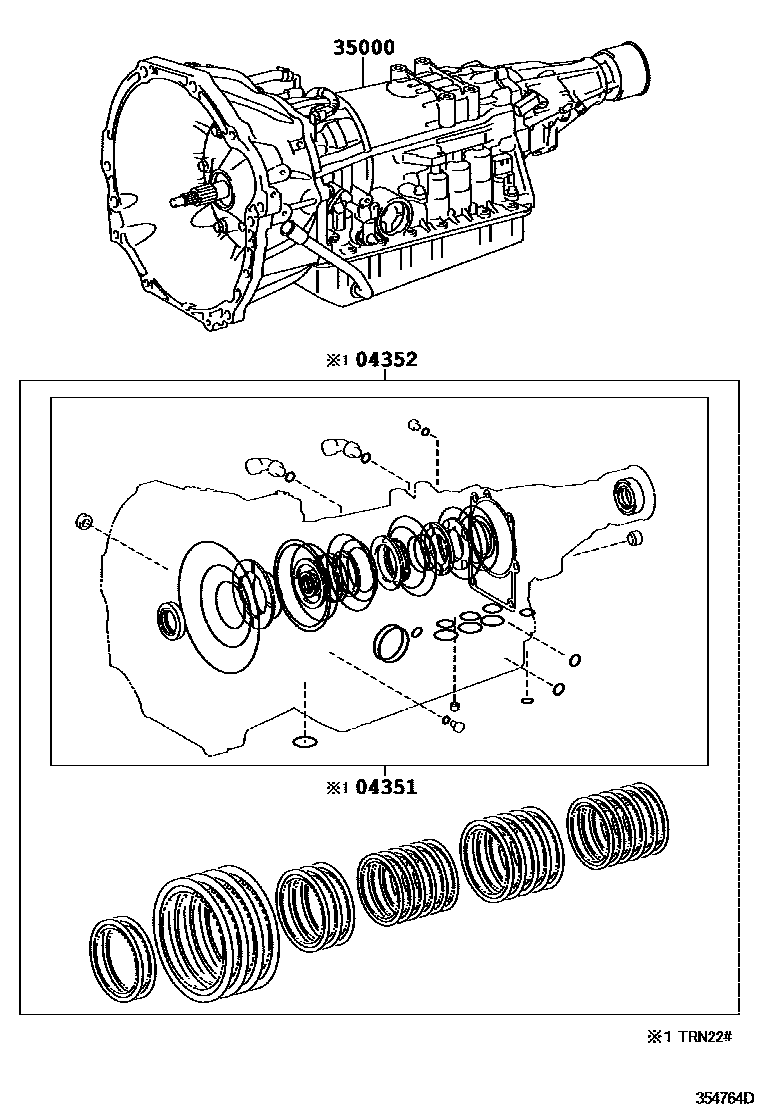

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A340E 0002 1A750E 0003 1A750F 0004 1A340F 0005 1AC60E 0006 1AC60F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-35270iTRN22#..4FC200409-200805

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-35350iTRN22#..4FC200805-201109

35000TRANSMISSION ASSY, AUTOMATIC

main35000-04010iGRN265,270..5FC200409-200708

A750E

main35000-04020iGRN245,250..5FC200409-200708

A750F,FIG.35-03

main35000-04030iGRN265,270..5FC200708-200805

A750E

main35000-04040iGRN245,250..5FC200805-201109

A750F

main35000-04050iGRN265,270201109-201208

A750E

main35000-04060iGRN245,250..5FC201109-201208

A750F

main35000-04070iGRN265,270201208-201508

A750E

main35000-04080iGRN245,250..5FC201208-201508

A750F

main35000-04090iTRN265201909

AC60E

main35000-04100iTRN245..6FC201508-201711

AC60F

main35000-04110iGRN325,330201711-201909

AC60E

main35000-04120iGRN305,310..6FC201909

AC60F

main35000-35A20supersedes 35000-35A30iTRN225..4FC201109-201208

A340E

main35000-35A30iTRN220..4FC201109-201208

A340E

main35000-35C30iTRN265201109-201208

A340E

main35000-35C40iTRN24#..4FC201006-201109

A340F

main35000-35D10iTRN225..4FC201208-201508

A340E

main35000-35D20iTRN220..4FC201208-201408

A340E

main35000-35D30iTRN265201208-201508

A340E

main35000-35D40iTRN240..4FC201208-201408

A340F

3 parts on this diagram · 6 diagrams in section
