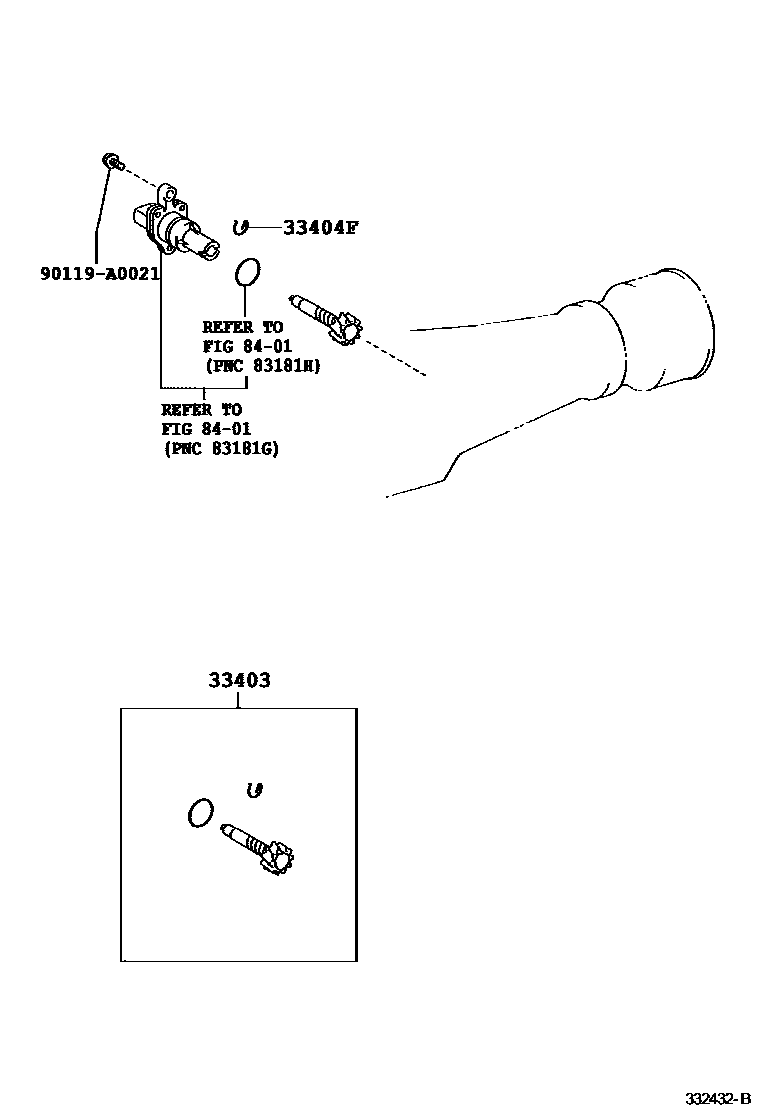

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1R155,RA60 0002 1R155F,RA60

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39365iTRN26#200409-201109

N=30,MARK 30:11

main33403-39515iTRN24#200409-200812

N=29,MARK 29:11

main33403-39575iTRN22#..5F200409-201109

N=27,MARK 27:11

main33403-39585iGRN245..6F200409-201109

N=28,MARK 28:11

main33403-39695iGRN225200409-201109

N=33,MARK 14:33

main33403-69335iGRN265..6F200409-200805

N=33,MARK 13:33

main33403-69345iGRN265..6F200805-201006

N=32,MARK 32:13

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGRN225,245,265,TRN22#,24#,26#..5F,6F200409-201109

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0021

main90119-A0021

4 parts on this diagram · 2 diagrams in section
