TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

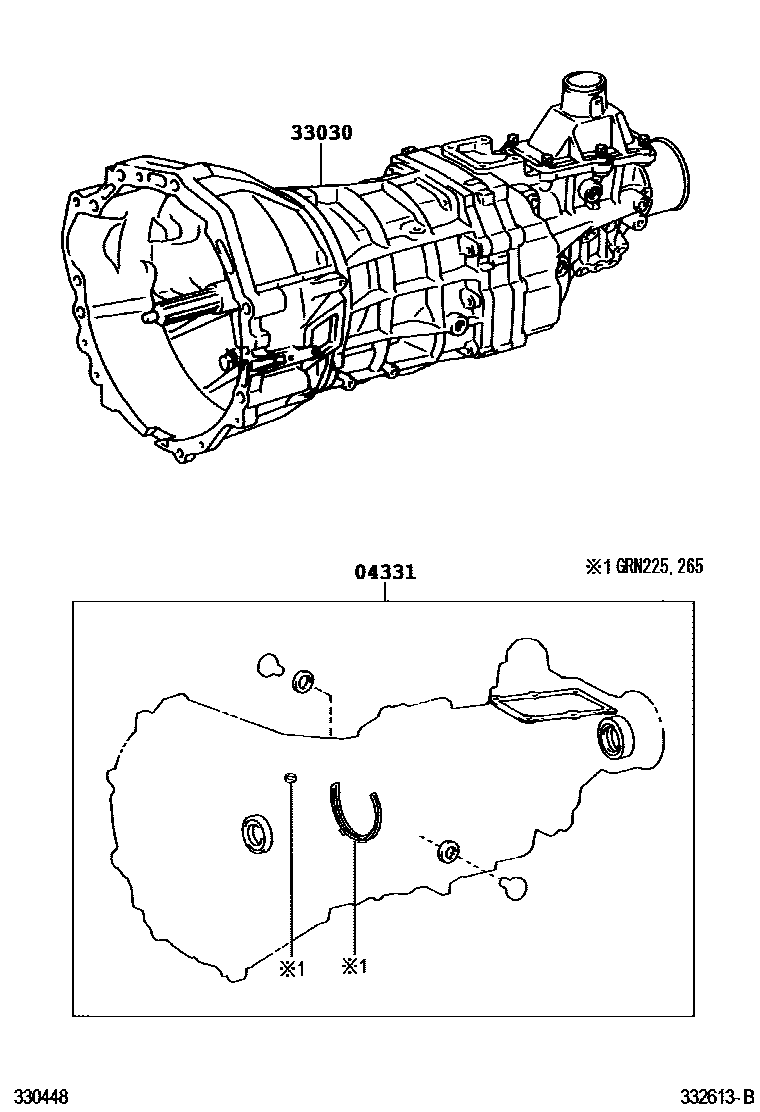

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-04010i201508-201909

main04331-26210i201101-201109

main04331-34050i200409-201102

main04331-34051i201102-201508

main04331-35220i200601-200705

main04331-35310i200409-200601

main04331-35350i200706-201101

main04331-60280i200409-200706

main04331-60290i200409-201508

main04331-60370i200707-201508

main04331-71200i201508-201711

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-04060i201508-201711

RC62F

main33030-04070i201711-201909

RC62F

main33030-35A00i200409-200506

RA60

main33030-35A01i200506-200708

RA60

main33030-35A02i200708-201508

RA60

main33030-35A10i200409-200506

RA60

main33030-35A11i200506-200708

RA60

main33030-35A12i200708-201006

RA60

main33030-35A20i200409-200506

RA60

main33030-35A21i200506-200708

RA60

main33030-35A22i200708-201508

RA60

main33030-35A30i200409-201305

R155

main33030-35A32i201305-201310

R155

main33030-35A33i201310-201508

R155

main33030-35A40i200409-201006

R155

main33030-35A50i200409-201305

R155F

main33030-35A52i201305-201310

R155F

main33030-35A53i201310-201508

R155F

main33030-35A90i201508-201711

R156

2 parts on this diagram · 4 diagrams in section
