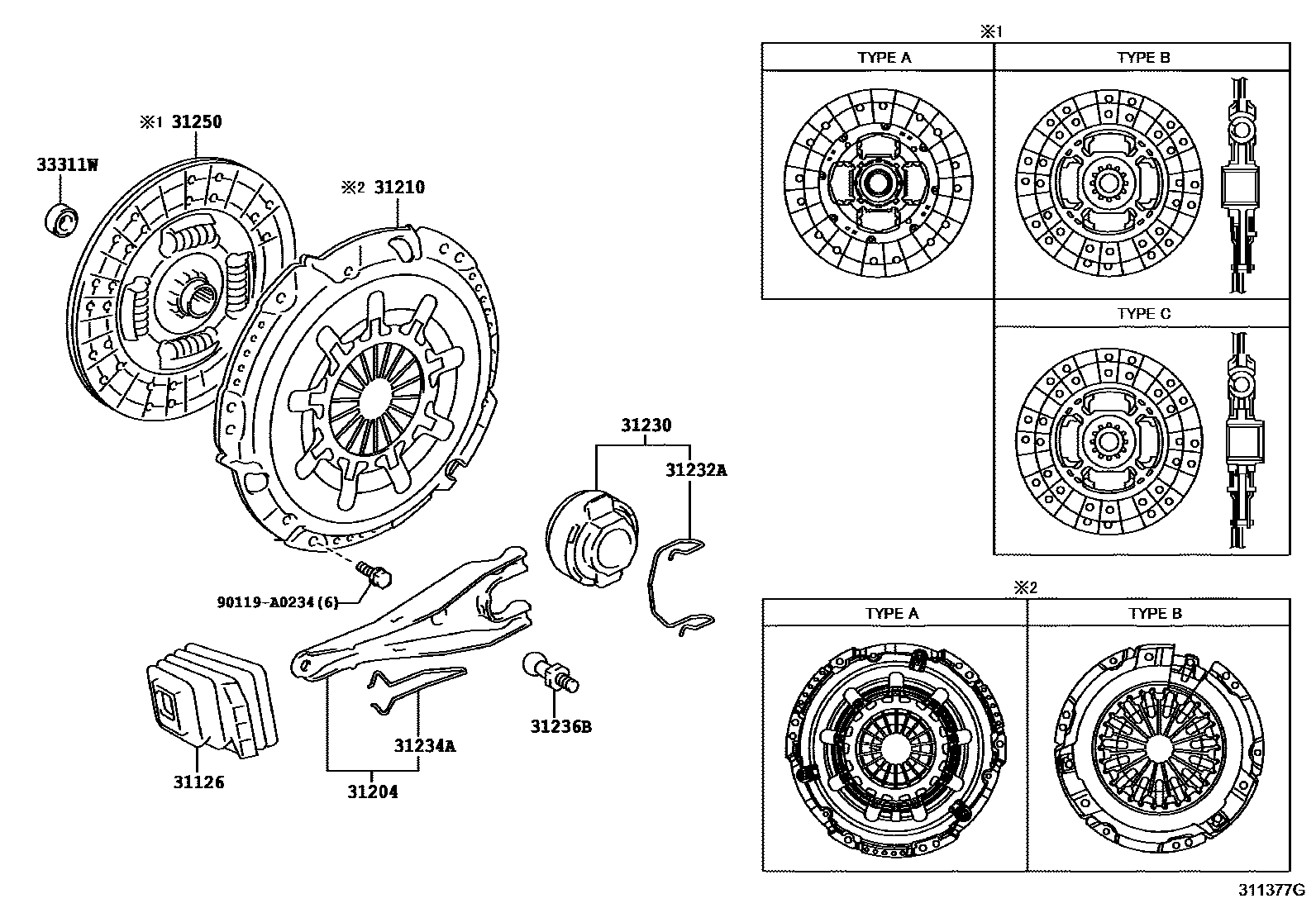

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
31234ASPRING, RELEASE FORK SUPPORT
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
33311WBEARING (FOR INPUT SHAFT)
90119A0234
main90119-A0234
10 parts on this diagram · 3 diagrams in section
