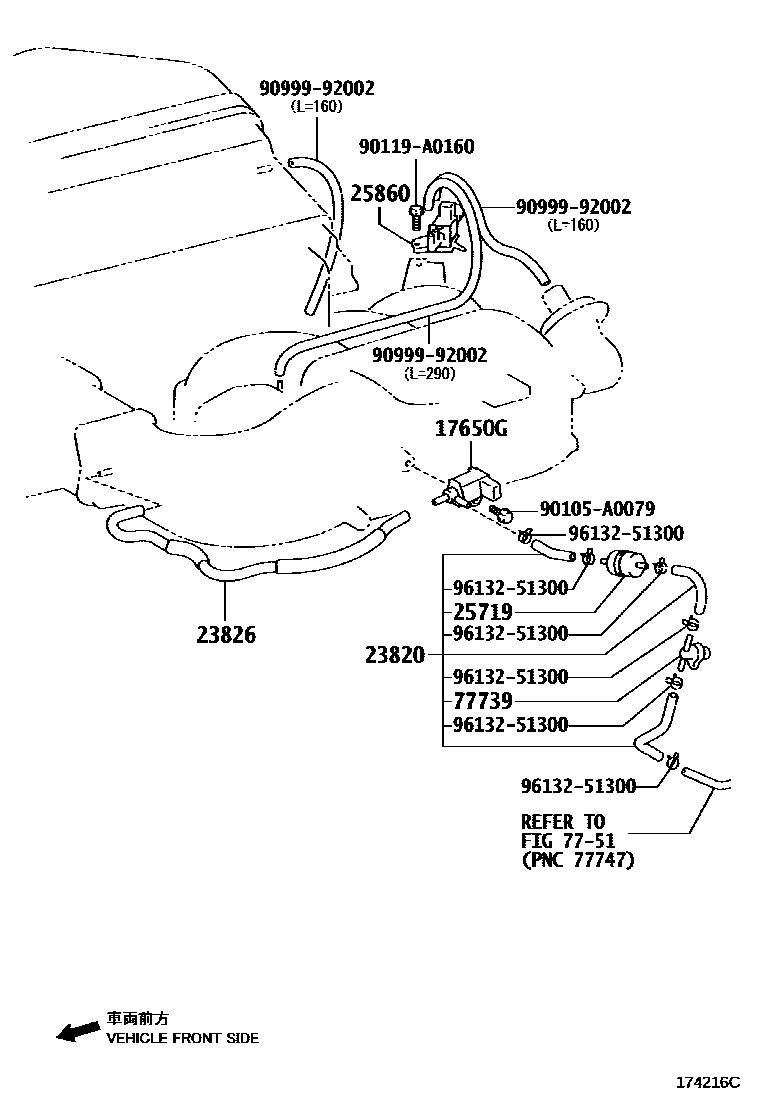

VACUUM PIPING

0001 1 0002 1 0003 1AIR INJECTION SYSTEM 0004 1 0005 1 0006 1 0007 1 0008 1

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1GRFE..GRN225,245,250,265,270201109-201508

MARK 90910-12276

main90910-AC001i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200805-201109

main90910-TC001i1GRFE..GRN225,245,250,265,270201109-201508

MARK 90910-TC001

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0C010i2TRFE..TRN22#,24#,26#200409-200509

main23820-0C011i2TRFE..TRN22#,24#,26#200509-200805

main23820-0P020i1GRFE..GRN225,245,250,265,270200409-200509

main23820-0P021i1GRFE..GRN265..6F200805-201006

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P010i1GRFE..GRN225,245,250,265,270200409-200805

main23826-0P160i1GRFE..GRN225,245,250,265,270201109-201508

NO.1

main23826-0P170i2TRFE..TRN245,265201909

main23826-0P180i1GRFE..GRN225,245,250,265,270201109-201508

NO.2

main23826-0P190i2GRFKS..GRN305,310,325,330201711-201909

NO.1

main23826-0P200i2GRFKS..GRN305,310,325,330201508-201711

NO.2

25719TANK, VACUUM SURGE

main25719-50040i1GRFE..GRN265..6F; 2TRFE..TRN26#200805-201006

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0P010i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200805-201109

main25860-0P090i2GRFKS..GRN305,310,325,330201710-201711

(L)

main25860-31110i2GRFKS..GRN305,310,325,330201710-201711

(J)

main90910-12262i2TRFE..TRN26#200805-201006

7751FUEL TANK & TUBE

→ Go to FIG 77-51

77739VALVE, EVAP SERVICE PORT

main77739-06010iGRN225,245,250,265,270; TRN22#,24#,26#200409-200509

90105A0079

main90105-A0079

90119A0160

main90119-A0160

9099992002

main90999-92002

9613251300

main96132-51300

11 parts on this diagram · 8 diagrams in section
