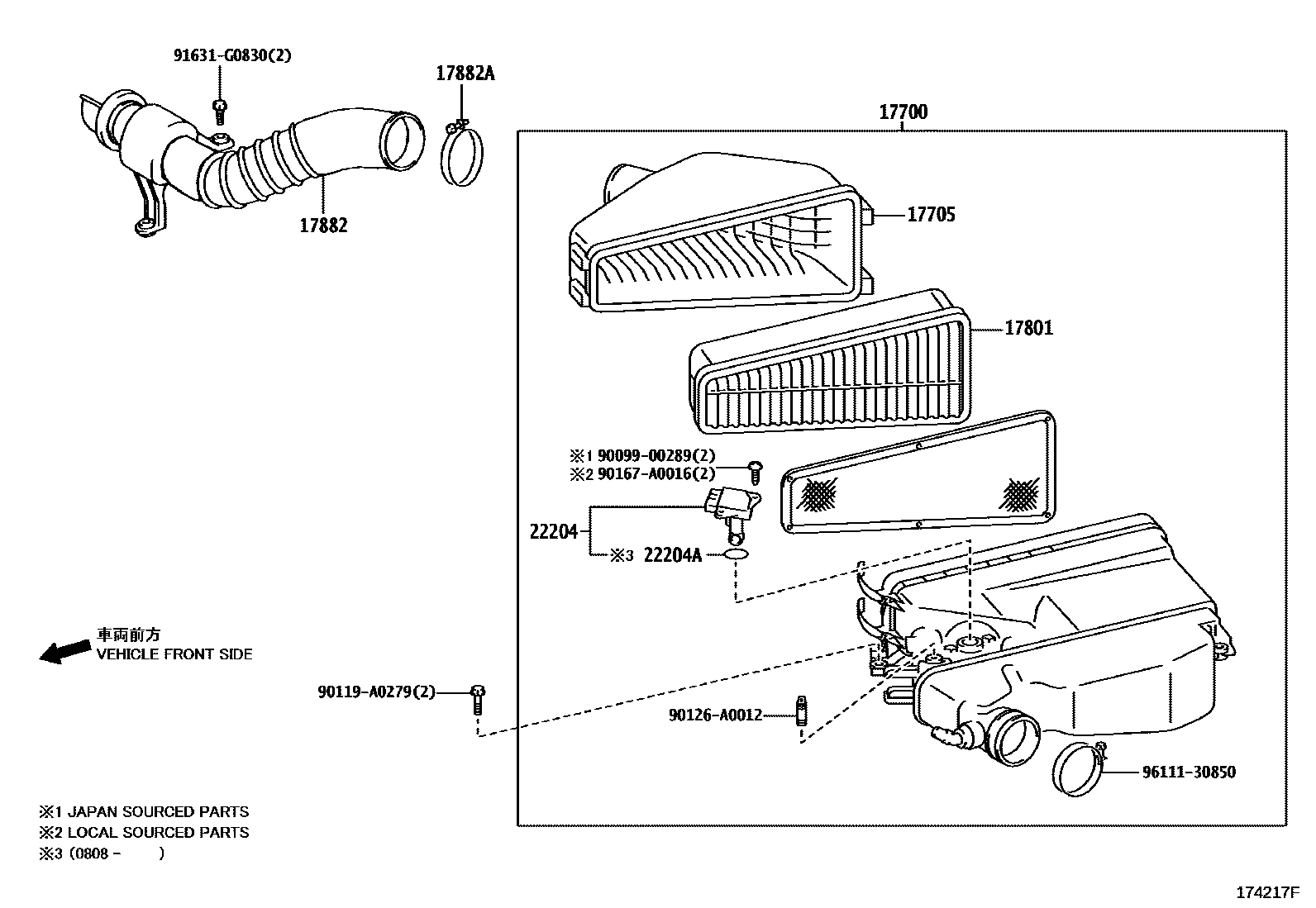

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-0C150i2TRFE..TRN22#,24#,26#200409-201005

main17700-0C151i2TRFE..TRN245,265201006-201909

main17700-0P010i1GRFE..GRN225,245,250,265,270200409-200604

sub17700-0P011

main17700-0P011i1GRFE..GRN225,245,250,265,270200605-200807

sub17700-0P012

main17700-0P012i1GRFE..GRN225,245,250,265,270200808-201002

sub17700-0P013

main17700-0P013i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270201003-201508

main17700-0P230i2GRFKS..GRN305,310,325,330201508-201909

17705CAP SUB-ASSY, AIR CLEANER

main17705-0C120i2TRFE..TRN22#,24#,26#200409-201005

sub17705-0C121

main17705-0C121i2TRFE..TRN245,265201006-201909

main17705-0P010i1GRFE..GRN225,245,250,265,270200409-201508

main17705-0P220i2GRFKS..GRN305,310,325,330201508-201909

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0C040i2TRFE..TRN245,265200409-201909

main17801-0P010i1GRFE..GRN225,245,250,265,270200409-201508

main17801-0P100i2GRFKS..GRN305,310,325,330201508-201909

17882HOSE, AIR CLEANER, NO.2

main17882-0P010i1GRFE..GRN225,245,250,265,270200409-201508

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-A0001i2GRFKS..GRN305,310,325,330201508-201909

main96111-31120i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200409-201508

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0D030i1GRFE..GRN225,245,250,265,270200409-200808

sub22204-22010

main22204-0F030i2TRFE..TRN26#200409-201909

main22204-22010i1GRFE..GRN265..6F200808-201508

main22204-75040i2GRFKS..GRN305,310,325,330201508-201909

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1GRFE..GRN265..6F200808-201508

9009900289

main90099-00289

90119A0279

main90119-A0279

90126A0012

main90126-A0012

90167A0016

main90167-A0016

91631G0830

main91631-G0830

9611130850

main96111-30850

13 parts on this diagram · 4 diagrams in section
