Toyota 675460 — EXHAUST PIPE

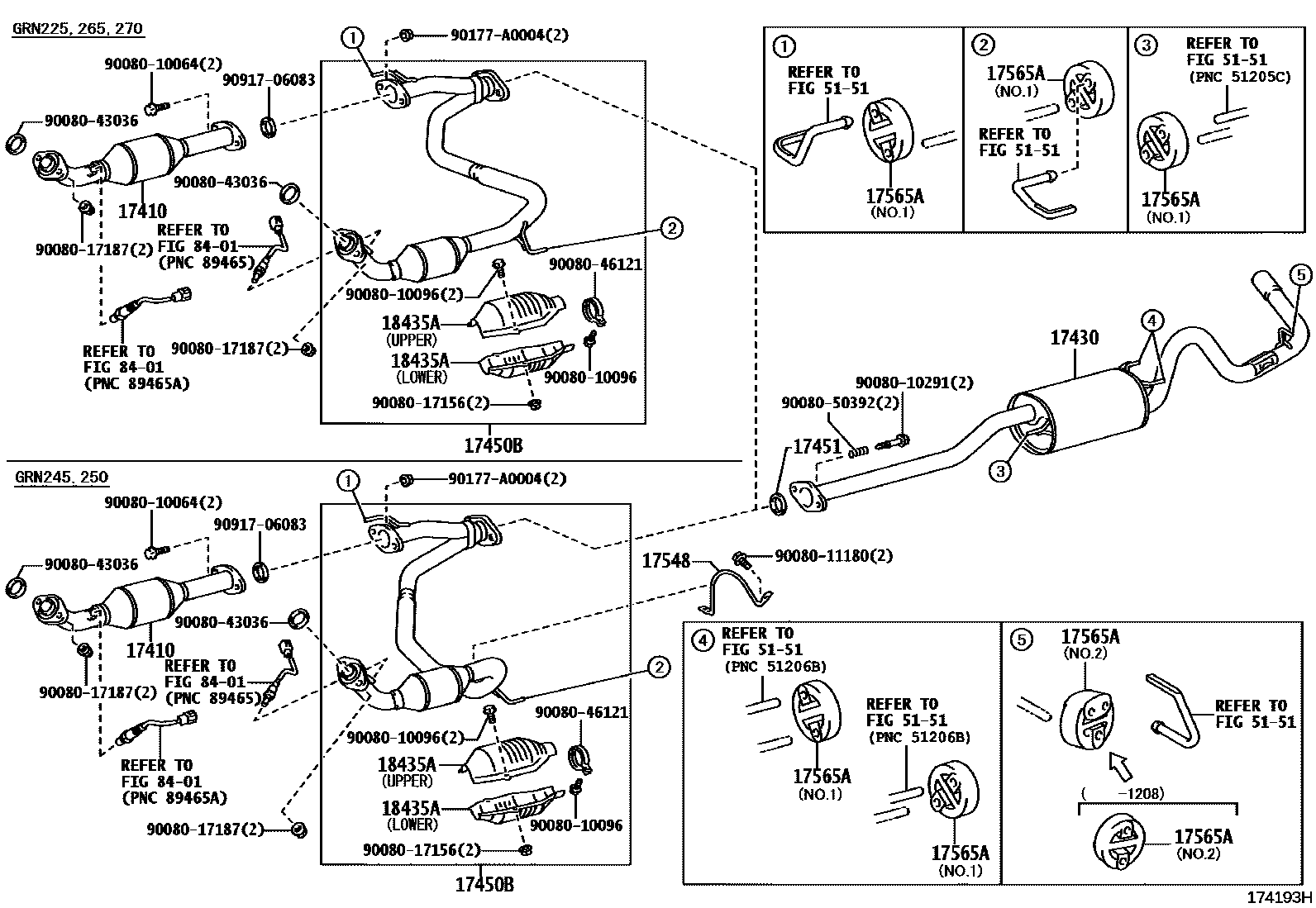

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

17430PIPE ASSY, EXHAUST, TAIL

17450BPIPE ASSY, EXHAUST, FRONT NO.2

17451GASKET, EXHAUST PIPE

17548BRACKET, EXHAUST PIPE STOPPER

17565SUPPORT, EXHAUST PIPE, NO.5

17565ASUPPORT, EXHAUST PIPE, NO.4

18435PROTECTOR, CATALYTIC CONVERTER

18435APROTECTOR, MONOLITHIC CONVERTER

5151FRAME

→ Go to FIG 51-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010064

9008010096

9008010291

9008011180

9008017156

9008017187

9008043036

9008046121

9008050392

90177A0004

9091706083

22 parts on this diagram · 4 diagrams in section

EXHAUST PIPE for Toyota 675460

This section contains 34 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 675460. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER, PIPE ASSY, EXHAUST, TAIL.
