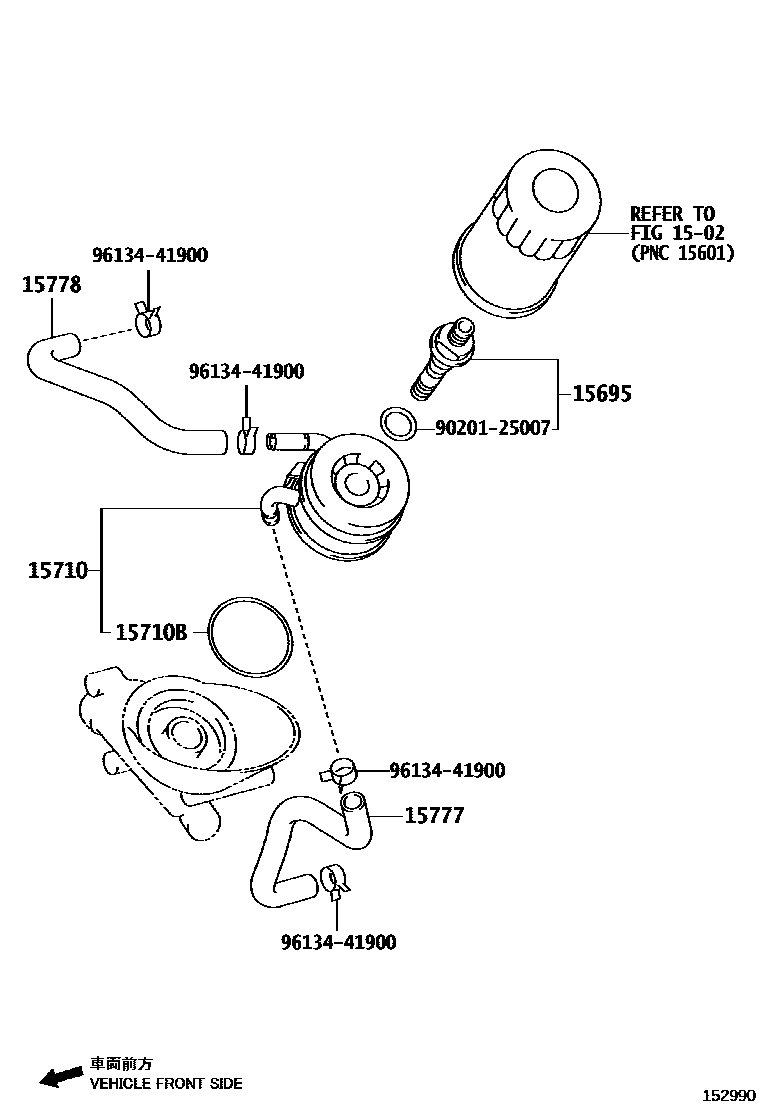

ENGINE OIL COOLER

0001 1 0002 1

1502OIL FILTER

→ Go to FIG 15-02

15695BOLT, OIL COOLER UNION

main15695-22010i1GRFE..GRN245,250,265,270200409-200805

TOWING PACKAGE-WITH

15710COOLER ASSY, OIL

main15710-0P020i2GRFKS..GRN305,310,325,330; 2GRFKS..GRN305,325..DCB..6FC..SR5201711-201909

TOWING PACKAGE-WITHOUT

main15710-31010i1GRFE..GRN245,250,265,270200409-200805

TOWING PACKAGE-WITH

15710BRING, O(FOR OIL COOLER)

main90301-67004i1GRFE..GRN265..5FC;1GRFE..GRN245,250,270200805-201109

TOWING PACKAGE-WITH

main96723-35035i2GRFKS..GRN305,310,325,330201508-201711

TOWING PACKAGE-WITH

15777HOSE, OIL COOLER

main15777-31010i1GRFE..GRN245,250,265,270200409-200805

TOWING PACKAGE-WITH

15778HOSE, OIL COOLER, NO.2

main15778-31010i1GRFE..GRN245,250,265,270200409-200805

TOWING PACKAGE-WITH

9020125007

main90201-25007

9613441900

main96134-41900

8 parts on this diagram · 2 diagrams in section
