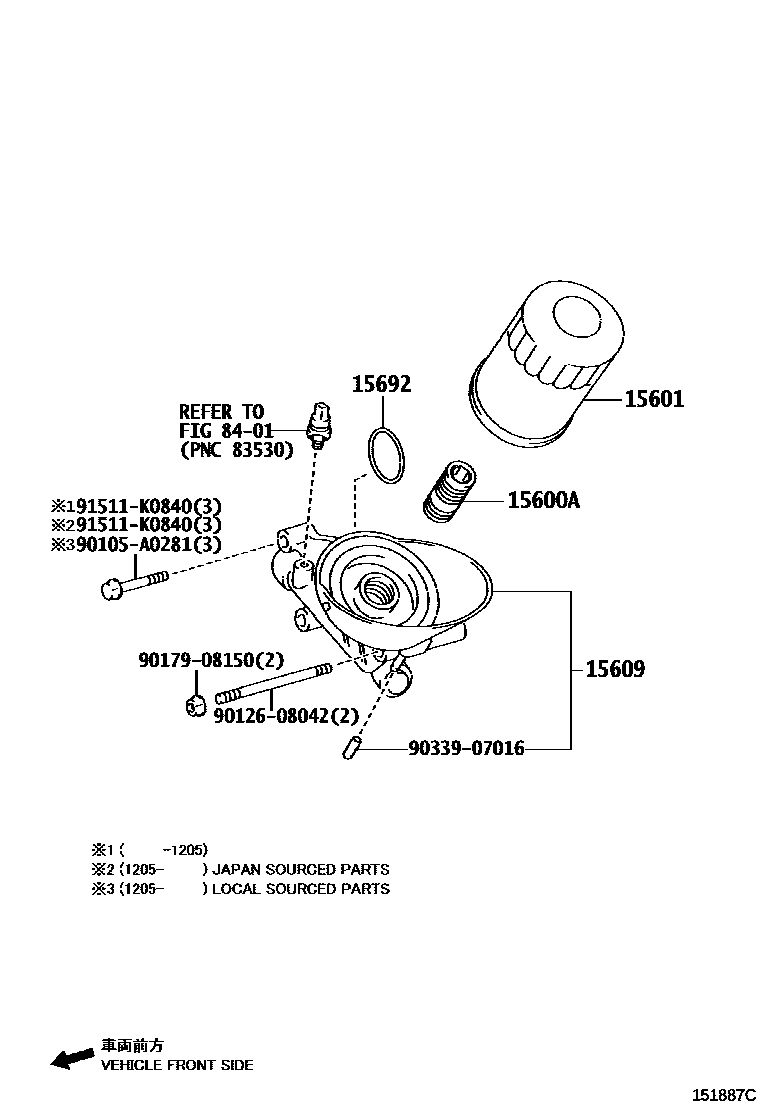

OIL FILTER

0001 1 0002 1 0003 1

15600AUNION(FOR OIL FILTER)

main90404-19013i1GRFE..GRN225,245,250,265,270200409-200807

main90404-19015i2TRFE..TRN22#,24#,26#200805-200907

main90404-19015i2TRFE..TRN22#,24#,26#200409-200805

NO.1

main90404-19017i2TRFE..TRN22#,24#,26#200409-201909

NO.2

main90404-19021i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200807-201508

main90404-19022i2TRFE..TRN225,245,265200907-201508

main90404-19022i2TRFE..TRN245,265201508-201909

NO.1

15601FILTER SUB-ASSY, OIL

main90915-20003i2TRFE..TRN245,265200409-202008

main90915-20004i1GRFE..GRN265..6F200409-201508

main90915-20005i2TRFE..TRN245,265202009

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0P010i2GRFKS..GRN305,310,325,330201711-201909

main15609-0P020i2GRFKS..GRN305,310,325,330201508-201711

main15609-75070i2TRFE..TRN225,245,265200409-201909

main15670-31010i1GRFE..GRN225,245,250,265,270200409-201508

15692GASKET, OIL FILTER BRACKET

main15692-0P010i2GRFKS..GRN305,310,325,330201508-201909

main15692-31010i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200409-201508

main15692-75011i2TRFE..TRN245,265200409-201909

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105A0281

main90105-A0281

9012608042

main90126-08042

9017908150

main90179-08150

9033907016

main90339-07016

91511K0840

main91511-K0840

10 parts on this diagram · 3 diagrams in section
