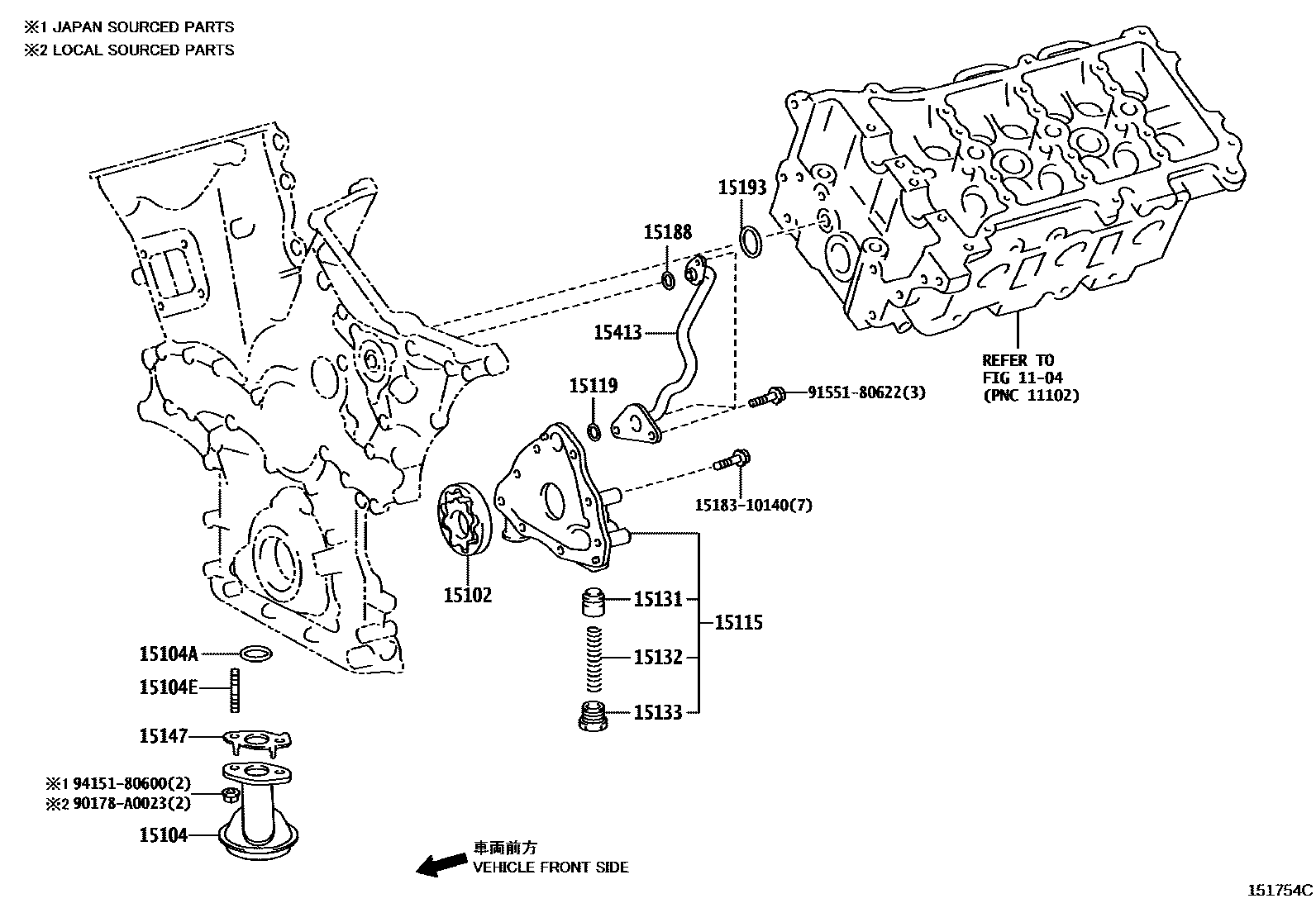

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

1104CYLINDER HEAD

→ Go to FIG 11-04

15102ROTOR SET, OIL PUMP

main15103-0P010i1GRFE..GRN225,245,250,265,270200509-200805

(L)

main15103-0P010i1GRFE..GRN265..6F200805-201508

main15103-31050i1GRFE..GRN225,245,250,265,270200409-200805

(J)

15104STRAINER SUB-ASSY, OIL

main15104-0P020i2GRFKS..GRN305,310,325,330201508-201909

main15104-31050i1GRFE..GRN225,245,250,265,270200409-201006

main15104-31140i1GRFE..GRN225,245,250,265,270201006-201508

main15104-75120i2TRFE..TRN22#,24#;2TRFE..TRN265..4FC200409-201107

main15104-75200i2TRFE..TRN22#,24#,265201107-201411

main15104-75210i2TRFE..TRN245,265201411-202212

main15104-75211i2TRFE..TRN245,265202301

15104ARING, O(FOR OIL STRAINER)

main96722-24030i1GRFE..GRN265..6F200409-201508

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06127i1GRFE..GRN225,245,250,265,270200409-200411

main90126-06029i1GRFE..GRN225,245,250,265,270200411-201311

main90126-06029i1GRFE..GRN225,245,250,265,270201311-201508

(J)

main90126-08037i2TRFE..TRN22#,24#,26#200409-201107

main90126-08052i2TRFE..TRN220,240201107-201411

main90126-A0014i1GRFE..GRN225,245,250,265,270201311-201508

(L)

15115COVER, OIL PUMP

main15115-0P010i1GRFE..GRN225,245,250,265,270200508-200805

(L)

main15115-0P010i1GRFE..GRN265..6F200805-201508

main15115-31050i1GRFE..GRN225,245,250,265,270200409-200805

(J)

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GRN225,245,250,265,270200409-201508

15131VALVE, OIL PUMP RELIEF

main15131-0A040i1GRFE..GRN225,245,250,265,270200805-201508

main15131-0A040i1GRFE..GRN225,245,250,265,270200508-200805

(L)

main15131-31100i2GRFKS..GRN305,310,325,330201508-201909

main15131-46040i2TRFE..TRN220,240200805-201909

main15131-46040i1GRFE..GRN225,245,250,265,270200409-200805

(J)

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0A020i1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270200805-201508

main15132-0A020i1GRFE..GRN225,245,250,265,270200508-200805

(L)

main15132-31100i2GRFKS..GRN305,310,325,330201508-201909

main15132-46020i1GRFE..GRN225,245,250,265,270200409-200805

(J)

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i1GRFE..GRN225,245,250,265,270200409-201508

main15133-31100i2GRFKS..GRN305,310,325,330201508-201909

main15133-33040i2TRFE..TRN225,245,265201411-201909

15147GASKET, OIL STRAINER

main15147-0P030i2GRFKS..GRN305,310,325,330201508-201909

main15147-31070i2TRFE..TRN225,245,265201006-201508

main15147-46010i1GRFE..GRN225,245,250,265,270200409-200805

(J)

main15147-75030i2TRFE..TRN22#,24#;2TRFE..TRN265..4FC200409-201107

main15147-75040i2TRFE..TRN245,265201411-201710

main15147-75041i2TRFE..TRN245,265201711-202301

main15147-75042i2TRFE..TRN245,265202301

main15147-AD010i1GRFE..GRN225,245,250,265,270200805-201006

main15147-AD010i1GRFE..GRN225,245,250,265,270200508-200805

(L)

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GRN225,245,250,265,270200409-201508

15193GASKET, OIL PUMP

main15193-31010i1GRFE..GRN225,245,250,265,270200409-201508

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GRN265..6F200409-201508

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

90178A0023

main90178-A0023

9155180622

main91551-80622

9415180600

main94151-80600

18 parts on this diagram · 6 diagrams in section
