CAMSHAFT & VALVE

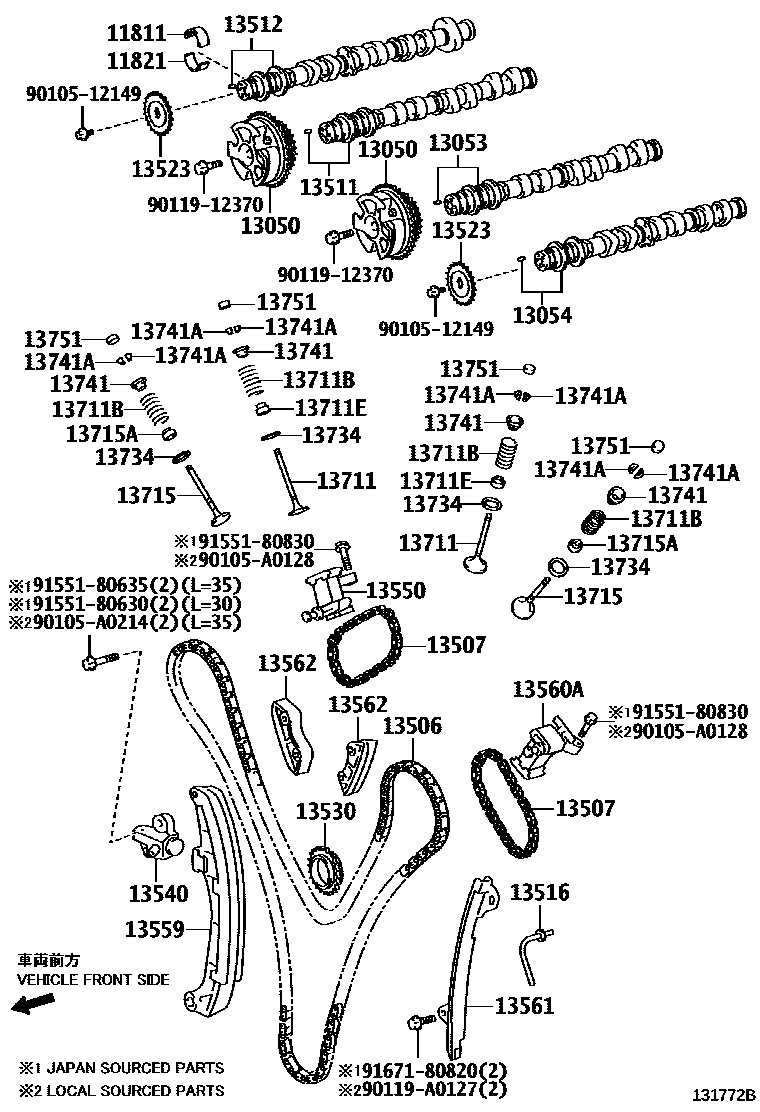

Parts diagram
11811BEARING, CAMSHAFT, NO.1
main11811-31020i200409-200411
main11811-31021i200411-201508
11821BEARING, CAMSHAFT, NO.2
main11821-28010-02i200409-201508
MARK 2
13050GEAR ASSY, CAMSHAFT TIMING
main13050-0P010i200805-201508
main13050-0P010i200508-200805
(L)
main13050-0P080i201508-201609
main13050-0P081i201610-201909
main13050-31030i200409-200805
(J)
main13050-75010i200409-201205
main13050-75030i201205-201508
main13050-75040i201508-201909
13053CAMSHAFT SUB-ASSY, NO.3
main13053-0P030i201508-201909
main13053-31010i200409-201508
13054CAMSHAFT SUB-ASSY, NO.4
main13054-0P030i201508-201909
main13054-31010i200409-201508
13506CHAIN SUB-ASSY
main13506-0P030i201508-201909
main13506-31010i200409-200805
(J)
main13506-75050i200409-201405
main13506-75070i201405-201909
main13506-AD010i200508-200805
(L)
main13506-AD010i200805-201508
13507CHAIN SUB-ASSY, NO.2
main13507-0P010i201508-201909
main13507-31010i200409-200805
(J)
main13507-75030i200409-201909
main13507-AD010i200508-200805
(L)
main13507-AD010i200805-201508
13511CAMSHAFT
main13501-0P030i201508-201909
main13501-31040i200409-201508
main13501-75060i200409-200810
main13501-75060i200810-201403
W/O(MARK)
main13501-75061i201404-202001
W/O(MARK)
main13501-75061i201508-201908
main13501-75070i200810-201401
W(MARK)
main13501-75071i201401-201508
W(MARK)
13512CAMSHAFT, NO.2
main13502-0P030i201508-201909
main13502-31010i200409-201508
main13502-75050i200409-200810
main13502-75050i200810-201508
W/O(MARK)
main13502-75060i200810-201508
W(MARK)
main13502-75070i201508-201908
main13502-75070i201909-202001
W(MARK)
main13502-75080i202001
W(MARK)
13516JET, OIL
main13516-31010i200409-200805
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-31030i200409-200805
(J)
main13523-75030i200409-201508
main13523-AD010i200805-201508
main13523-AD010i200508-200805
(L)
13530SPROCKET ASSY, IDLE
main13530-0P010i200508-200802
(L)
main13530-0P011i200805-201508
main13530-0P011i200802-200805
(L)
main13530-31010i200409-200712
(J)
main13530-31011i200712-200805
(J)
main13530-31040i201508-202006
main13530-31050i202007
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0P030i201508-201909
main13540-31010i200409-200604
(J)
main13540-31011i200604-200805
(J)
main13540-75030i200409-201411
main13540-75040i201411-201507
main13540-75041i201508-201909
main13540-AD010i200508-200605
(L)
main13540-AD011i200605-200805
(L)
main13540-AD011i200805-201508
13550TENSIONER ASSY, CHAIN, NO.2
main13550-0P030i201508-201909
main13550-31010i200409-200805
(J)
main13550-75010i200409-201909
main13550-AD010i200805-201508
main13550-AD010i200508-200805
(L)
13559SLIPPER, CHAIN TENSIONER
main13559-0P030i201508-201909
main13559-31010i200409-200805
(J)
main13559-75040i200409-201405
main13559-75060i201405-201909
main13559-AD010i200805-201508
main13559-AD010i200508-200805
(L)
13560ATENSIONER ASSY, CHAIN, NO.3
main13560-0P030i201508-201909
main13560-31010i200409-200805
(J)
main13560-AD010i200805-201508
main13560-AD010i200508-200805
(L)
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0P030i201508-201909
main13561-31010i200409-200805
(J)
main13561-75040i200409-201405
main13561-75060i201405-201909
main13561-AD010i200805-201508
main13561-AD010i200508-200805
(L)
13562DAMPER, CHAIN VIBRATION, NO.2
main13562-0P030i201508-201909
main13562-31010i200409-200805
(J)
main13562-75010i200409-201909
main13562-AD010i200508-200805
(L)
main13562-AD010i200805-201508
13711VALVE, INTAKE
main13711-0P030i201508-201909
main13711-31070i200409-201508
main13711-75110i200409-201901
main13711-75130i201902-201909
13711BSPRING, COMPRESSION(FOR INNER)
main90501-30032i201405-201909
main90501-32055i200409-201405
main90501-A0138i201508-201909
main90905-01087i200409-201508
13711ESEAL, INTAKE VALVE STEM OIL
main90080-31043i201508-201909
main90913-02101i200409-201508
13715VALVE, EXHAUST
main13715-0P030i201701-201909
(L)
main13715-31090i200409-201508
main13715-31150i201701-201909
(J)
main13715-31150i201508-201701
main13715-75100i200409-201304
main13715-75140i201304-201909
13715ASEAL, EXHAUST VALVE STEM OIL
main90080-31101i201508-201909
main90913-02112i200409-201508
13734SEAT, VALVE SPRING
main13734-0P010i202305
(L)
main13734-0P010i201508-202305
main13734-62020i200409-201909
main13734-62020i202305
(J)
13741RETAINER, VALVE SPRING
main13741-0P020i201508-201909
main13741-20020i200409-200508
main13741-20021i200506-201508
main13741-36010i201405-201909
13741ALOCK, VALVE SPRING RETAINER
main90913-03028i200409-201909
main90913-A3001i201508-201909
13751LIFTER, VALVE
main13751-46030i200409-201508
T=5.06
main13751-46040i200409-201508
T=5.08
main13751-46050i200409-201508
T=5.10
main13751-46060i200409-201508
T=5.12
main13751-46070i200409-201508
T=5.14
main13751-46080i200409-201508
T=5.16
main13751-46090i200409-201508
T=5.18
main13751-46100i200409-201508
T=5.20
main13751-46110i200409-201508
T=5.22
main13751-46120i200409-201508
T=5.24
main13751-46130i200409-201508
T=5.26
main13751-46140i200409-201508
T=5.28
main13751-46150i200409-201508
T=5.30
main13751-46160i200409-201508
T=5.32
main13751-46170i200409-201508
T=5.34
main13751-46180i200409-201508
T=5.36
main13751-46190i200409-201508
T=5.38
main13751-46200i200409-201508
T=5.40
main13751-46210i200409-201508
T=5.42
main13751-46220i200409-201508
T=5.44
main13751-46230i200409-201508
T=5.46
main13751-46240i200409-201508
T=5.48
main13751-46250i200409-201508
T=5.50
main13751-46260i200409-201508
T=5.52
main13751-46270i200409-201508
T=5.54
main13751-46280i200409-201508
T=5.56
main13751-46290i200409-201508
T=5.58
main13751-46300i200409-201508
T=5.60
main13751-46310i200409-201508
T=5.62
main13751-46320i200409-201508
T=5.64
main13751-46330i200409-201508
T=5.66
main13751-46340i200409-201508
T=5.68
main13751-46350i200409-201508
T=5.70
main13751-46360i200409-201508
T=5.72
main13751-46370i200409-201508
T=5.74
9010512149
main90105-12149
90105A0128
main90105-A0128
90105A0214
main90105-A0214
9011912370
main90119-12370
90119A0127
main90119-A0127
9155180630
main91551-80630
9155180635
main91551-80635
9155180830
main91551-80830
9167180820
main91671-80820

36 parts on this diagram · 5 diagrams in section
