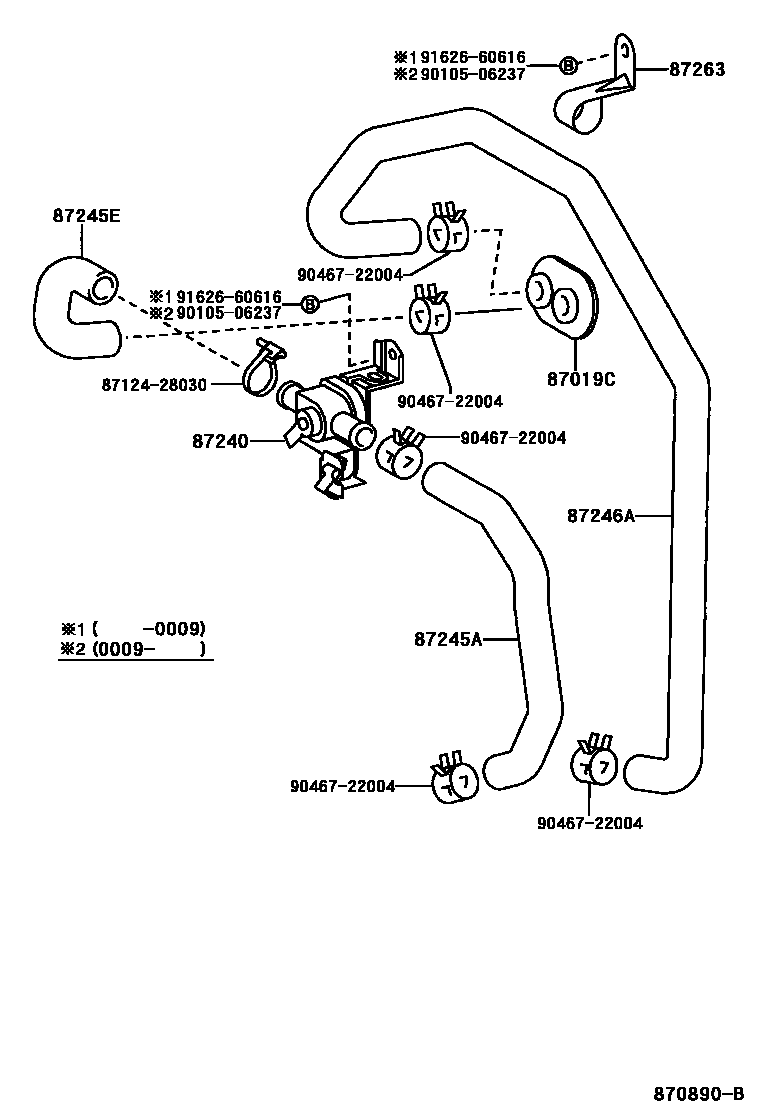

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01405iRZN161,171,VZN160,170199501-200009

87240VALVE ASSY, HEATER WATER

main87240-04020iRZN161,171,VZN160,170199501-200009

main87240-04030iRZN161,171,VZN170200009

87245AHOSE, HEATER WATER, INLET A

main87245-04110iRZN161,171199501-200009

main87245-04130iVZN170200009

87245EHOSE, HEATER WATER, INLET E

main87245-04150iRZN161,171,VZN160,170199501-200009

87246AHOSE, HEATER WATER, OUTLET A

main87245-04120iRZN161,171199501-200009

main87245-04140iVZN160,170199501-200009

main87245-04160iRZN161,171200009

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-04010iRZN161,171200009

8712428030CLAMP, HEATER

main87124-28030

9010506237

main90105-06237

9046722004

main90467-22004

9162660616

main91626-60616

10 parts on this diagram · 2 diagrams in section
