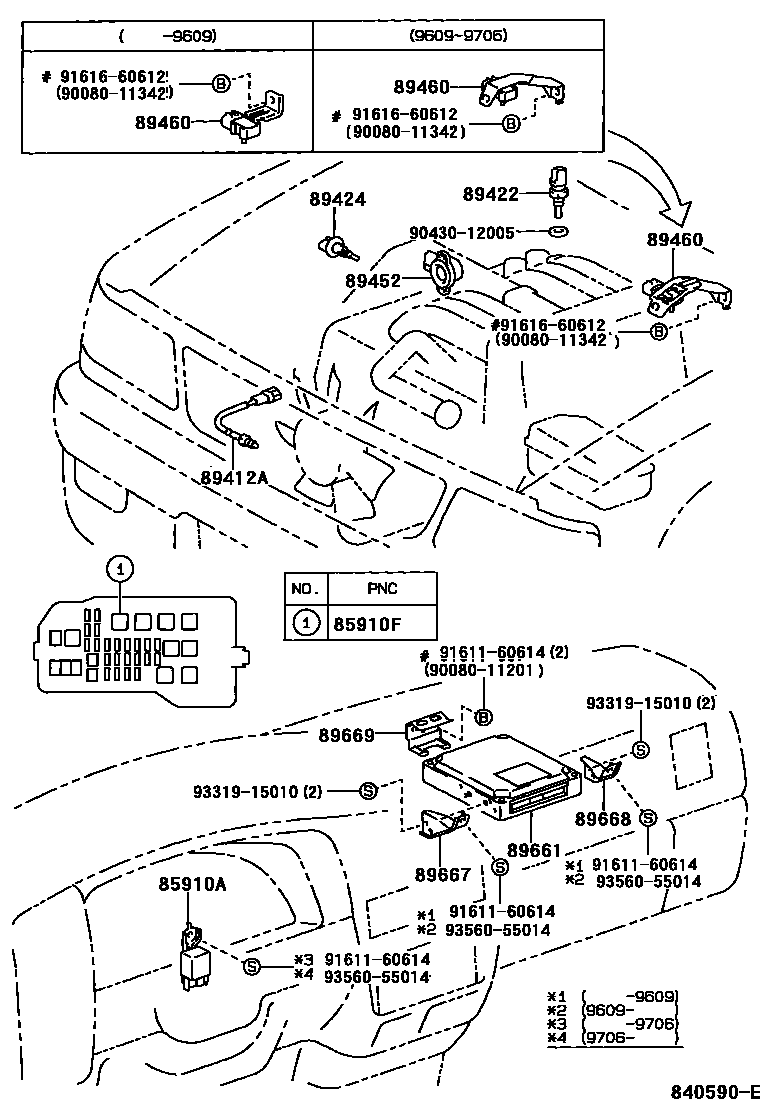

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-35030iRZN161,171,VZN160,170199501-199706

main85910-35040iRZN161,171,VZN170199706-200009

85910FRELAY, COMPUTER (FOR EFI)

main90084-98009iRZN161,171,VZN160,170199501-199509

main90084-98031×2iRZN161,171,VZN170200009

DENSO USA

main90987-02009iRZN161,171,VZN160,170199509-199706

NIPPONDENSO

main90987-02012iRZN161,171,VZN170199706-199810

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iRZN161,171199501-200009

main89412-35010iVZN160199501-199706

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iRZN161,171,VZN160,170199501-200009

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZN161,171199501-199706

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRZN161,171,VZN160,170199501-199609

main89452-35020iRZN161,171,VZN170200009-200209

89460SENSOR ASSY, VAPOR PRESSURE

main89460-04010iRZN161,171,VZN170199706-200009

main89460-04020iRZN161,171,VZN170200009-200109

main89460-35010iRZN161,171,VZN160,170199509-199609

main89460-35030iRZN161,171,VZN160,170199609-199706

main89461-02030iRZN161,171,VZN170200109-200409

89661COMPUTER, ENGINE CONTROL

main89661-04050iRZN161,171..W199501-199505

main89661-04051iRZN161,171..W199505-199509

main89661-04060iRZN161,171..4FC199501-199509

main89661-04070iRZN161,171..W199501-199505

CALIFORNIA SPEC

main89661-04080iRZN161,171..4FC199501-199509

CALIFORNIA SPEC

main89661-04090iVZN160199501-199509

main89661-04100iVZN170..4FC199501-199509

main89661-04110iVZN160199501-199509

CALIFORNIA SPEC

main89661-04120iVZN170..4FC199501-199509

CALIFORNIA SPEC

main89661-04130iVZN170..R199501-199509

main89661-04140iVZN170..R199501-199509

CALIFORNIA SPEC

main89661-04190iRZN161,171..W199509-199609

main89661-04200iRZN161,171..4FC199509-199609

main89661-04210iVZN160199509-199609

main89661-04220iVZN170..R199509-199609

main89661-04230iVZN170..4FC199509-199609

main89661-04260iRZN161,171..W199609-199706

main89661-04270iRZN161,171..4FC199609-199706

main89661-04300iVZN160199609-199706

main89661-04310iVZN170..R199609-199706

main89661-04320iVZN170..4FC199609-199701

main89661-04321iVZN170..4FC199701-199706

main89661-04370iRZN161,171..W199706-199710

main89661-04371iRZN161,171..W199710-199803

main89661-04372iRZN161,171..W199803-199808

main89661-04380iRZN161,171..4FC199706-199710

main89661-04381iRZN161,171..4FC199710-199802

main89661-04382iRZN161,171..4FC199802-199808

main89661-04410iVZN170..R199706-199710

main89661-04411iVZN170..R199710-199803

main89661-04412iVZN170..R199803-199808

main89661-04420iVZN170..4FC199706-199710

main89661-04421iVZN170..4FC199710-199808

main89661-04450iVZN170..R199808-199908

main89661-04460iVZN170..4FC199808-199908

main89661-04490iRZN161,171..W199808-199908

main89661-04500iRZN161,171..4FC199808-199908

main89661-04570iRZN161,171..W199908-200009

main89661-04580iRZN161,171..4FC199908-200009

main89661-04620iRZN161,171..W199908-199910

CALIFORNIA(LEV) SPEC

main89661-04621iRZN161,171..W199910-200009

CALIFORNIA(LEV) SPEC

main89661-04630iRZN161,171..4FC199908-199910

CALIFORNIA(LEV) SPEC

main89661-04631iRZN161,171..4FC199910-200009

CALIFORNIA(LEV) SPEC

main89661-04670iVZN170..R199908-200009

CALIFORNIA(LEV) SPEC

main89661-04680iVZN170..4FC199908-200009

CALIFORNIA(LEV) SPEC

main89661-04690iVZN170..R199908-200002

main89661-04691iVZN170..R200002-200009

main89661-04700iVZN170..4FC199908-200002

main89661-04701iVZN170..4FC200002-200009

main89661-04770iRZN161,171..W200009-200109

main89661-04780iRZN161,171..4FC200009-200109

main89661-04810iVZN170..R200009-200011

main89661-04811iVZN170..R200011-200109

main89661-04820iVZN170..4FC200009-200011

main89661-04821iVZN170..4FC200011-200109

main89661-04830iVZN170..R200309-200409

main89661-04860iRZN161,171..W200109-200209

main89661-04870iRZN161,171..4FC200109-200209

main89661-04B20iRZN161,171..W200309-200409

main89661-04B30iRZN161,171..4FC200309-200409

main89661-0Y010iVZN170..R200209-200309

main89661-0Y020iVZN170..4FC200209-200212

main89661-0Y021iVZN170..4FC200212-200309

main89661-0Y060iRZN161,171..W200209-200211

main89661-0Y061iRZN161,171..W200211-200309

main89661-0Y080iRZN161,171..4FC200209-200211

main89661-0Y081iRZN161,171..4FC200211-200309

main89666-04010iVZN170..R200109-200209

main89666-04020iVZN170..4FC200109-200209

main89666-04040iVZN170..4FC200309-200409

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35050iRZN161,171,VZN160,170199501-199609

main89667-35080iRZN161,171199609-199706

main89667-35120iRZN161,171199908-200009

CALIFORNIA(LEV) SPEC

main89667-60120iVZN160,170199609-199706

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35080iRZN161,171,VZN160,170199501-199609

main89668-35120iVZN170..R;RZN161,171199803-199808

main89668-35150iRZN161,171199908-200009

CALIFORNIA(LEV) SPEC

main89668-35180iVZN170200109

main89668-60130iVZN160,170199609-199706

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35050iRZN161,171,VZN160,170199501-199609

main89669-35060iRZN161,171199609-199706

main89669-35080iRZN161,171,VZN170199712-199803

main89669-35090iVZN170200109

9008011201

main90080-11201

9008011342

main90080-11342

9043012005

main90430-12005

9161160614

main91611-60614

9161660612

main91616-60612

9331915010

main93319-15010

9356055014

main93560-55014

18 parts on this diagram · 4 diagrams in section
