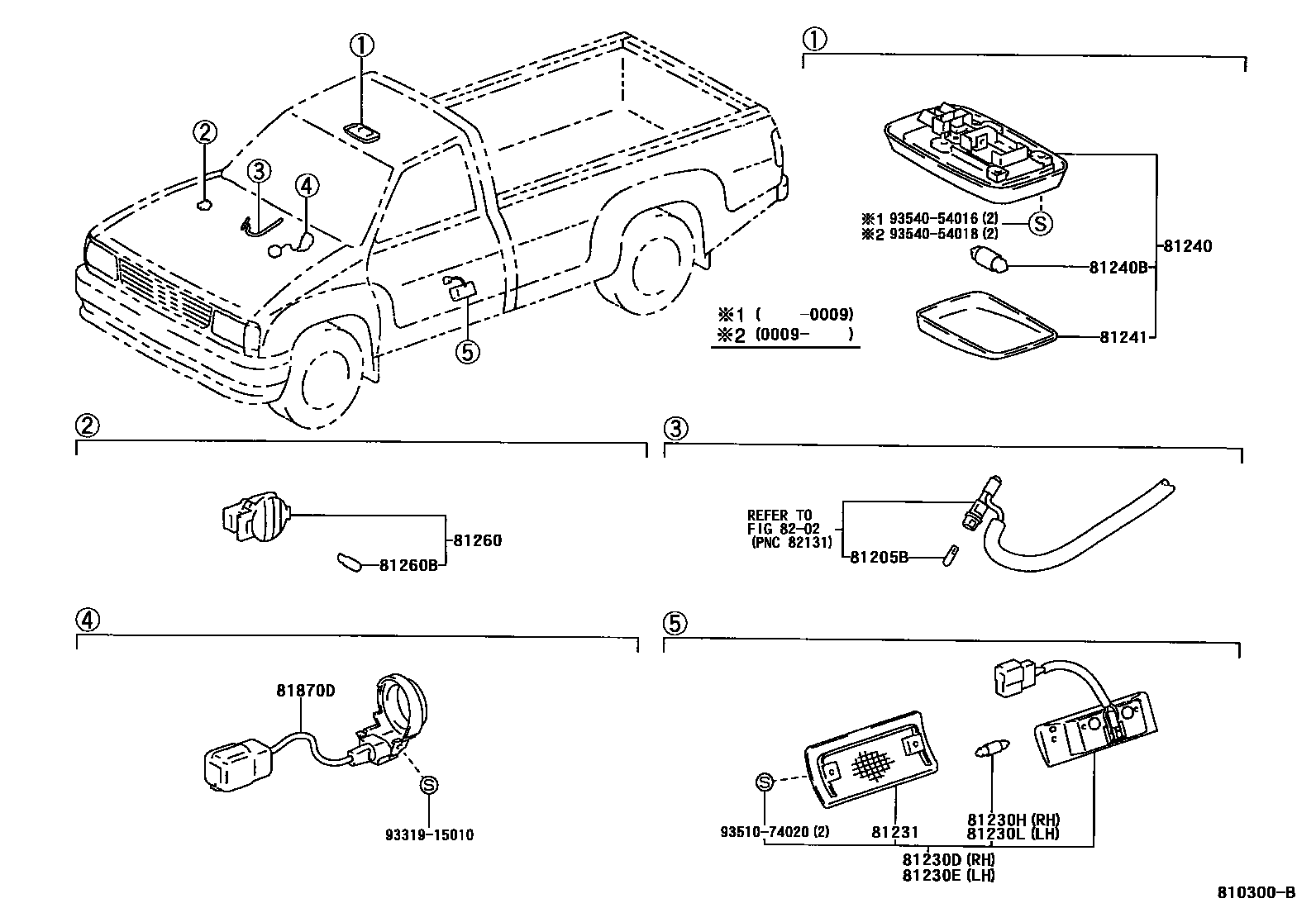

INTERIOR LAMP
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W,W(CRUISE CONTROL) OR W(POWER DOOR LOCK & POWER WINDOW)
14V 1.4W
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
12V 3W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
12V 3W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
MOON MIST,TRIM1#,NAL
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
LT.BLUISH GRAY,TRIM1#
OAK,TRIM4#
MOON MIST,TRIM1#
MD.OAK,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
ICHIKO
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81870DLAMP ASSY, KEY CYLINDER
8202WIRING & CLAMP
9331915010
main93319-15010
9351074020
main93510-74020
9354054016
main93540-54016
9354054018
main93540-54018
17 parts on this diagram · 1 diagram in section
