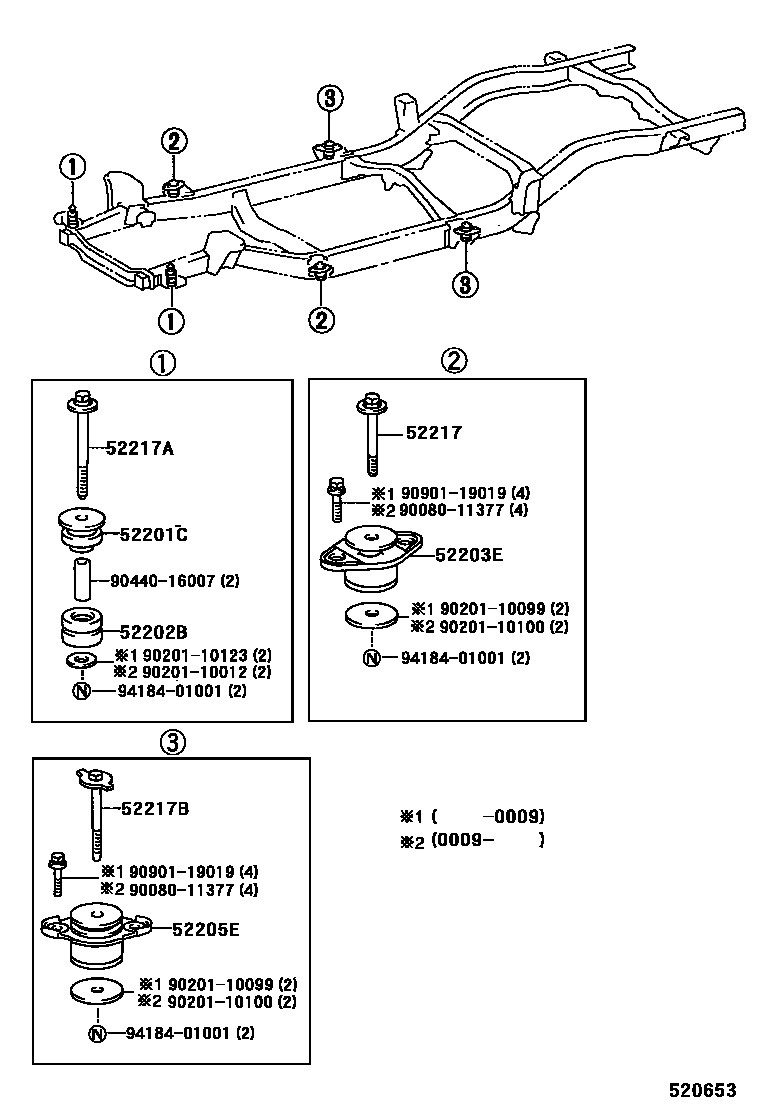

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-04010×2iRZN161,171,VZN170199706-200009

main52201-35080×2iRZN161,171,VZN160,170199501-199706

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-04010×2iRZN161,171,VZN170200009

main52202-35070×2iRZN161,171,VZN160,170199501-199706

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-04010×2iRZN161199706-200009

main52203-04020×2iRZN171,VZN170199706-200009

main52203-04040×2iRZN161200009

main52203-04060×2iRZN171,VZN170..XTR200009

main52203-04080×2iVZN170..DCB200009

main52203-35180×2iRZN161,VZN160199501-199706

main52203-35190×2iRZN171,VZN170199501-199706

52205ECUSHION SUB-ASSY, CAB MOUNTING, NO.3

main52205-04030×2iRZN161200009

main52205-04040×2iRZN171,VZN170..XTR200009

main52205-04060×2iVZN170..DCB200009

main52205-35110×2iRZN171,VZN170199501-199512

main52205-35120×2iRZN161199706-200009

(J)

main52205-35140×2iRZN171,VZN170199512-199706

52217BOLT, BODY MOUNTING

main52217-04010×2iRZN161,171,VZN170200009

main52217-35020×2iRZN161,171,VZN160,170199501-200009

52217ABOLT, BODY MOUNTING

main52217-04010×2iRZN161,171,VZN170200009

main52217-35010×2iRZN161,171,VZN160,170199501-200009

52217BBOLT, BODY MOUNTING

main52217-04020×2iRZN161,171,VZN170..RCB,XTR200009

main52217-04030×2iVZN170..DCB200009

main90109-10124×2iRZN161,171,VZN160,170199501-200009

9008011377

main90080-11377

9020110012

main90201-10012

9020110099

main90201-10099

9020110100

main90201-10100

9020110123

main90201-10123

9044016007

main90440-16007

9090119019

main90901-19019

9418401001

main94184-01001

15 parts on this diagram · 1 diagram in section
