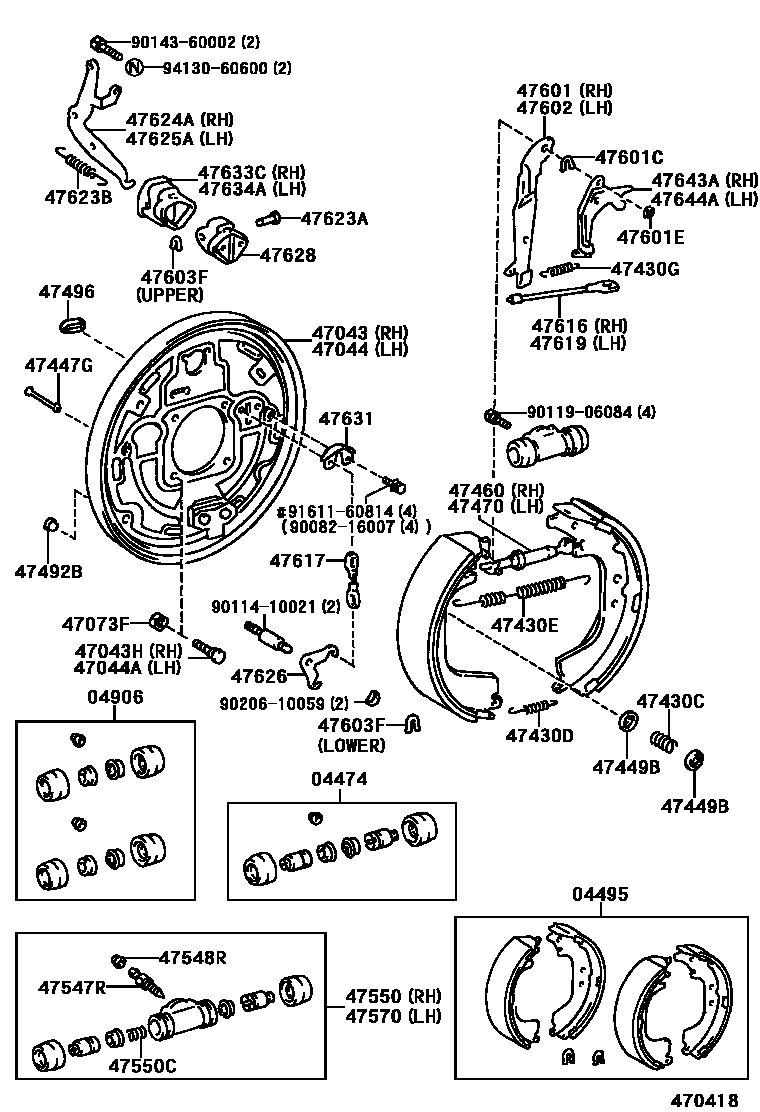

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-35080×2iRZN161,171,VZN170200009-200409

04495SHOE KIT, REAR BRAKE

main04495-35151iRZN161,171,VZN160,170199501-200009

MARK NBK LN508

main04495-35220iRZN161,171,VZN170200209-200409

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35100iRZN161,171,VZN160,170199501-200009

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35170iRZN161,171,VZN160,170199501-200009

main47043-35190iRZN161,171,VZN170200209-200409

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10002×3iRZN161,171,VZN160,170199501-200009

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35160iRZN161,171,VZN160,170199501-200009

main47044-35180iRZN161,171,VZN170200209-200409

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10002×3iRZN161,171,VZN160,170199501-200009

47073FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067×8iRZN161,171,VZN160,170199501-200009

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iRZN161,171,VZN160,170199501-200009

main90501-20604×4iRZN161,171,VZN170200209-200409

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031×2iRZN161,171,VZN160,170199501-200009

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iRZN161,171,VZN170200009

RH

main90506-26014iRZN161,171,VZN160,170199501-200009

LH

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031×2iRZN161,171,VZN160,170199501-200009

main90506-14081×2iRZN161,171,VZN170200209-200409

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020×4iRZN161,171,VZN160,170199501-200009

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iRZN161,171,VZN160,170199501-200009

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35030iRZN161,171,VZN170200209-200409

main47061-60011iRZN161,171,VZN160,170199501-200009

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-35030iRZN161,171,VZN170200209-200409

main47062-60011iRZN161,171,VZN170200009-200209

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iRZN161,171,VZN160,170199501-200009

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iRZN161,171,VZN160,170199501-200009

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iRZN161,171,VZN170200209-200409

main47547-60020×2iRZN161,171,VZN170200009-200209

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iRZN161,171,VZN160,170199501-200009

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-35190iRZN161,171,VZN160,170199501-200009

main47550-35280iRZN161,171,VZN170200209-200409

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60011×2iRZN161,171,VZN160,170199501-200009

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-35190iRZN161,171,VZN160,170199501-200009

main47550-35280iRZN161,171,VZN170200209-200409

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iRZN161,171,VZN160,170199501-200009

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iRZN161,171,VZN170200009-200409

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500×2iRZN161,171,VZN160,170199501-200009

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-35040iRZN161,171,VZN160,170199501-200009

47603FWASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)

main90213-06013×2iRZN161,171,VZN160,170199501-200009

UPPER

main90213-07010×2iRZN161,171,VZN160,170199501-200009

LOWER

47616WIRE, PARKING BRAKE, RH

main47616-35020iRZN161,171,VZN160,170199501-200009

main47616-35030iRZN161,171,VZN170200209-200409

47617WIRE, PARKING BRAKE, NO.2

main46361-35100×2iRZN161,171,VZN170199708-200009

main47617-35010×2iRZN161,171,VZN160,170199501-199708

47619WIRE, PARKING BRAKE, LH

main47616-35020iRZN161,171,VZN160,170199501-200009

main47616-35030iRZN161,171,VZN170200209-200409

47623APIN(FOR PARKING BRAKE BELL CRANK)

main90249-08068×2iRZN161,171,VZN170200009

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20033×2iRZN161,171,VZN170200009-200209

main90905-06016×2iRZN161,171,VZN170200209-200409

47624ACRANK, PARKING BRAKE BELL, RH

main47624-35040iRZN161,171,VZN160,170199501-200009

main47624-60030iRZN161,171,VZN170200209-200409

47625ACRANK, PARKING BRAKE BELL, LH

main47625-35040iRZN161,171,VZN160,170199501-200009

main47625-60030iRZN161,171,VZN170200209-200409

47626CRANK, PARKING BRAKE BELL, NO.3

main47626-35010×2iRZN161,171,VZN160,170199501-200009

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020×2iRZN161,171,VZN170200009

47631COVER, REAR BRAKE BELLCRANK DUST

main47631-35010×2iRZN161,171,VZN160,170199501-200009

47633CBOOT, REAR BRAKE BELLCRANK, RH

main47633-35020iRZN161,171,VZN170200009-200409

47634ABOOT, REAR BRAKE BELLCRANK, LH

main47633-35020iRZN161,171,VZN160,170199501-200009

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-35040iRZN161,171,VZN170200209-200409

main47643-60010iRZN161,171,VZN160,170199501-200009

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-35040iRZN161,171,VZN170200209-200409

main47644-60010iRZN161,171,VZN160,170199501-200009

9008216007

main90082-16007

9011410021

main90114-10021

9011906084

main90119-06084

9014360002

main90143-60002

9020610059

main90206-10059

9161160814

main91611-60814

9413060600

main94130-60600

49 parts on this diagram · 2 diagrams in section
