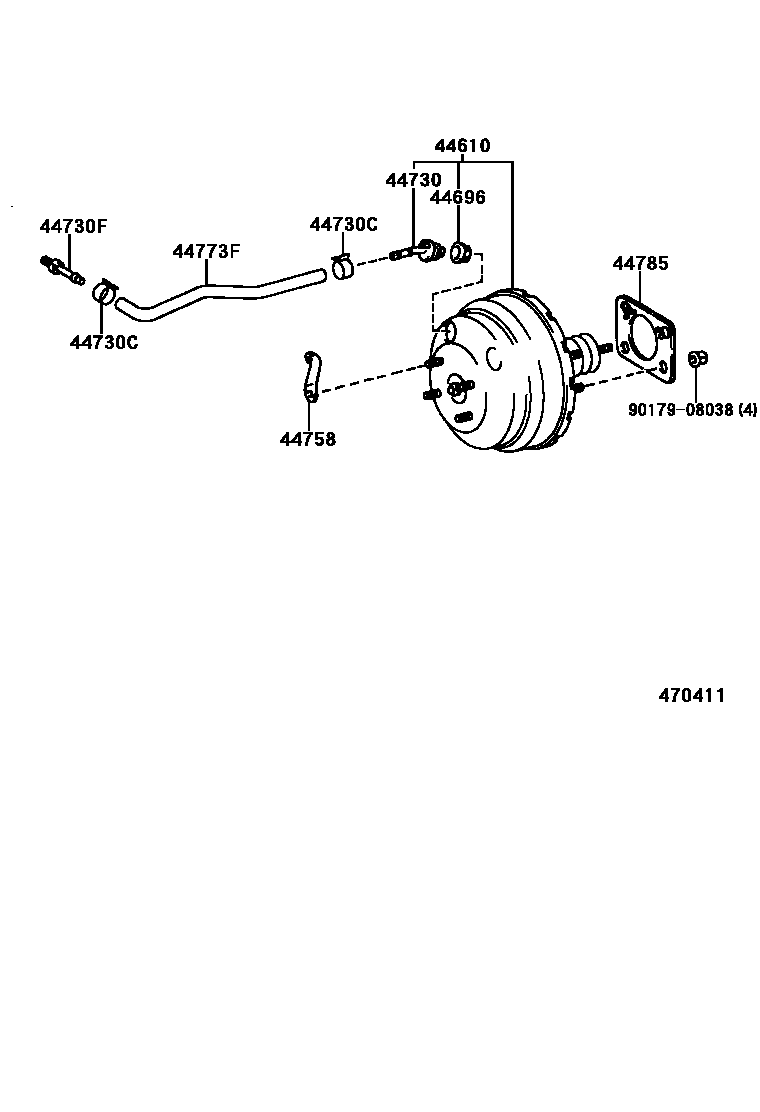

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1W(VSC)

44610BOOSTER ASSY, BRAKE

main44610-04050iRZN161,171,VZN160,170199501-200009

main44610-04060iRZN161,171,VZN160,170199501-200009

W(ABS)

main44610-04110iRZN161,171,VZN170200009-200209

main44610-04111iRZN161,171,VZN170200209

44696GROMMET, CHECK VALVE

main90480-24015iRZN161,171,VZN170199808-200009

main90480-24517iRZN161,171,VZN160,170199501-199808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30030iRZN161,171,VZN160,170199501-199808

main44730-30050iRZN161,171,VZN170199808-200009

44730CCLIP(FOR VACUUM HOSE)

main96134-51500×2iRZN161,171,VZN160,170199501-200009

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51237iVZN160,170199501-200009

main90404-51319iRZN161,171199501-200009

44758BRACKET, VACUUM CHECK VALVE

main44758-04010iRZN161,171,VZN170199808-200009

main44758-35110iRZN161,171,VZN160,170199501-199808

main44758-35120iRZN161,171,VZN170200009

44773FHOSE, UNION TO CHECK VALVE

main44773-04020iRZN161,171,VZN170200009

main44773-35550iRZN161,171199501-200009

main44773-35560iVZN160,170199501-200009

44785GASKET, BRAKE BOOSTER

main44785-35030iRZN161,171,VZN160,170199501-200009

9017908038

main90179-08038

9 parts on this diagram · 4 diagrams in section
