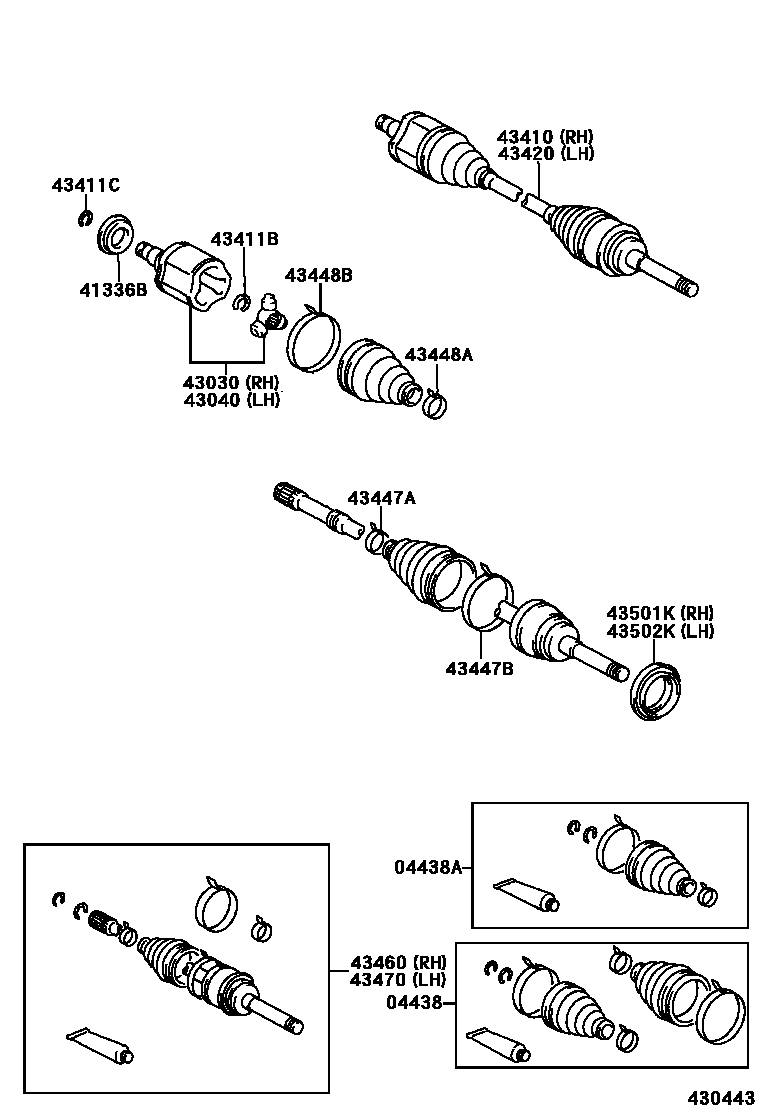

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-04020×2iRZN161,171,VZN160,170199501-199902

main04438-04021×2iRZN161,171,VZN170199902-200009

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-04010×2iRZN161,171,VZN160,170199501-199902

main04438-04011×2iRZN161,171,VZN170199902-200009

41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)

main41336-04010×2iRZN161,171,VZN160,170199501-200009

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-04010iRZN161,171,VZN160,170199501-200009

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-04010iRZN161,171,VZN160,170199501-200009

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-04010iRZN161,171,VZN160,170..DLX199501-200009

main43430-04020iRZN161,171,VZN160,170..DLX; VZN170..SR5199501-200009

W(A.D.D)

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main43425-04010×2iRZN161,171,VZN160,170199501-200009

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main43425-04020×2iRZN161,171,VZN160,170199501-200009

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-04010iRZN161,171,VZN160,170..DLX199501-200009

main43430-04020iRZN161,171,VZN170..RCB,XTR; VZN170..DCB200009

W(A.D.D)

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-04030×2iRZN161,171,VZN170200009

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-04040×2iRZN161,171,VZN160,170199501-200009

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-04020×2iRZN161,171,VZN160,170199501-200009

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-04010×2iRZN161,171,VZN170200009

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09090iRZN161,171,VZN160,170..DLX199501-199902

main43460-09091iRZN161,171,VZN170..DLX199902-200009

main43460-09100iRZN161,171,VZN160,170..DLX; VZN170..SR5199501-199902

W(A.D.D)

main43460-09101iRZN161,171,VZN170199902-200009

W(A.D.D)

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09090iRZN161,171,VZN160,170..DLX199501-199902

main43460-09091iRZN161,171,VZN170..DLX199902-200009

main43460-09100iRZN161,171,VZN160,170..DLX; VZN170..SR5199501-199902

W(A.D.D)

main43460-09101iRZN161,171,VZN170199902-200009

W(A.D.D)

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90080-30028iRZN161,171,VZN160,170199501-200009

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90080-30028iRZN161,171,VZN160,170199501-200009

17 parts on this diagram · 1 diagram in section
