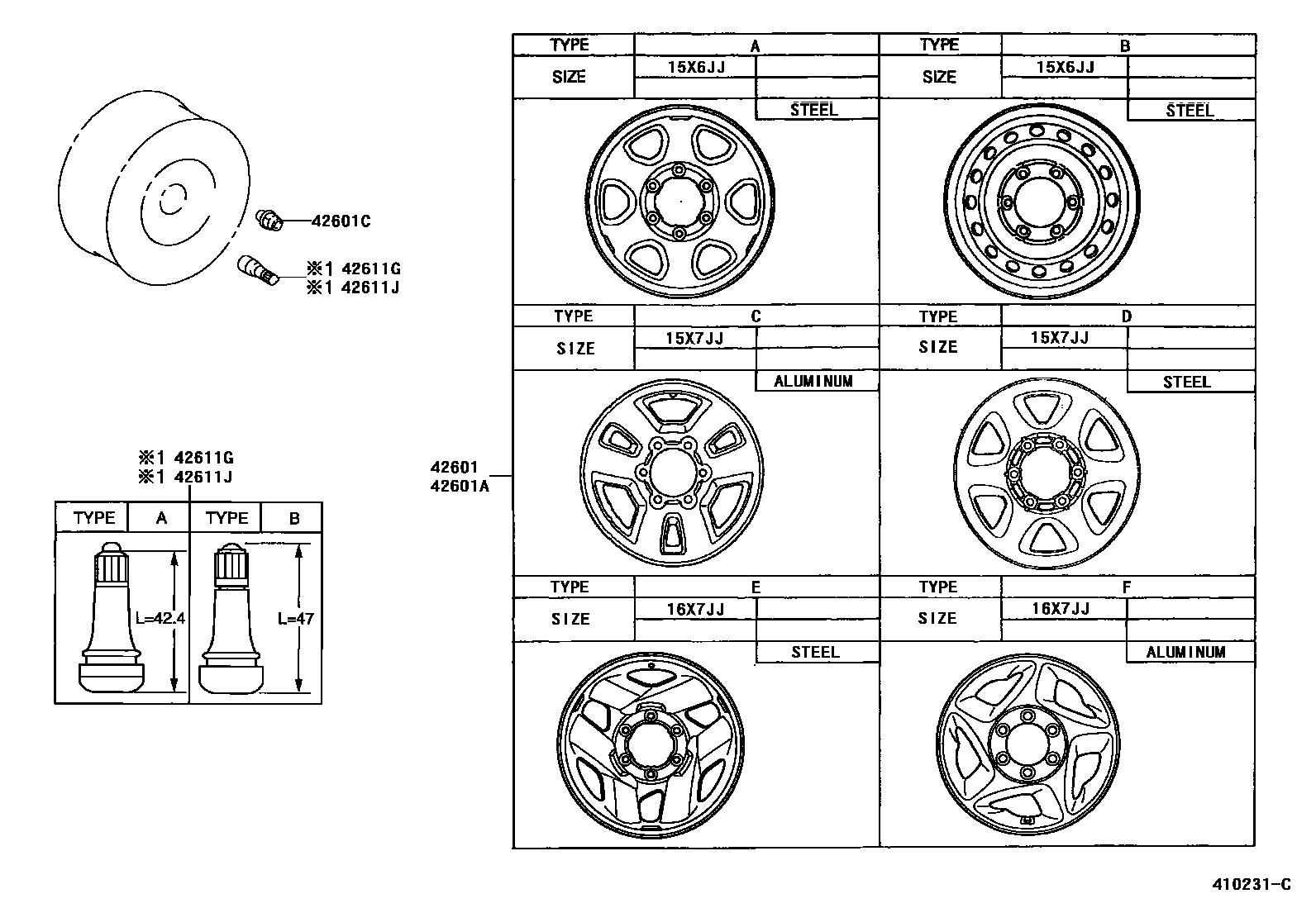

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42601-04110×4iRZN161,171,VZN160,170..DLX199501-200009

15X6JJ,TYPE A:REFER TO ILLUSTRATION

main42601-04190×4iRZN161,171,VZN170200009

16X7JJ,TYPE E:REFER TO ILLUSTRATION

main42601-04200×4iRZN161,171,VZN170200009

16X7JJ,TYPE E:REFER TO ILLUSTRATION, CHROME PLATED WHEEL

main42601-0W020×4iRZN161,171,VZN170200009

15X7JJ,#,TYPE D:REFER TO ILLUSTRATION

main42611-04040×4iRZN161,171,VZN160,170199501-199609

15X7JJ,#,TYPE C:REFER TO ILLUSTRATION

main42611-04041×4iRZN161,171,VZN160,170199609-200009

15X7JJ,#,TYPE C:REFER TO ILLUSTRATION

main42611-0C020×4iRZN161,171,VZN170200009

16X7JJ,OFFSET 15,TYPE F:REFER TO ILLUSTRATION

main42611-0C030×4iRZN161,171,VZN170200309

16X7JJ,OFFSET 15,TYPE H:REFER TO ILLUSTRATION

main42611-35170×4iRZN161,171200309

16X7JJ,TYPE H:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42601-04120iRZN161,171,VZN160,170..DLX199501-200009

15X6JJ,TYPE B:REFER TO ILLUSTRATION

main42601-04130iRZN161,171,VZN160,170199501-199809

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION

main42601-0C010iRZN161,171,VZN170200009

16X7JJ,OFFSET 15,TYPE G:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01058×24iRZN161,171,VZN170200009

W(ALUMINUM WHEEL)

main90942-01075×24iRZN161,171,VZN160,170..DLX199501-200009

main90942-01077×24iRZN161,171,VZN160,170..DLX; VZN170..SR5199501-200009

W(ALUMINUM WHEEL)

main90942-01104×24iRZN161,171,VZN170200009

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4iRZN161,171,VZN160,170199501-200009

main90080-45006×4iRZN161,171,VZN170200307

TYPE B:REFER TO ILLUSTRATION

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001iRZN161,171,VZN160,170199501-200009

main90080-45006iRZN161,171,VZN170200307

TYPE B:REFER TO ILLUSTRATION

5 parts on this diagram · 3 diagrams in section
