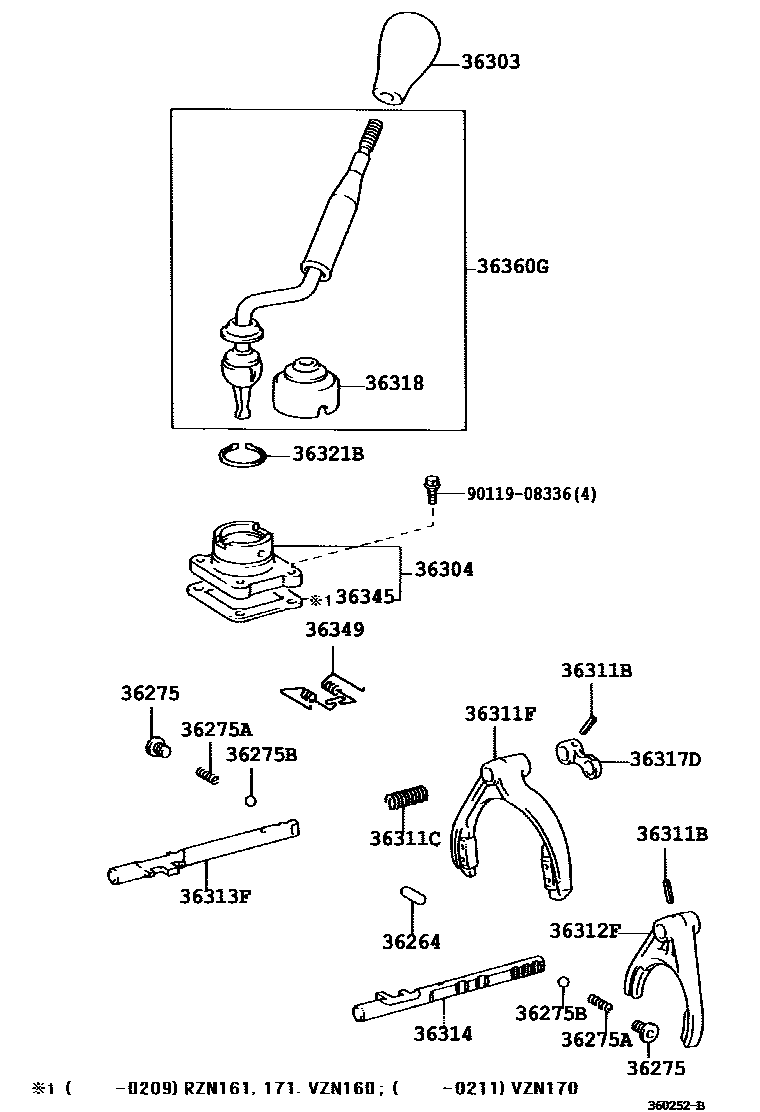

TRANSFER LEVER & SHIFT ROD
36264PIN OR ROLLER, SHIFT INTER-LOCK
L=25.7,OD=9.53
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=23; L=23,W(2-4 SELECTOR)
36275BBALL, SHIFT DETENT
OD=9.52,STEEL,W(2-4 SELECTOR)
36303KNOB SUB-ASSY, SHIFT LEVER
BLUISH GRAY,TRIM1#
MD.MOON MIST,TRIM1#
DK.CHARCOAL,TRIM1#
OAK,TRIM4#
W(2-4 SELECTOR),BLUISH GRAY,TRIM1#
W(2-4 SELECTOR),MD.MOON MIST,TRIM1#
W(2-4 SELECTOR),DK.CHARCOAL,TRIM1#
W(2-4 SELECTOR),OAK,TRIM4#
36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
W(*66 & *ADD); W(*66 & *DL); W(*66)
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=22
36311CSPRING, COMPRESION (FOR SHIFT FORK)
36311FFORK, TRANSFER GEAR SHIFT, NO.1
W(*ADD)
W(2-4 SELECTOR)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
W(2-4 SELECTOR)
36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36349SPRING, TRANSFER SELECT RETURN
36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT
W(2-4 SELECTOR)
W(2-4 SELECTOR)
W(2-4 SELECTOR)
W(2-4 SELECTOR)
9011908336
main90119-08336
19 parts on this diagram · 3 diagrams in section
