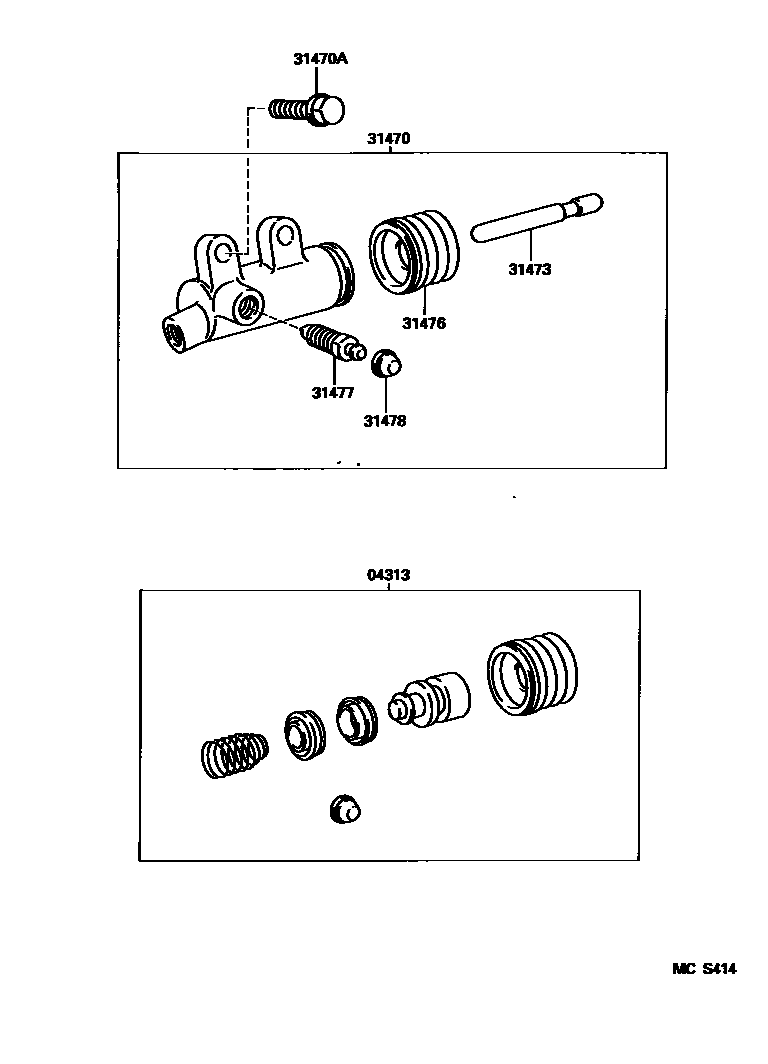

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iRZN161,171,VZN160,170..5F199501-200009

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35120iVZN170..R200009-200409

main31470-35130iRZN161,171..W200009-200409

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825×2iRZN161,171..W200009-200409

*8-1.25PX25-25

main91611-60825×2iRZN161,171..W199501-200009

*8-1.25PX25-25

main91611-G0820×2iVZN160,170..R199501-200009

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iRZN161,171..W199501-200009

main31473-35050iVZN160,170..R199501-200009

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRZN161,171,VZN160,170..5F199501-200009

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRZN161,171,VZN160,170..5F199501-200009

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRZN161,171,VZN160,170..5F199501-200009

7 parts on this diagram · 1 diagram in section
