TIMING GEAR COVER & REAR END PLATE

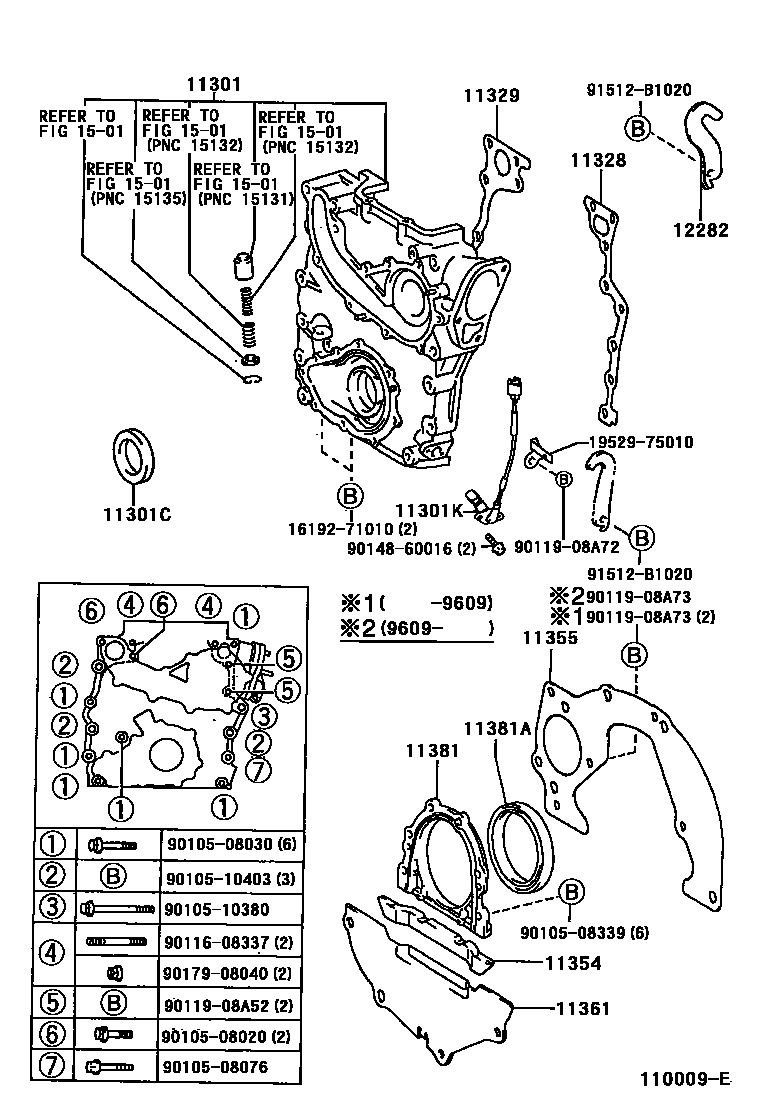

Parts diagram

11301CASE SUB-ASSY, TIMING GEAR

main11301-75020i199501-199704

main11301-75021i199704-200009

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-48014i199501-200009

main90311-48020i200009-200212

NOK

main90311-48021i200009-200212

KOYO

11301KSENSOR, CRANK POSITION

main90919-05016i199501-200009

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-75020i199501-199904

main11328-75021i199904-200009

11329GASKET, TIMING GEAR REAR COVER

main11329-75020i199501-199904

main11329-75021i199904-200009

11354SEAL, FLYWHEEL HOUSING DUST

main11354-75010i199501-200009

11355PLATE, REAR END

main11355-65011i199501-200009

main11355-75010i200009-200409

11361COVER, FLYWHEEL HOUSING UNDER

main11361-0C010i200009

main11361-62010i199501-200009

11381RETAINER, ENGINE REAR OIL SEAL

main11381-62010i200009-200409

main11381-75010i199501-200009

11381ASEAL, ENGINE REAR OIL

main90311-88003i199501-200009

main90311-88004i200009-200212

ARS

main90311-88005i200212

main90311-92006i200009-200409

12282HANGER, ENGINE, NO.2

main12282-62050i200009-200209

main12282-62070i199501-200009

main12282-75020i199501-200009

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1619271010

main16192-71010

1952975010CLAMP

main19529-75010

9010508020

main90105-08020

9010508030

main90105-08030

9010508076

main90105-08076

9010508339

main90105-08339

9010510380

main90105-10380

9010510403

main90105-10403

9011608337

main90116-08337

9011908A52

main90119-08A52

9011908A72

main90119-08A72

9011908A73

main90119-08A73

9014860016

main90148-60016

9017908040

main90179-08040

91512B1020

main91512-B1020

27 parts on this diagram · 2 diagrams in section
