ENGINE OVERHAUL GASKET KIT

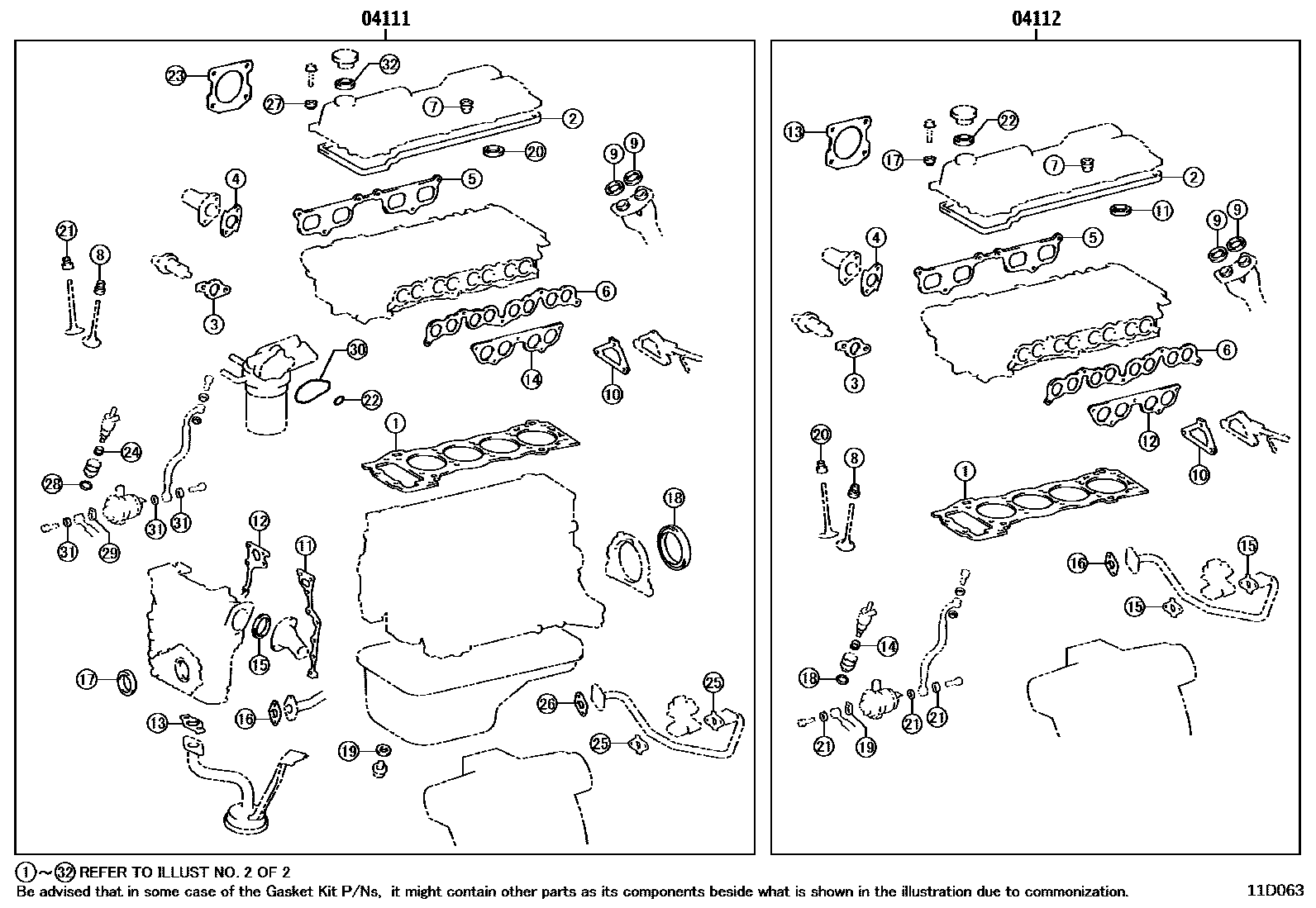

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-62080i199501-199608

main04111-62081i199608-199901

main04111-62130i199901-200009

main04111-62180i200009-200404

main04111-62250i200404

main04111-75100i199501-199903

main04111-75101i199903-200009

main04111-75190i199909-200009

CALIFORNIA(LEV) SPEC

main04111-75191i200009-200404

main04111-75470i200404-200409

04112GASKET KIT, ENGINE VALVE GRIND

main04112-62070i199501-199608

main04112-62071i199608-199901

main04112-62110i199901-200009

main04112-62150i200009-200404

main04112-62220i200404

main04112-75100i199501-199903

main04112-75101i199903-200009

main04112-75190i199909-200009

CALIFORNIA(LEV) SPEC

main04112-75450i200404-200409

2 parts on this diagram · 16 diagrams in section
