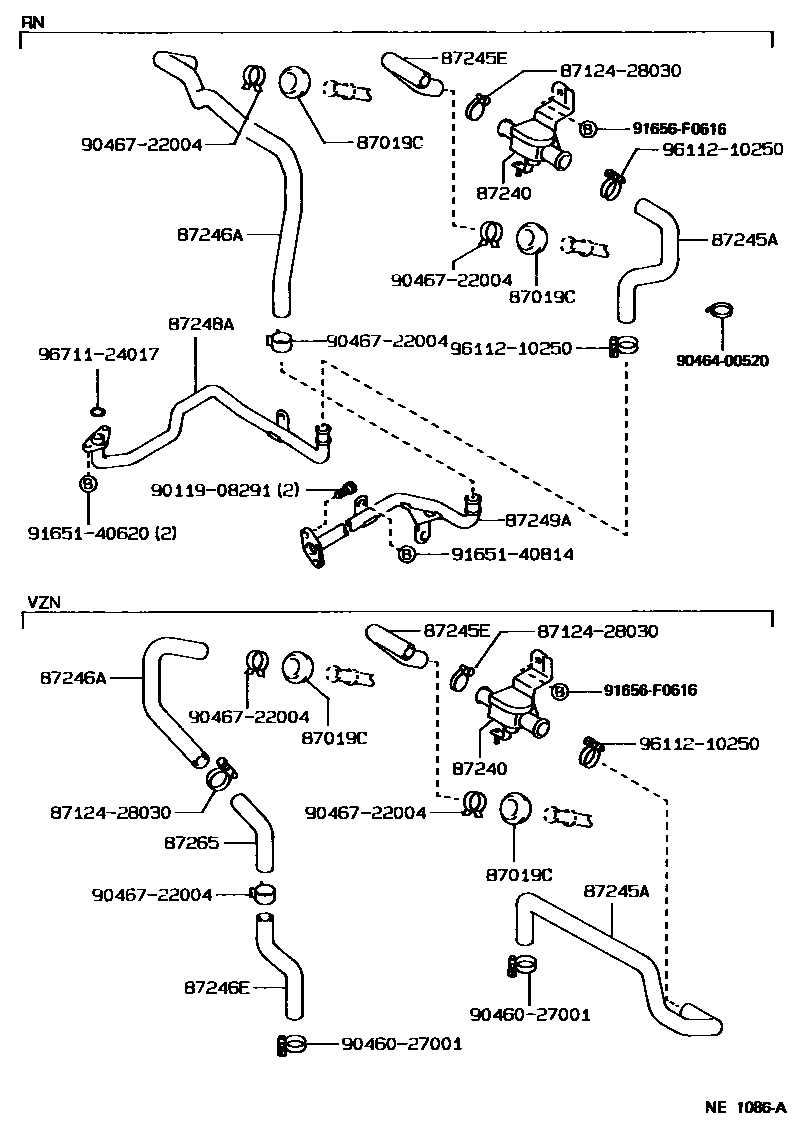

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-36005×2iRN101,110,VZN100,110199202-199501

87240VALVE ASSY, HEATER WATER

main87240-04010iRN101,110,VZN100,110199202-199501

87245AHOSE, HEATER WATER, INLET A

main87245-04080iRN101,110199202-199501

main87245-35040iVZN100,110199202-199501

87245EHOSE, HEATER WATER, INLET E

main87245-04100iRN101,110,VZN100,110199202-199501

87246AHOSE, HEATER WATER, OUTLET A

main87245-04090iRN101,110199202-199501

main87245-35100iVZN100,110199202-199501

87246EHOSE, HEATER WATER, OUTLET E

main87245-35090iVZN100,110199202-199501

87248APIPE, HEATER WATER INLET, A

main87208-35170iRN101,110199202-199501

87249APIPE, HEATER WATER OUTLET, A

main87208-35130iRN101,110199202-199501

87265CONNECTOR, HEATER WATER HOSE

main87265-35030iVZN100199202-199303

main87265-35180iVZN100,110199303-199501

8712428030CLAMP, HEATER

main87124-28030

9011908291

main90119-08291

9046027001

main90460-27001

9046400520

main90464-00520

9046722004

main90467-22004

9165140620

main91651-40620

9165140814

main91651-40814

91656F0616

main91656-F0616

9611210250

main96112-10250

9671124017

main96711-24017

19 parts on this diagram · 1 diagram in section
