METER
83100BBULB, COMBINATION METER, NO.1
12V 1.7W
12V 3.4W,GREEN CAP
12V 3.4W W(RED CAP),W(TRIPMETER & TACHOMETER)
12V 1.4W W(RED CAP),W(TRIPMETER & TACHOMETER)
12V 3.4W,W(SOCKET); 12V 3.4W,W(SOCKET),W(TRIPMETER & TACHOMETER)
12V 1.4W,W(SOCKET); 12V 1.4W,W(SOCKET),W(TRIPMETER & TACHOMETER)
12V 1.7W,W(SOCKET)
12V 1.2W W/O SOCKET
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 1.4W BULB
12V 3.4W BULB
83110SPEEDOMETER ASSY
W(TACHO METER & TRIP METER)
YAZAKI
W(TRIP METER),YAZAKI
83132CASE, COMBINATION METER
VDO-YAZAKI
W(TACHO METER & TRIP METER)
83138GLASS, SPEEDOMETER
W(TRIP METER),VDO-YAZAKI
W(TACHO METER & TRIP METER)
YAZAKI
W(TRIP METER)
83145LENS, METER, NO.1
VDO-YAZAKI
W(TACHO METER & TRIP METER)
YAZAKI
83145ALENS, METER, NO.2
VDO-YAZAKI
W(TACHO METER & TRIP METER)
YAZAKI
83145BLENS, METER, NO.3
W(TACHO METER & TRIP METER)
83145CLENS, METER, NO.4
W(TACHO METER & TRIP METER)
83243AGAUGE SUB-ASSY, FUEL RECEIVER
W(TACHO METER & TRIP METER)
YAZAKI
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
VDO-YAZAKI
W(TACHO METER & TRIP METER)
YAZAKI
83247PLATE, METER CIRCUIT
W(TACHO METER & TRIP METER)
W(TACHO METER & TRIP METER)
8316120080CASE, COMBINATION METER MIRROR, NO.1
main83161-20080
8316120100CASE, COMBINATION METER MIRROR, NO.1
main83161-20100
8316120380CASE, COMBINATION METER MIRROR, NO.1
main83161-20380
9016750028
main90167-50028

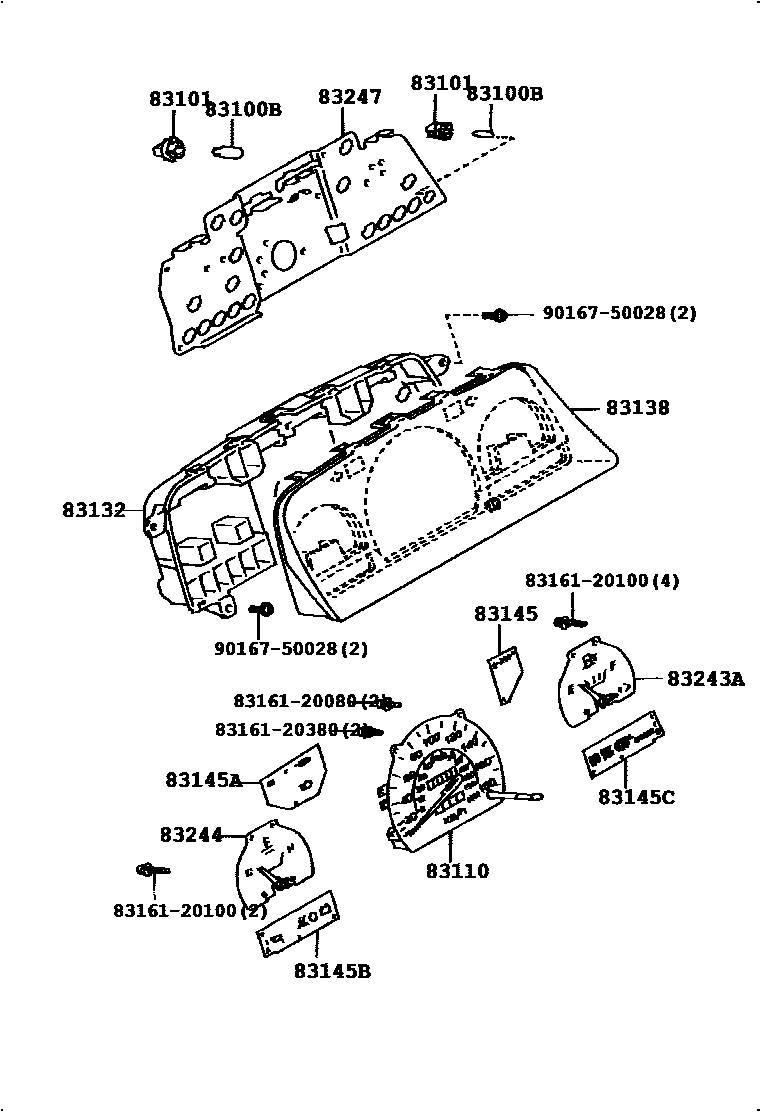

16 parts on this diagram · 3 diagrams in section
