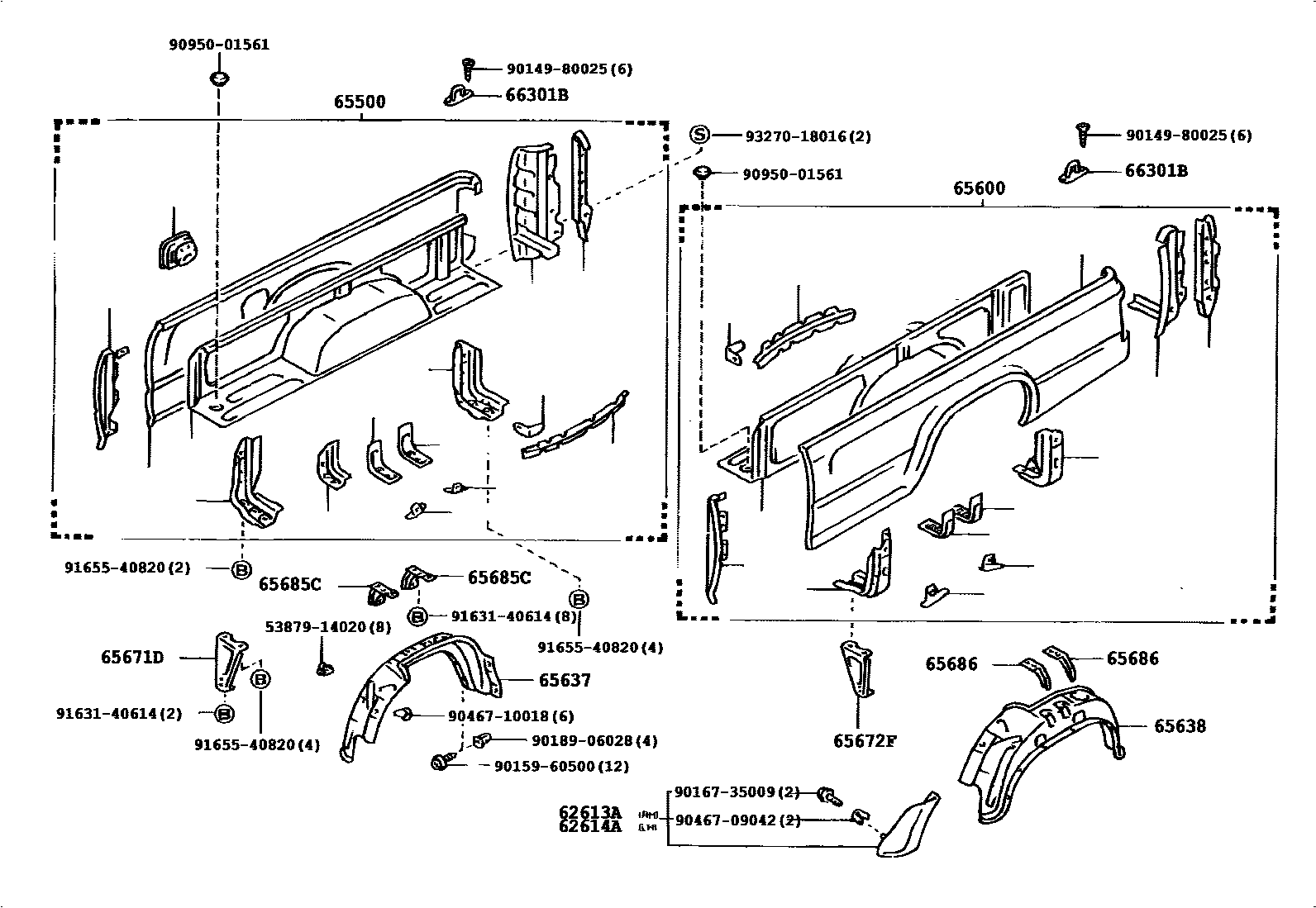

REAR BODY SIDE PANEL

62613ACOVER, QUARTER WHEEL HOUSE, RH

main62613-89106-A0iRN101,110,VZN100,110199202-199501

WHITE,045

main62613-89106-C0iRN101,110,VZN100,110199309-199501

BLACK,179 ,196 ,202 ,751 ,8E3 ,8H8

main62613-89108-D0iRN101,110,VZN100,110199202-199501

RED,3H7

main62613-89108-D1iRN101,110,VZN100,110199202-199501

RED MICA,3K3

62614ACOVER, QUARTER WHEEL HOUSE, LH

main62614-89106-A0iRN101,110,VZN100,110199202-199501

WHITE,045

main62614-89106-C0iRN101,110,VZN100,110199309-199501

BLACK,179 ,196 ,202 ,751 ,8E3 ,8H8

main62614-89108-D0iRN101,110,VZN100,110199202-199501

RED,3H7

main62614-89108-D1iRN101,110,VZN100,110199202-199501

RED MICA,3K3

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89376iRN101,110,VZN100,110199202-199501

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89316iRN101,110,VZN100,110199202-199501

65637LINER, REAR WHEEL HOUSE, RH

main65637-04010iRN101,110,VZN100,110199202-199501

(L)

main65637-89102iRN101,VZN100199202-199303

(J)

65638LINER, REAR WHEEL HOUSE, LH

main65638-04010iRN101,110,VZN100,110199202-199501

(L)

main65638-89102iRN101,VZN100199202-199303

(J)

65671DBRACE, SIDE PANEL SKIRT, FRONT RH

main65671-89107iRN101,110,VZN100,110199202-199501

65672FBRACE, SIDE PANEL SKIRT, FRONT LH

main65672-89102iRN101,110,VZN100,110199202-199501

65685CBRACE, WHEEL HOUSE, RH

main65685-89101×2iRN101,110,VZN100,110199202-199501

65686BRACE, WHEEL HOUSE, LH

main65686-89101×2iRN101,110,VZN100,110199202-199501

66301BHOOK SUB-ASSY, ROPE

main66301-89102×6iRN101,VZN100199202-199209

main66312-35010×6iRN101,110,VZN100,110199209-199501

5387914020LINER, FRONT FENDER, LH

main53879-14020

9014980025

main90149-80025

9015960500

main90159-60500

9016735009

main90167-35009

9018906028

main90189-06028

9046709042

main90467-09042

9046710018

main90467-10018

9095001561

main90950-01561

9163140614

main91631-40614

9165540820

main91655-40820

9327018016

main93270-18016

22 parts on this diagram · 1 diagram in section
