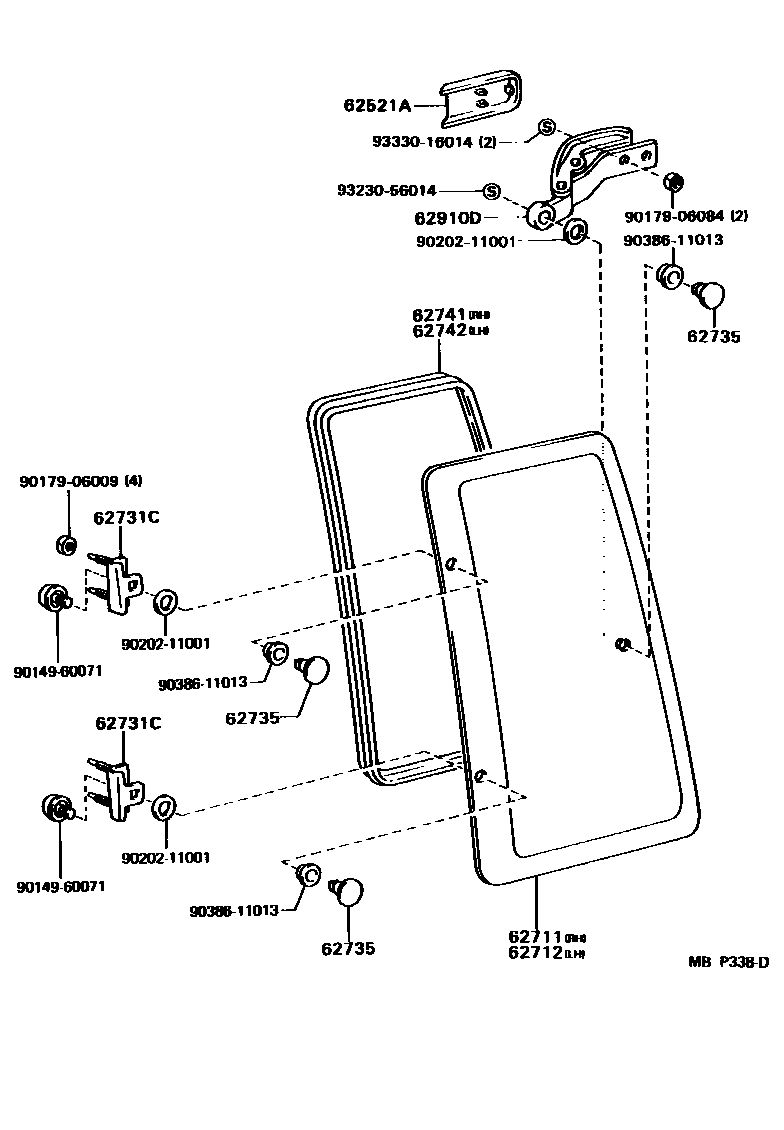

SIDE WINDOW

62521ACOVER, QUARTER TRIM

main62521-89102-R9×2iRN110,VZN110199303-199501

BLUE,TRIM8#

main62521-89102-S4×2iRN110,VZN110199303-199501

GRAY,TRIM1#

62711GLASS, QUARTER WINDOW, RH

main62711-04010iRN110,VZN110199303-199501

*TT,T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-04010iRN110,VZN110199303-199501

*TT,T=4.0

62731CHINGE, QUARTER WINDOW, RH

main62731-89101×2iRN110,VZN110199303-199501

RH

main62731-89102×2iRN110,VZN110199303-199501

LH

62735RETAINER, QUARTER WINDOW HINGE

main62735-89102×2iRN110,VZN110199303-199501

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-89102iRN110,VZN110199303-199501

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-89103iRN110,VZN110199303-199501

62910DLOCK ASSY, QUARTER WINDOW

main62910-89102-R9×2iRN110,VZN110199303-199501

BLUE,TRIM8#

main62910-89102-S4×2iRN110,VZN110199303-199501

GRAY,TRIM1#

9014960071

main90149-60071

9017906009

main90179-06009

9017906084

main90179-06084

9020211001

main90202-11001

9038611013

main90386-11013

9323056014

main93230-56014

9333016014

main93330-16014

15 parts on this diagram · 1 diagram in section
