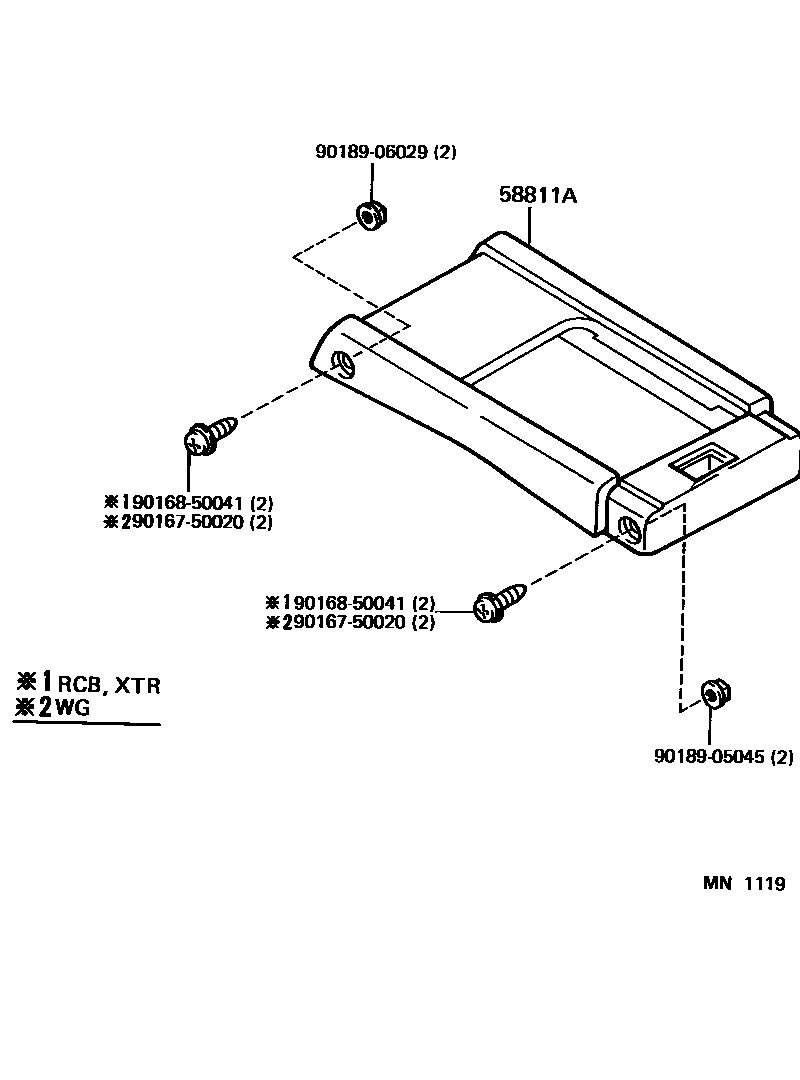

CONSOLE BOX & BRACKET

0001 1 0002 1

58811ABOX, CONSOLE, FRONT

main58802-35030-B0iRN101..4FC199305-199501

GRAY,TRIM1#

main58802-35030-J0iRN101..4FC199305-199501

BLUE,TRIM8#

main58802-89118-B0iRN101..4FC199202-199305

MEDIUM GRAY,TRIM1#

main58802-89118-J0iRN101..4FC199202-199305

MEDIUM BLUE,TRIM8#

main58811-89121-R9iVZN110..4FC199303-199501

BLUE,TRIM8#

main58811-89121-S4iVZN110..4FC199303-199501

GRAY,TRIM1#

9016750020

main90167-50020

9016850041

main90168-50041

9018905045

main90189-05045

9018906029

main90189-06029

5 parts on this diagram · 2 diagrams in section
