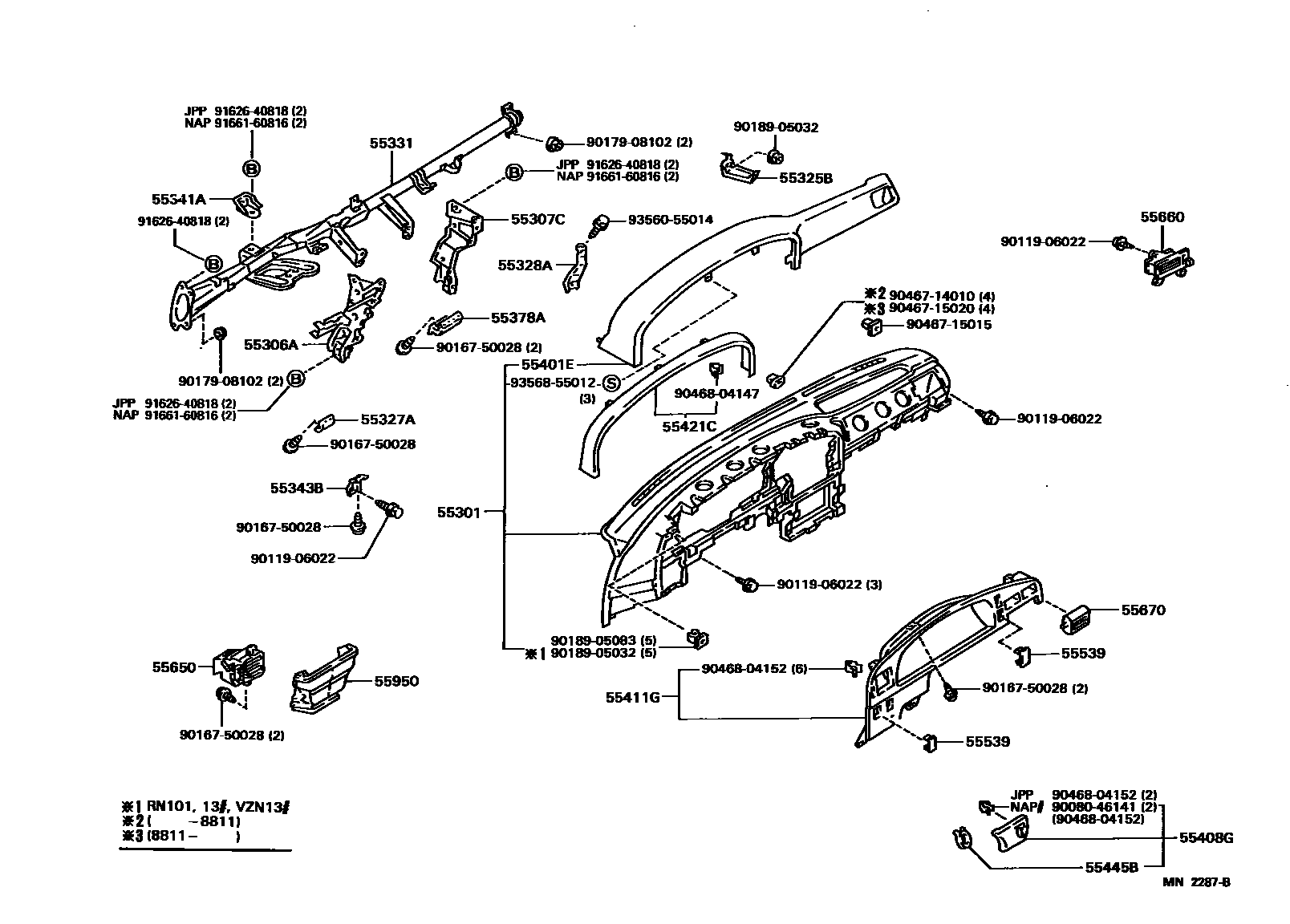

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-04010-B0iRN101,110,VZN100,110199309-199501

MEDIUM GRAY,TRIM1#

main55301-04010-J0iRN101,110,VZN100,110199309-199501

MEDIUM BLUE,TRIM8#

main55301-35010-B0iRN101,VZN100199202-199203

GRAY,TRIM1#

main55301-35010-J0iRN101,VZN100199202-199203

BLUE,TRIM8#

main55301-89120-B0iRN110,VZN110199303-199309

MEDIUM GRAY,TRIM1#

main55301-89120-J0iRN110,VZN110199303-199309

MEDIUM BLUE,TRIM8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-04010iRN101,110,VZN100,110199309-199501

main55306-35010iRN101,VZN100199202-199203

(J)

main55306-89105iRN110,VZN110199303-199309

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-04010iRN101,110,VZN100,110199309-199501

main55307-35010iRN101,VZN100199202-199203

(J)

main55307-89107iRN110,VZN110199303-199309

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-35020iRN101,VZN100199202-199203

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-04010iRN101,VZN100199202-199309

(L)

main55327-89104iRN101,VZN100199202-199203

(J)

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-35020iRN101,110,VZN100,110199309-199501

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-04010iRN101,VZN100199202-199309

(L)

main55330-04020iRN110,VZN110199303-199309

main55330-35020iRN101,VZN100199202-199203

(J)

55341ABRACE, INSTRUMENT PANEL TO COWL, UPPER

main55341-04010iRN101,110,VZN100,110199202-199501

(L)

main55341-89103iRN101,VZN100199202-199203

(J)

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-04010iRN101,110,VZN100,110199202-199501

(L)

main55343-89101iRN101,VZN100199202-199203

(J)

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-04010iRN101,VZN100199202-199309

(L)

main55378-89102iRN101,VZN100199202-199203

(J)

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-89122-B0iRN110,VZN110199303-199309

MEDIUM GRAY,TRIM1#

main55401-89122-J0iRN110,VZN110199303-199309

MEDIUM BLUE,TRIM8#

55408GBEZEL SUB-ASSY, STARTER SWITCH

main55408-04010iRN101,110,VZN100,110..5F199203-199501

main55408-04030iRN101,VZN110..4FC199202-199501

(L)

main55408-89101iRN101,VZN100..5F199202-199203

main55408-89103iRN101..4FC199202-199203

(J)

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-04010iRN101,VZN100199202-199309

(L)

main55411-35040iRN101,VZN100199202-199203

(J)

main55411-89109iRN110,VZN110199303-199309

55421CHOOD, METER

main55421-04010-B0iRN101,VZN100199202-199309

MEDIUM GRAY,TRIM1#,(L)

main55421-04010-J0iRN101,VZN100199202-199309

MEDIUM BLUE,TRIM8#,(L)

main55421-89108-B0iRN101,VZN100199202-199203

MEDIUM GRAY,TRIM1#,(J)

main55421-89108-J0iRN101,VZN100199202-199203

MEDIUM BLUE,TRIM8#,(J)

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-04010iRN101,110,VZN100,110..5F199203-199501

main55445-04020iRN101,VZN110..4FC199202-199501

(L)

main55445-89103iRN101,VZN100..5F199202-199203

main55445-89104iRN101..4FC199202-199203

(J)

55539COVER, SPARE SWITCH HOLE

main55539-04020iRN101,110,VZN100,110199202-199501

(L)

main55539-89105iRN101,VZN100199202-199203

(J)

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-04010iRN101,110,VZN100,110199202-199501

(L)

main55650-89112iRN101,VZN100199202-199203

(J)

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-04010-B0iRN101,110,VZN100,110199202-199501

MEDIUM GRAY,TRIM1#,(L)

main55660-04010-J0iRN101,110,VZN100,110199202-199501

MEDIUM BLUE,TRIM8#,(L)

main55660-89107-B0iRN101,VZN100199202-199203

MEDIUM GRAY,TRIM1#,(J)

main55660-89107-J0iRN101,VZN100199202-199203

MEDIUM BLUE,TRIM8#,(J)

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-04010×2iRN101,110,VZN100,110199309-199501

main55670-89115×2iRN101,VZN100199202-199203

(J)

55950NOZZLE ASSY, DEFROSTER

main55950-04010iRN101,VZN100199202-199304

(L)

main55950-89108iRN101,VZN100199202-199203

(J)

9008046141

main90080-46141

9011906022

main90119-06022

9016750028

main90167-50028

9017908102

main90179-08102

9018905032

main90189-05032

9018905083

main90189-05083

9046714010

main90467-14010

9046715015

main90467-15015

9046715020

main90467-15020

9046804147

main90468-04147

9046804152

main90468-04152

9162640818

main91626-40818

9166160816

main91661-60816

9356055014

main93560-55014

9356855012

main93568-55012

35 parts on this diagram · 4 diagrams in section
