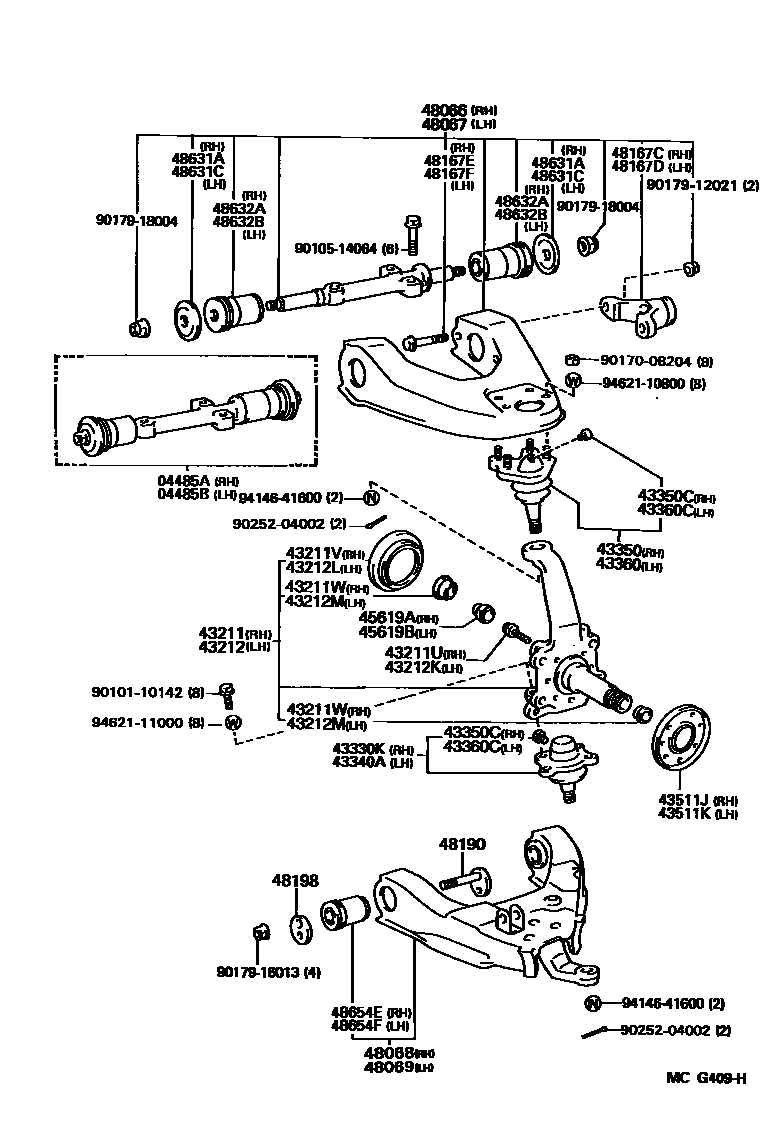

FRONT AXLE ARM & STEERING KNUCKLE
04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH
04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH
43211KNUCKLE, STEERING, RH
43211UBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE RH)
43211VSEAL, OIL (FOR STEERING KNUCKLE RH)
43211WBUSH (FOR STEERING KNUCKLE RH)
INNER
43212KNUCKLE, STEERING, LH
43212KBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE LH)
43212LSEAL, OIL (FOR STEERING KNUCKLE LH)
43212MBUSH (FOR STEERING KNUCKLE LH)
INNER
43330KJOINT ASSY, LOWER BALL, FRONT RH
sub43330-39835
43340AJOINT ASSY, LOWER BALL, FRONT LH
43350JOINT ASSY, FRONT UPPER BALL, RH
43350CPLUG (FOR FRONT UPPER BALL JOINT RH)
43360JOINT ASSY, FRONT UPPER BALL, LH
43360CPLUG (FOR FRONT UPPER BALL JOINT LH)
43511JSEAL, DUST(FOR FRONT AXLE HUB RH)
43511KSEAL, DUST(FOR FRONT AXLE HUB LH)
45619ACOVER, STEERING KNUCKLE STOPPER, RH
45619BCOVER, STEERING KNUCKLE STOPPER, LH
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48167CARM, FRONT SUSPENSION TORQUE, RH
48167DARM, FRONT SUSPENSION TORQUE, LH
48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)
48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
RR
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
RR
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
FR
RR
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
FR
RR
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
9010110142
main90101-10142
9010514064
main90105-14064
9017008204
main90170-08204
9017912021
main90179-12021
9017916013
main90179-16013
9017918004
main90179-18004
9025204002
main90252-04002
9414641600
main94146-41600
9462110800
main94621-10800
9462111000
main94621-11000
46 parts on this diagram · 1 diagram in section
